ABS Schematics

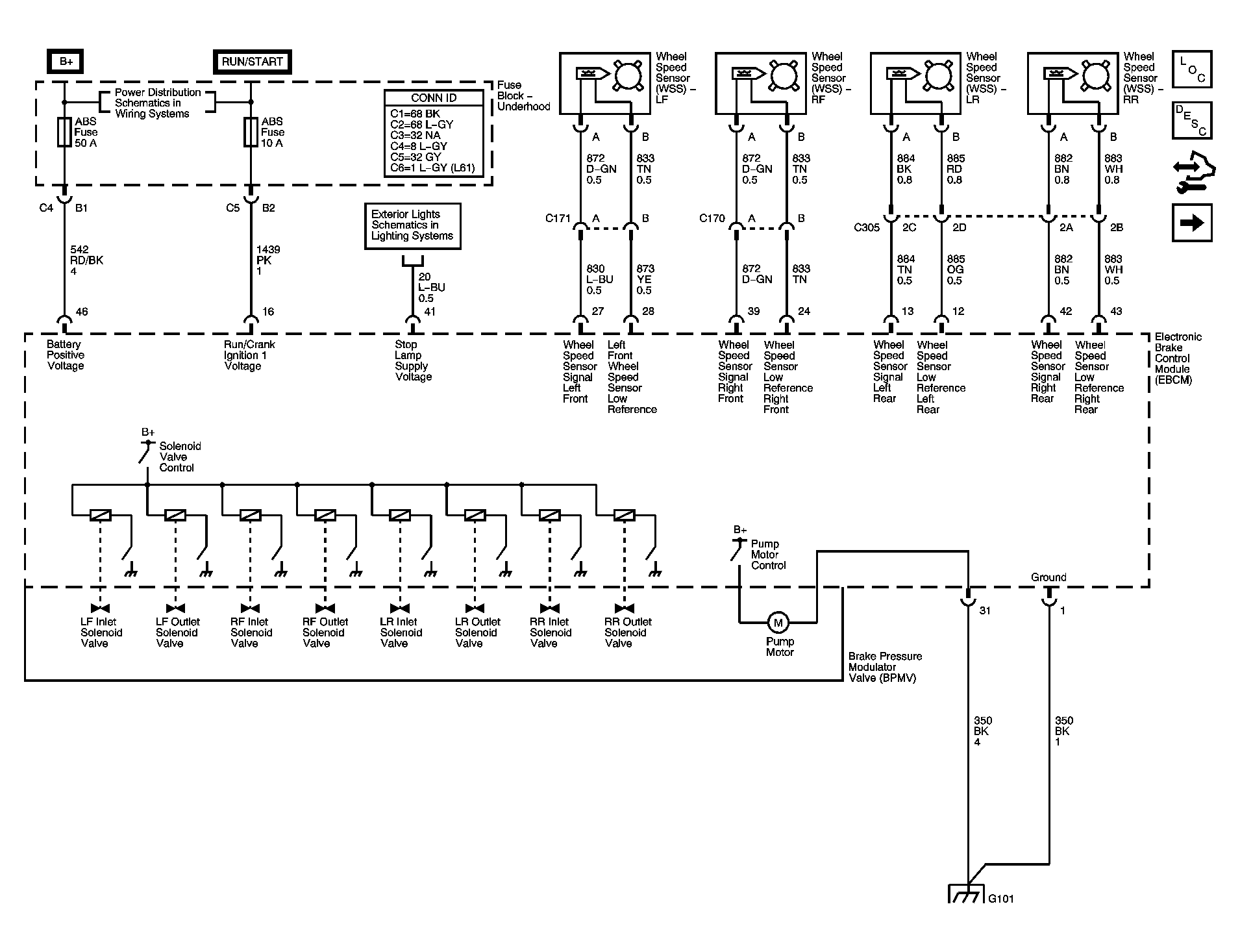

Fig 1: Power, Ground, and Wheel Speed Sensors Schematic

GM1515433

Courtesy of GENERAL MOTORS CORP.

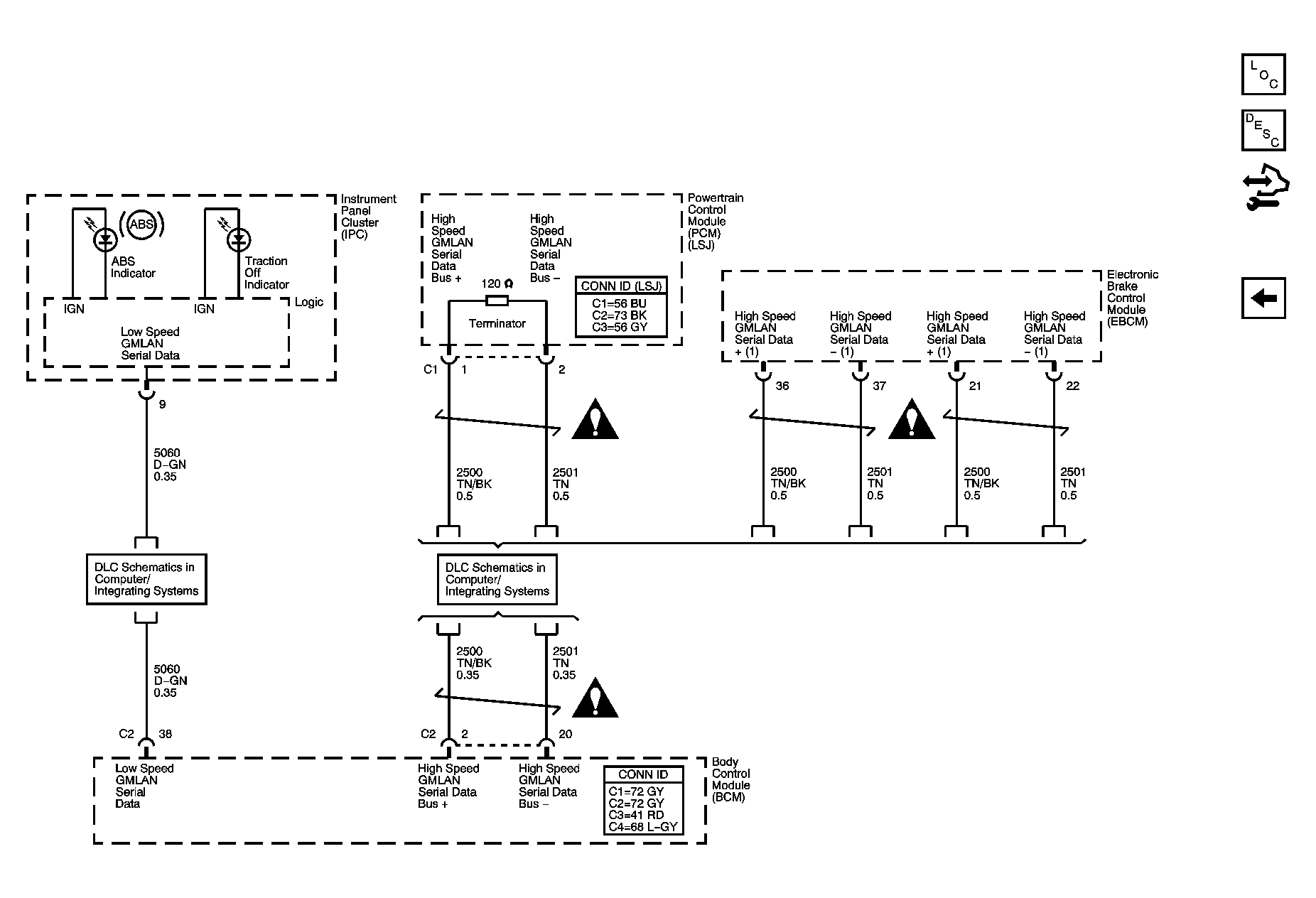

Fig 2: Data Link Communications Schematic

GM1515435

Courtesy of GENERAL MOTORS CORP.
