Chevrolet
>>
2005
>>
Cobalt SS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

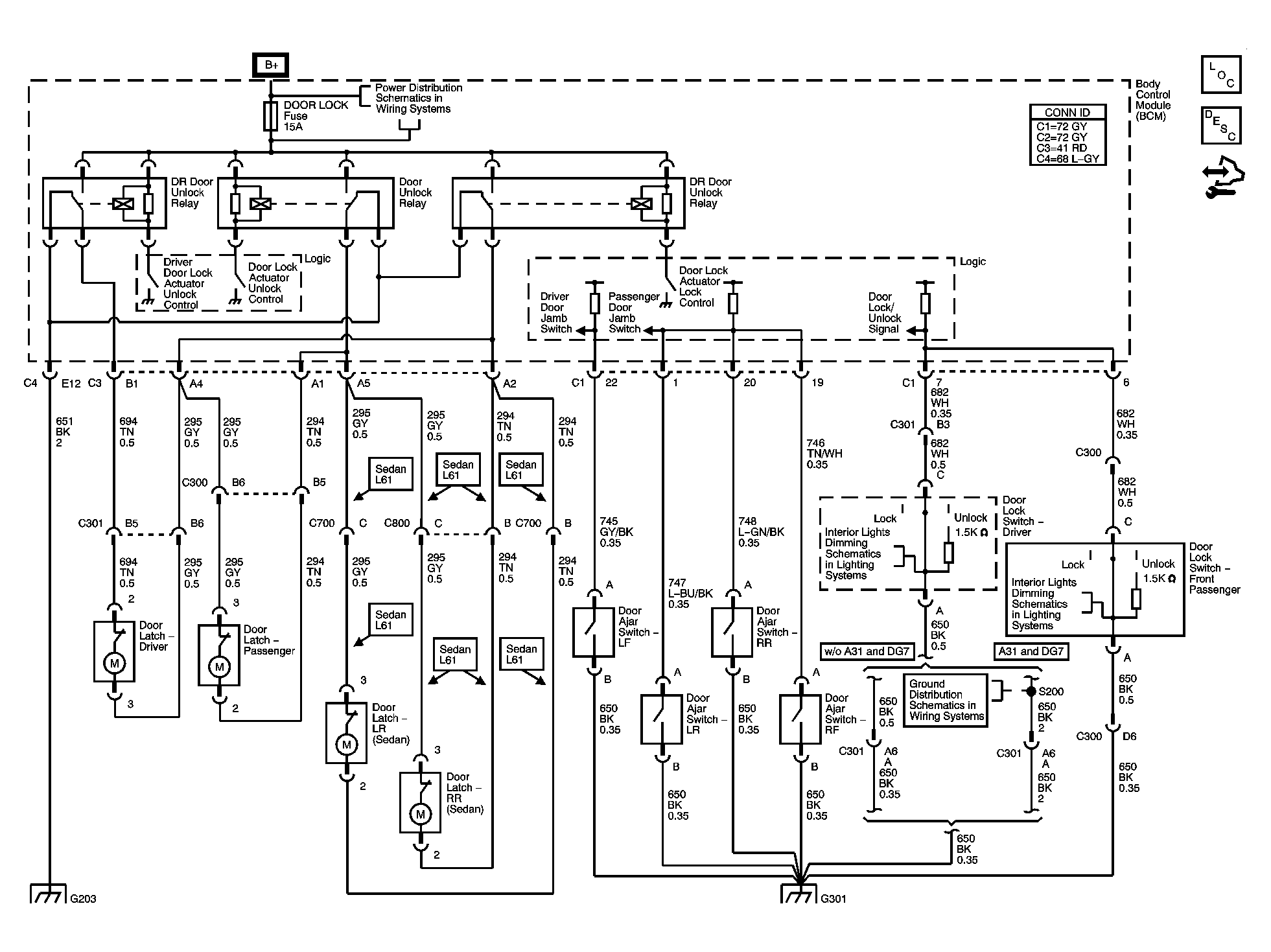

Fig 1: Door Lock/Indicator Schematic
