Window Regulator Replacement - Front Door (Power)

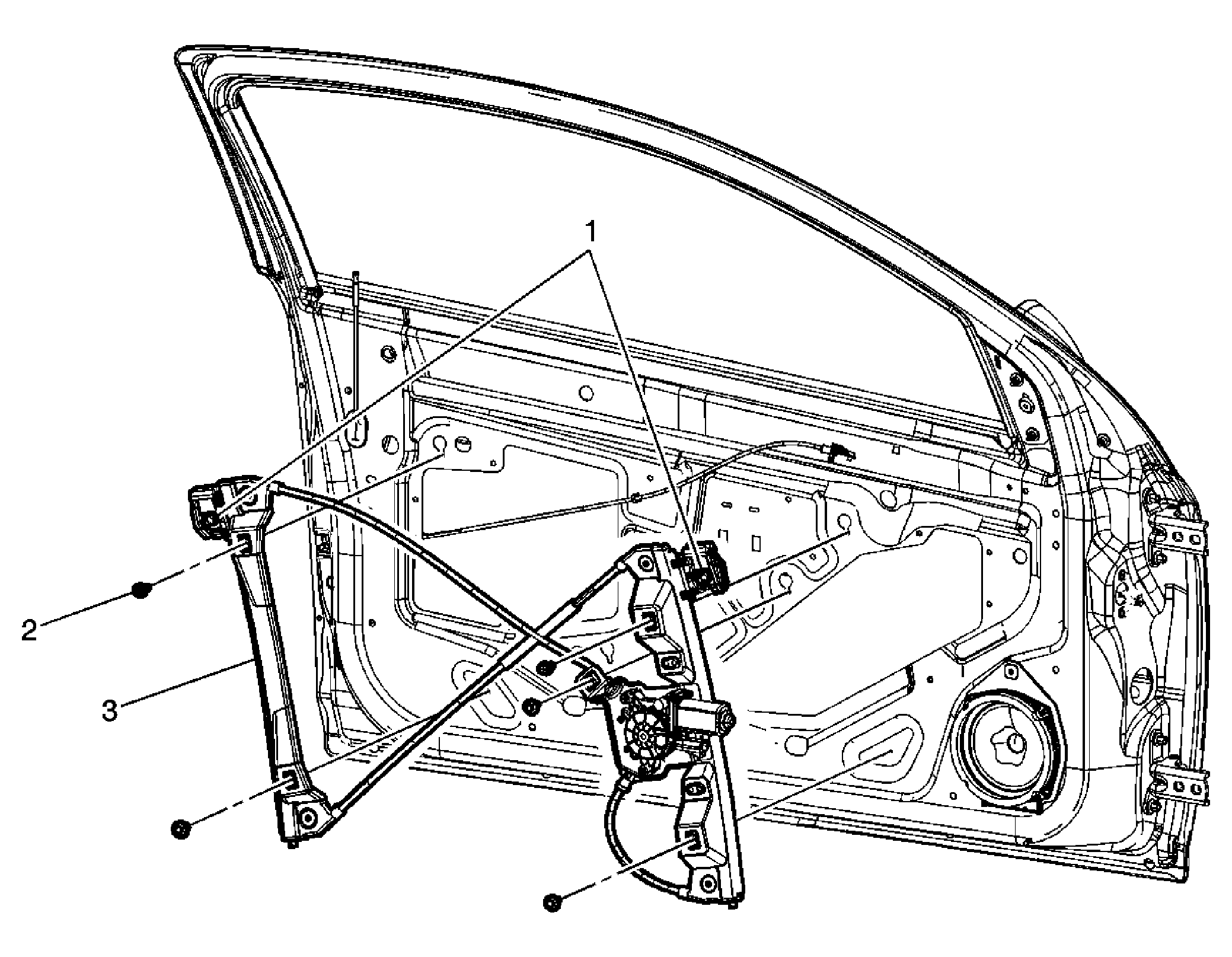

Fig 1: Window Regulator Replacement - Front Door (Power)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the water deflector. Refer to Water Deflector Replacement - Front Door . Move the window to the full up position and secure in place with tape.
1	Nut, Side Door Window Regulator Tighten: 10 N.m (89 lb in)
2	Bolt, Side Door Window Regulator (Qty: 5) Tighten: 10 N.m (89 lb in)
3	Regulator Assembly, Front Side Door Window Tip: Disconnect the electrical connector.
