Automatic Transmission Controls Schematics

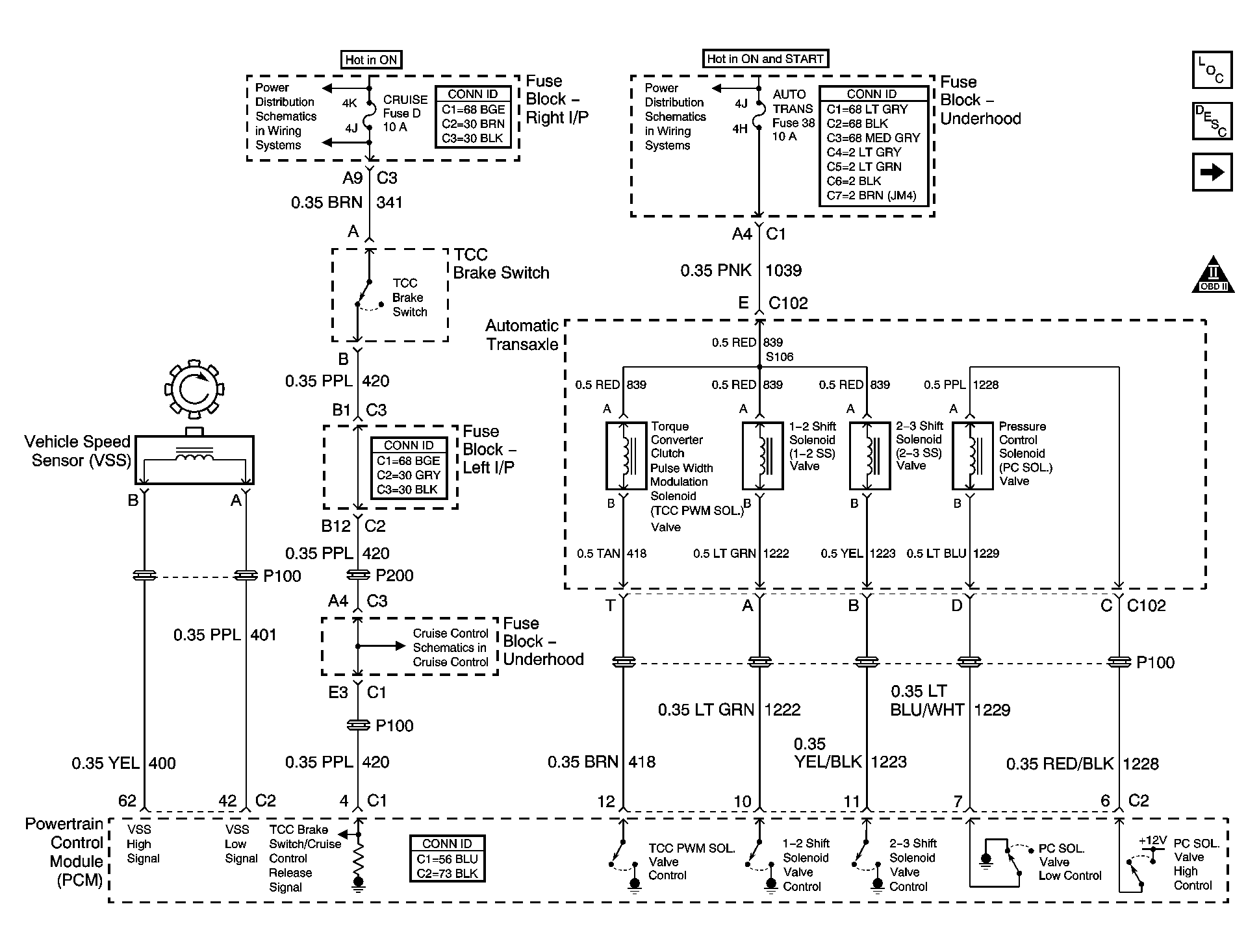

Fig 1: Shift Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

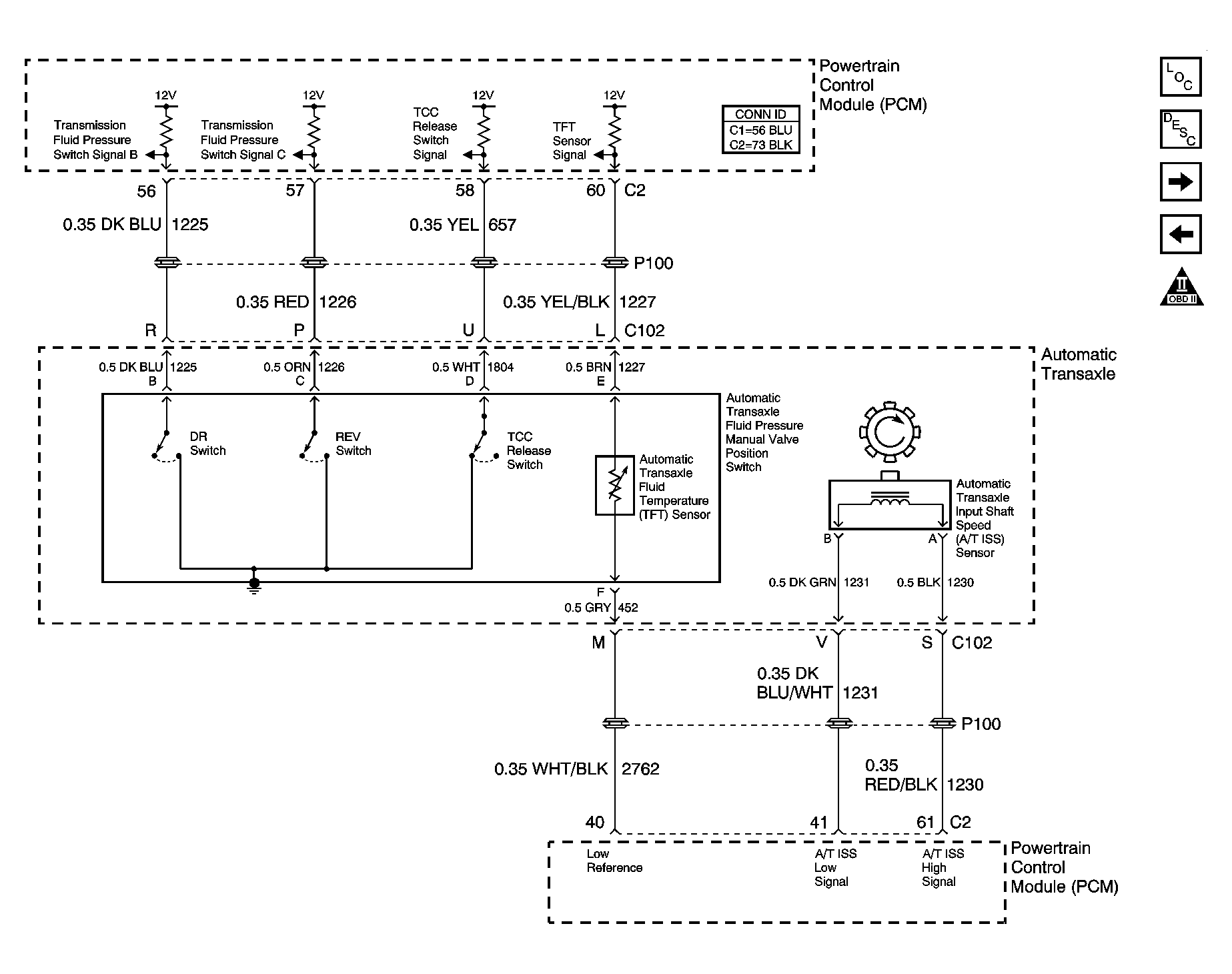

Fig 2: Transmission Switches Schematic

Courtesy of GENERAL MOTORS CORP.

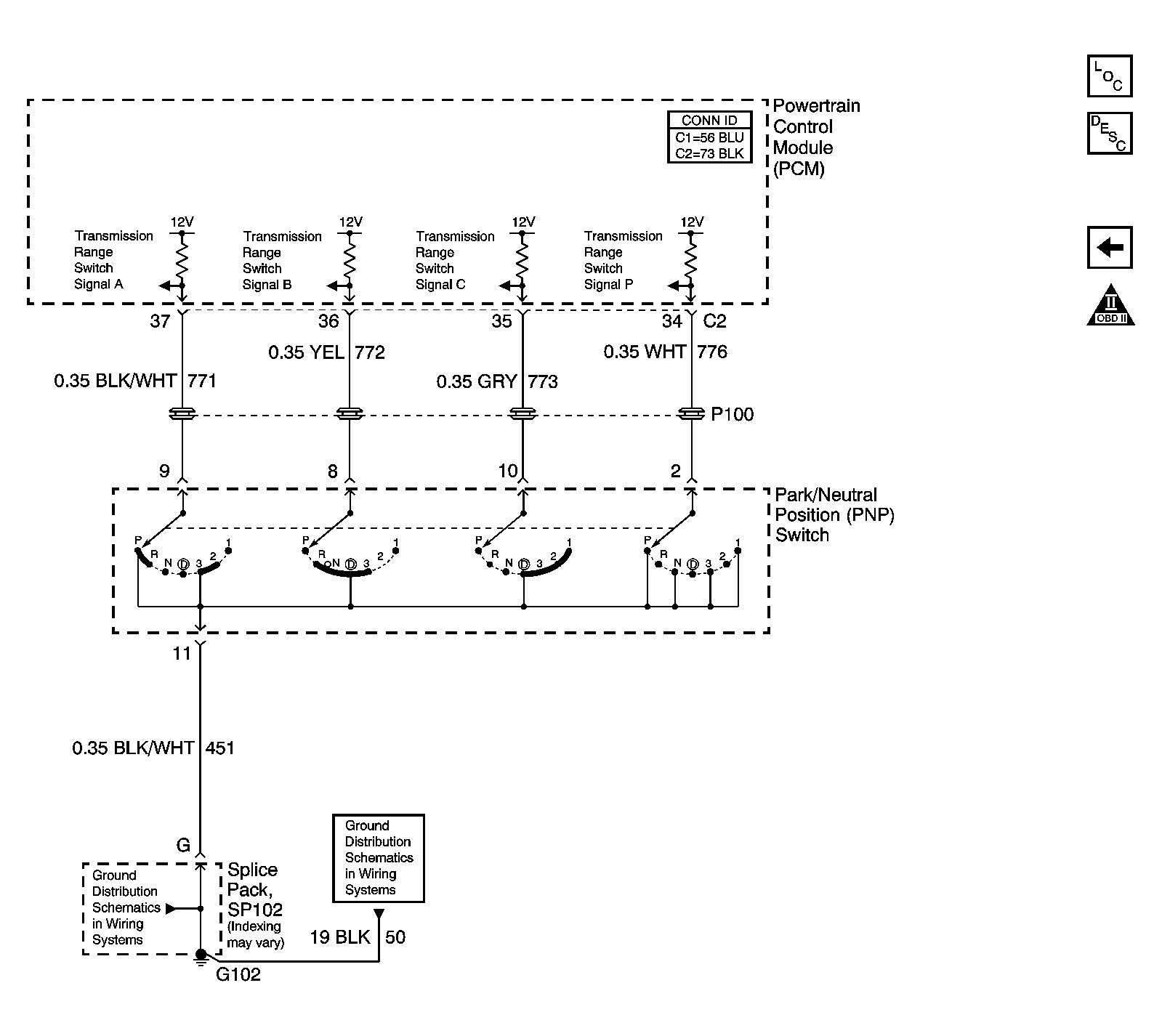

Fig 3: Park Neutral Position (PNP) Switch Schematic

Courtesy of GENERAL MOTORS CORP.
