Installation Procedure

  1. Transfer the rear upper mount to the new mount.

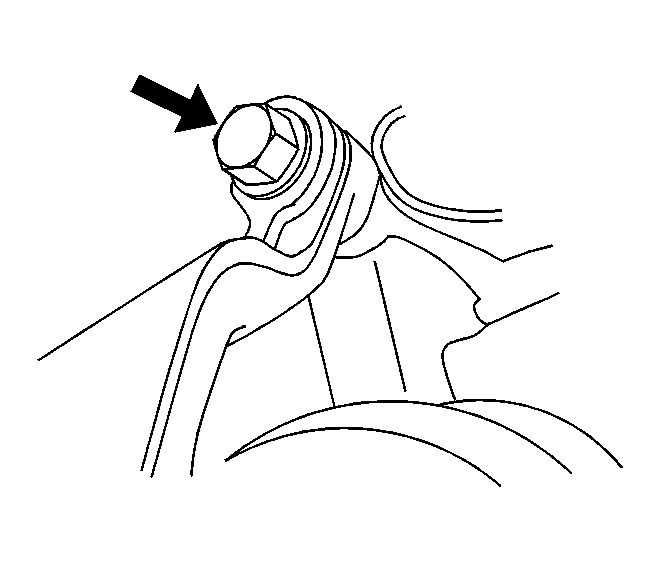

    2. Fig 1: View Of Rear Upper Bolt
    GM475858Courtesy of GENERAL MOTORS CORP.
  2. Position the mount and start the rear upper bolt into the threads.

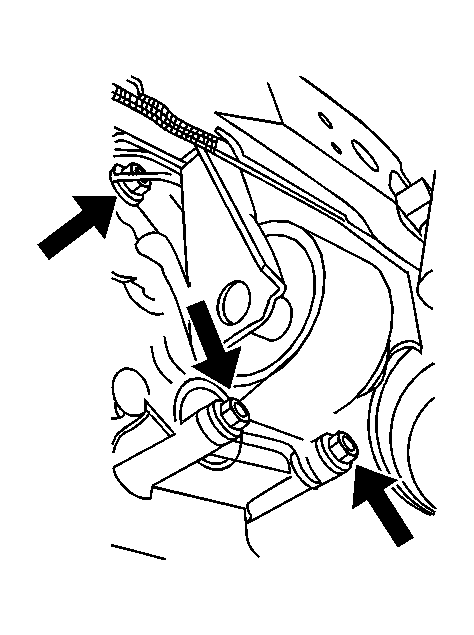

    3. Fig 2: View Of Remaining Rear Upper Mount Bolts
    GM475854Courtesy of GENERAL MOTORS CORP.
  3. Install the remaining 3 bolts.

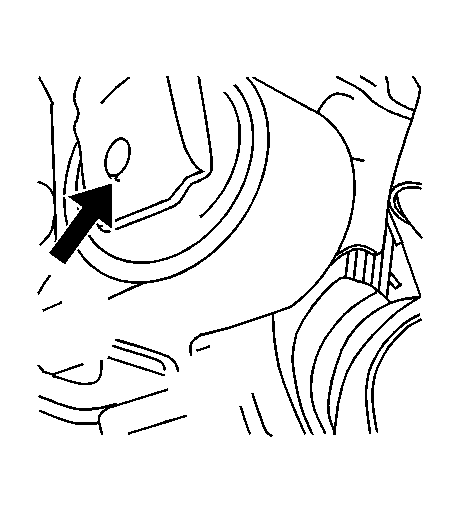

    4. Fig 3: View Of Mount Through Bolt (Side)
    GM475848Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Tighten all 4 of the mount bolts.

    Tighten:  Tighten the bolts to 66 N.m (49 lb ft).

  5. Install the mount through bolt.

    Tighten:  Tighten the mount through bolt to 55 N.m (41 lb ft).

  6. Remove the jackstand and the wood block.
  7. Install the left splash shield. Refer to Front Fender Liner Replacement in Body Front End.
  8. Install the left tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  9. Lower the vehicle.
