Cruise Control Schematics

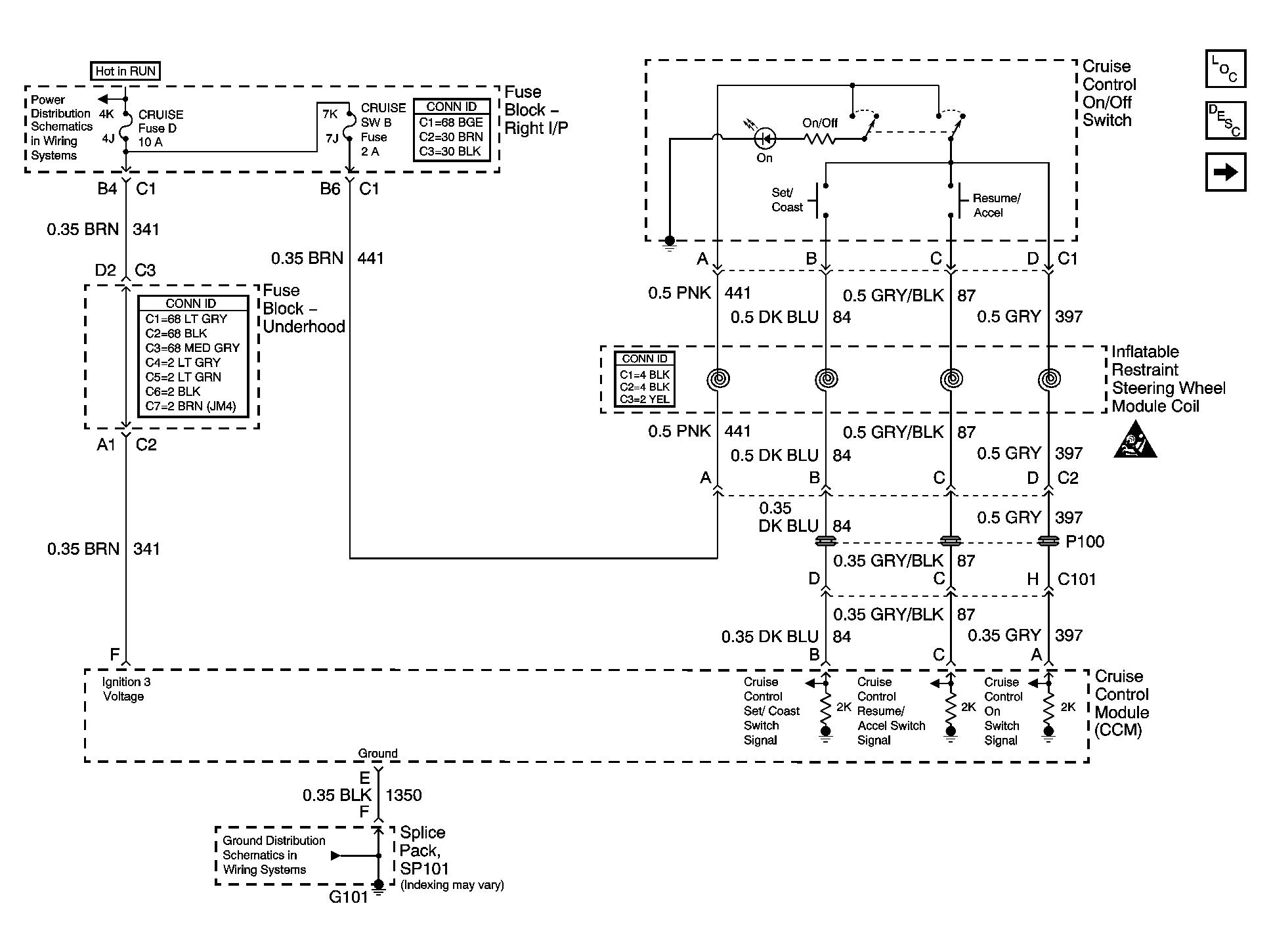

Fig 1: Power, Ground and Switch
GM783091Courtesy of GENERAL MOTORS CORP.

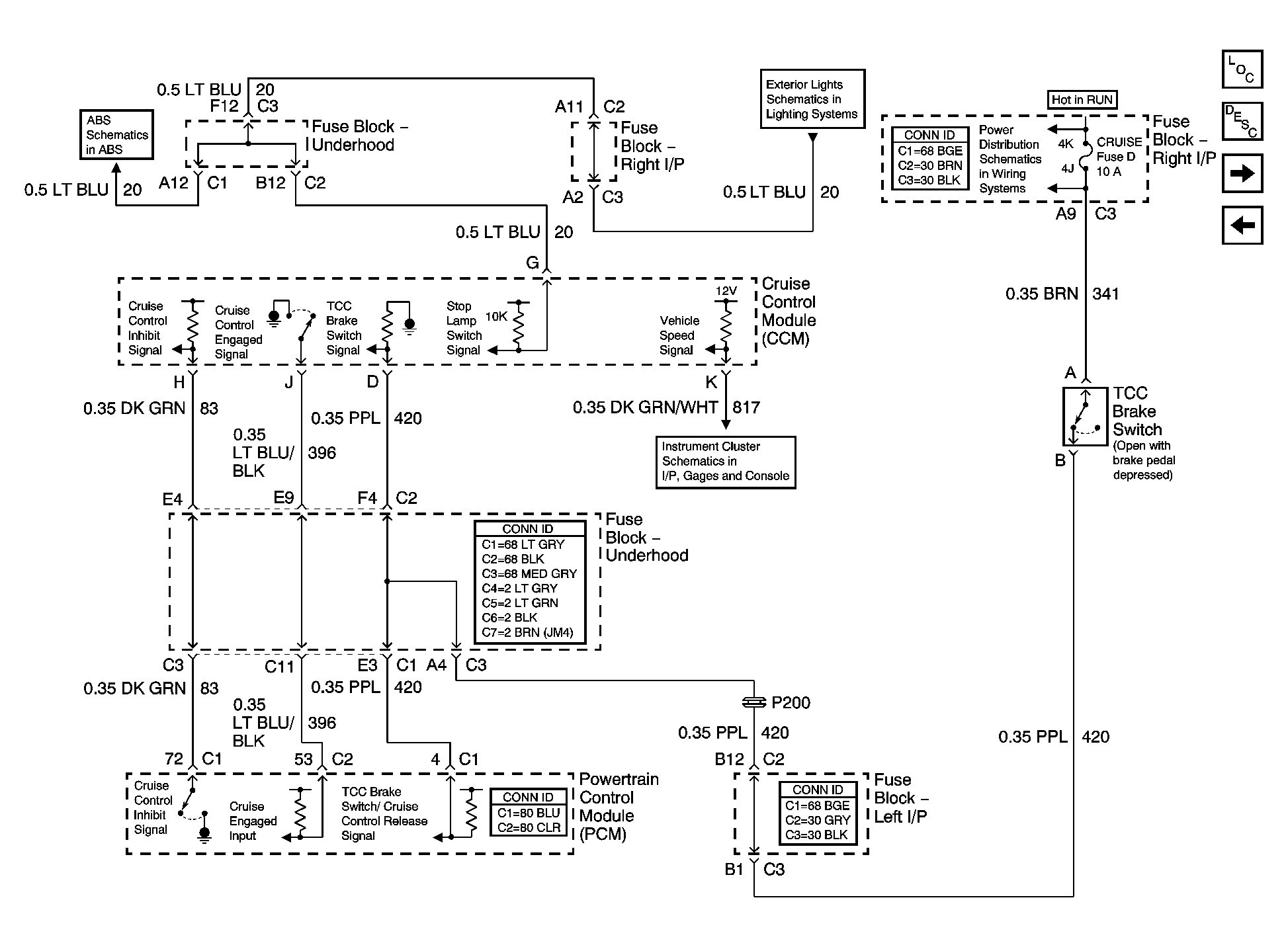

Fig 2: Brake Switch and Inhibit Signals
GM1221857Courtesy of GENERAL MOTORS CORP.

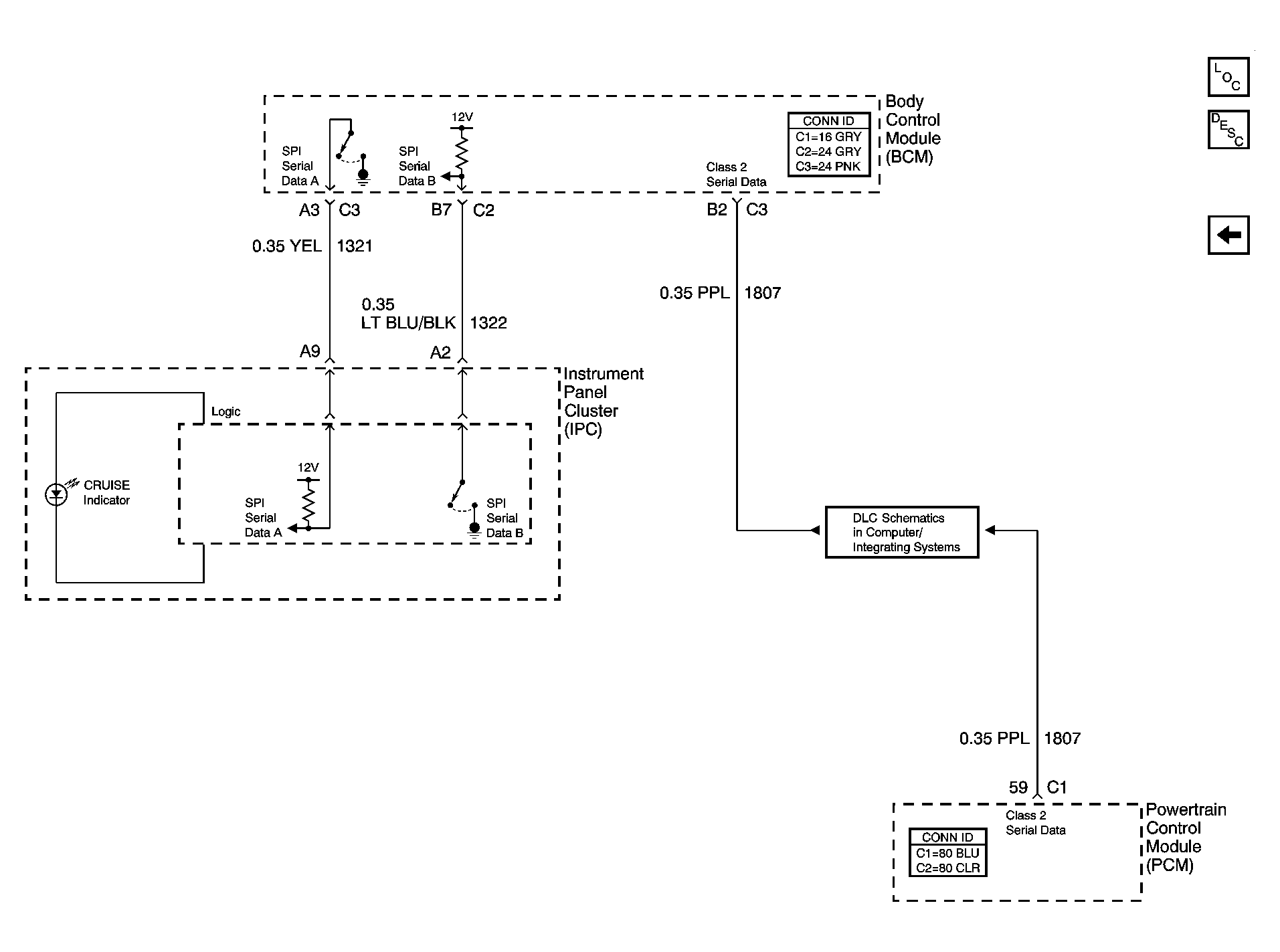

Fig 3: Cruise Control Indicator
GM1493958Courtesy of GENERAL MOTORS CORP.
