ABS Schematics

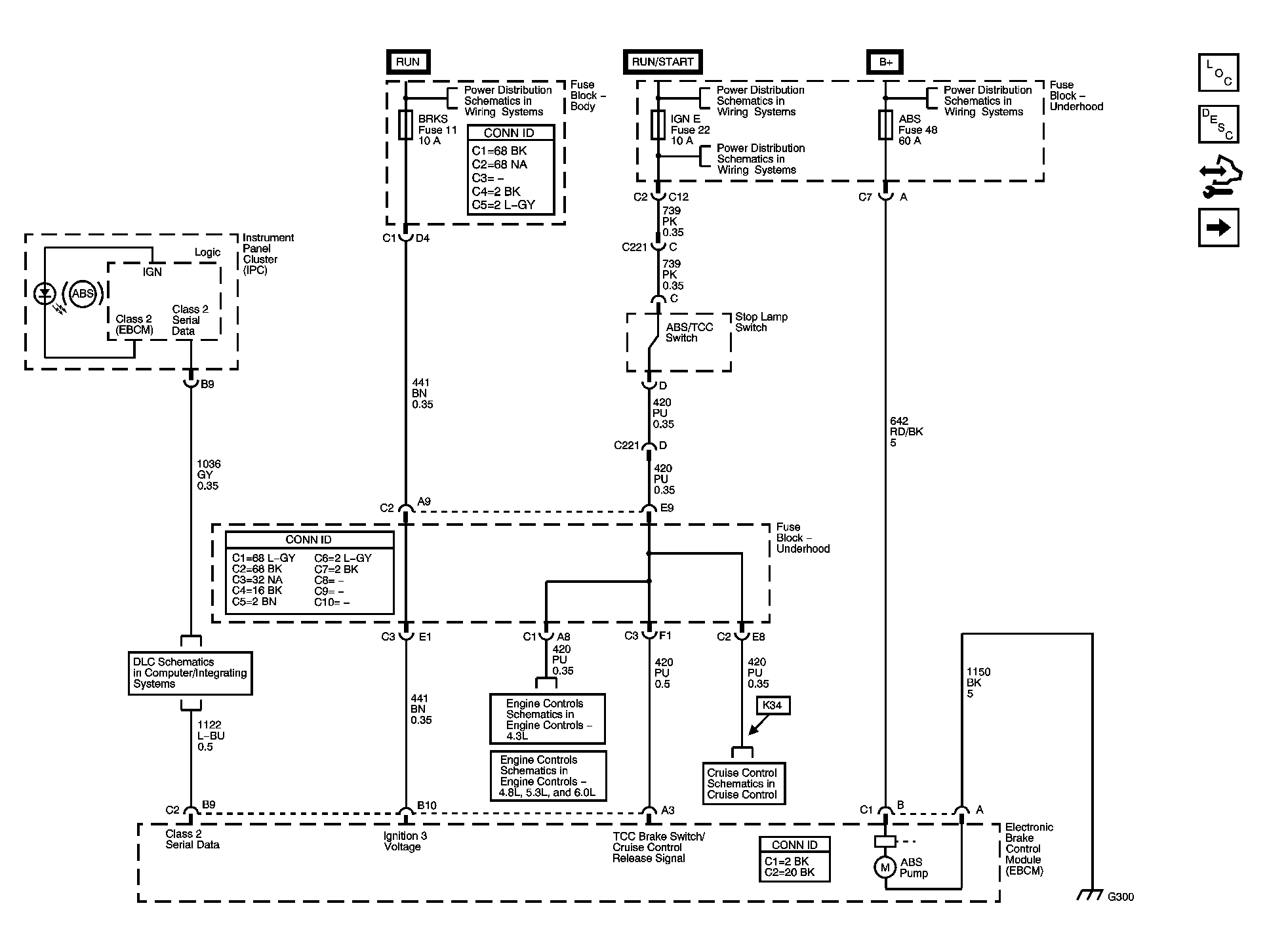

Fig 1: Power, Ground, Serial Data, Indicator and Stop Lamp Switch Schematics (w/o JL4)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Wheel Speed Sensors and VSS Schematics (w/o JL4)

Courtesy of GENERAL MOTORS CORP.

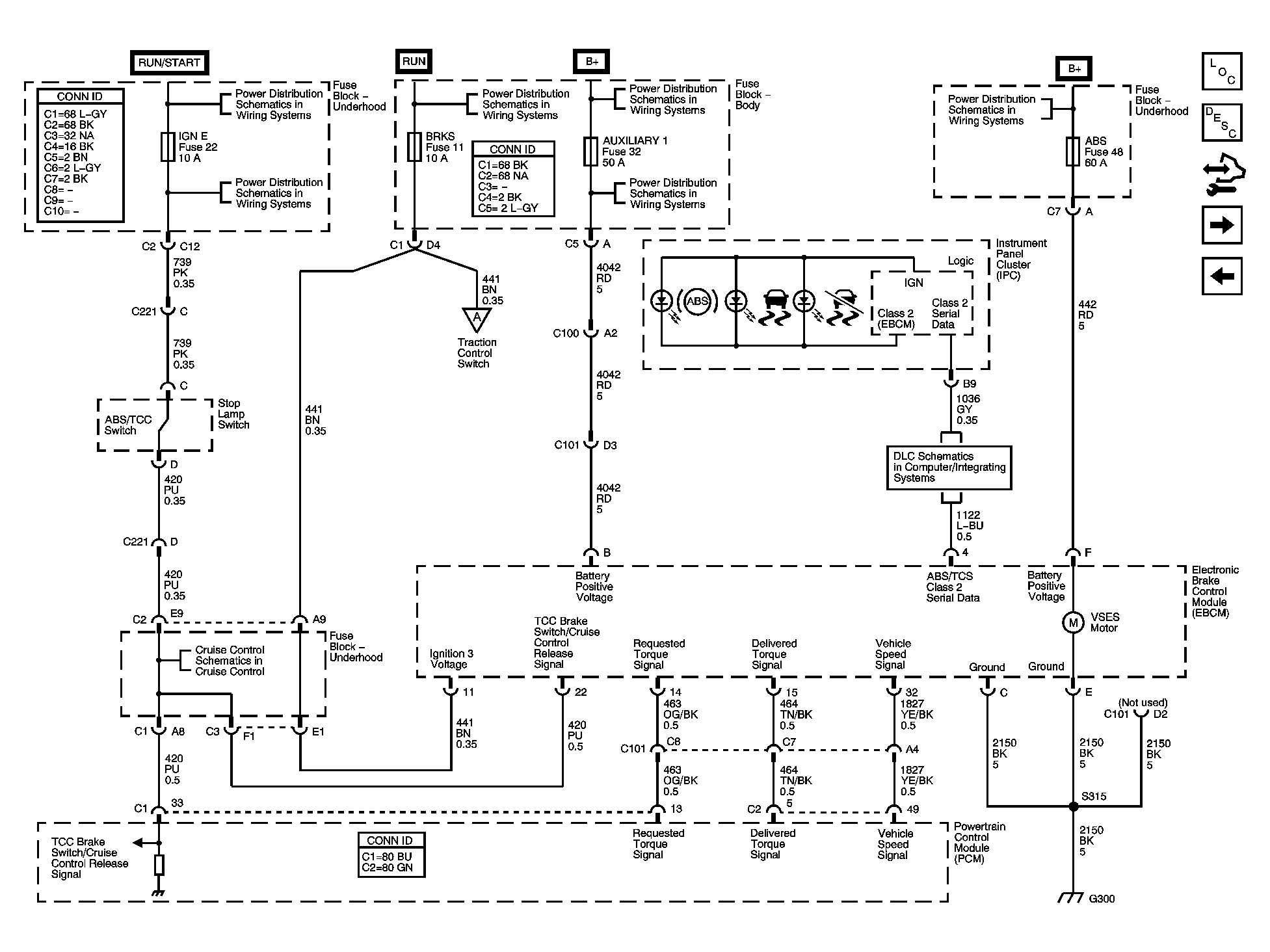

Fig 3: Power, Ground, Serial Data, Indicator, VSS and Stop Lamp Switch Schematics (JL4)

Courtesy of GENERAL MOTORS CORP.

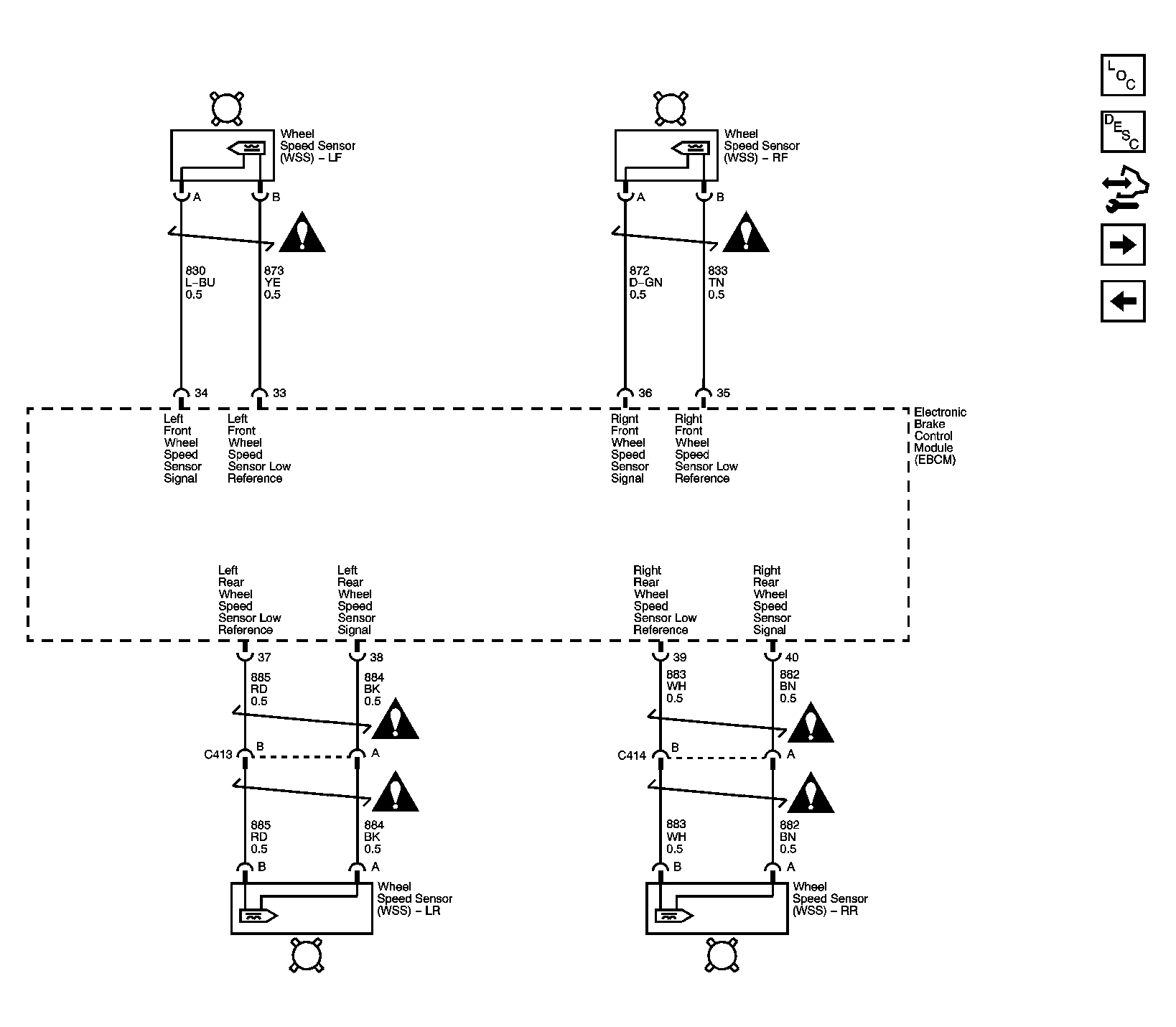

Fig 4: Wheel Speed Sensors Schematics (JL4)

Courtesy of GENERAL MOTORS CORP.

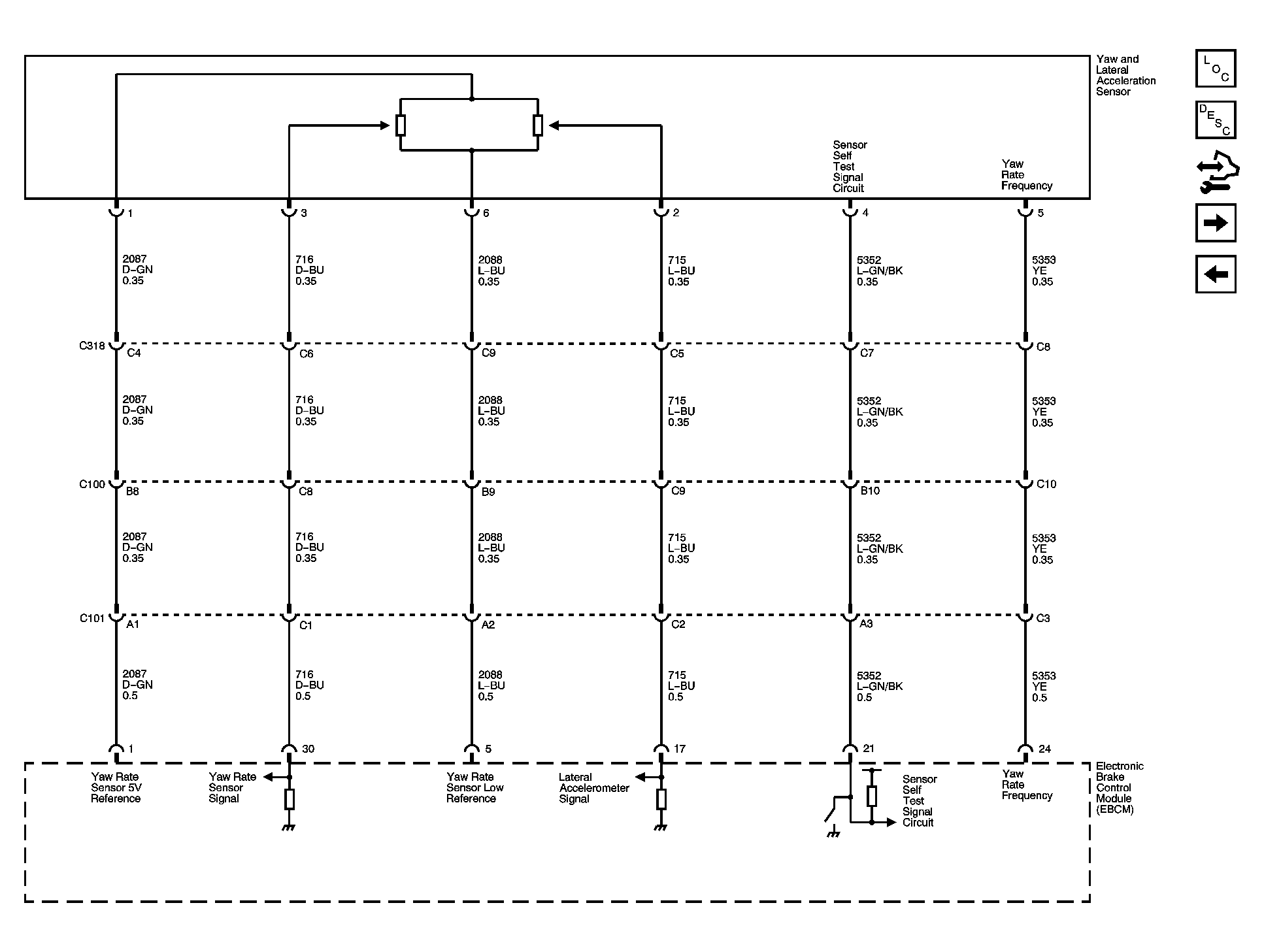

Fig 5: Yaw and Lateral Acceleration Sensor Inputs Schematics (JL4)

Courtesy of GENERAL MOTORS CORP.

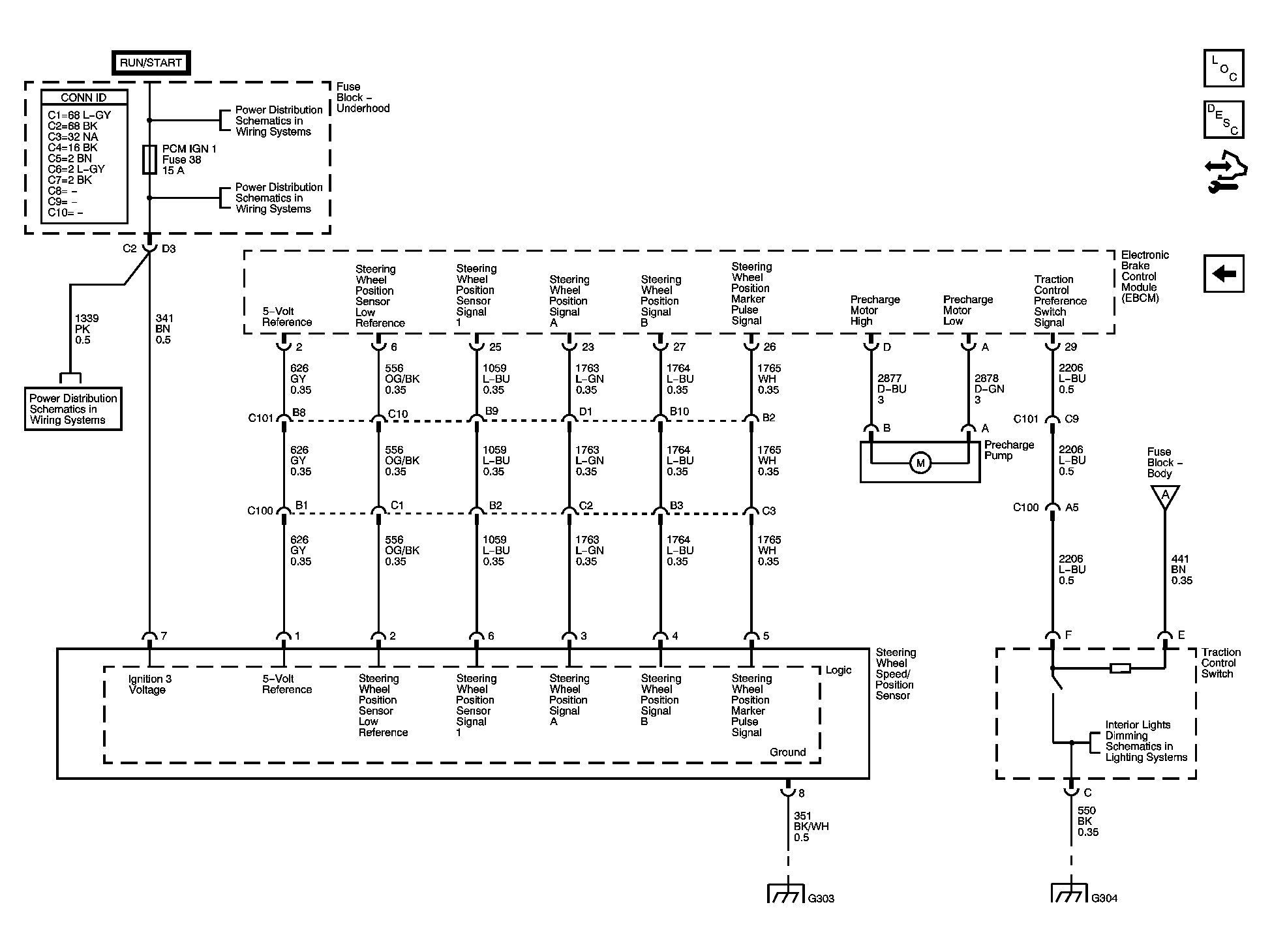

Fig 6: Steering Wheel/Speed Position Inputs, Traction Control Switch and Precharge Pump Schematics (JL4)

Courtesy of GENERAL MOTORS CORP.
