Power Door Systems Connectors

Door Contact Plate - Left Side (E26 w/AU3)

GM38274Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034343
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Contact Plate - Right Side (Passenger/Cargo w/AU3)

GM38274Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034343
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Latch Assembly - Cargo - C1 (Passenger/Cargo)

GM684948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354716
  • 4-Way F GT 150 Series, Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A L-GN 1177 Door Open Switch Signal
B-C - - Not Used
D BK 1050 Ground
Door Latch Assembly - Cargo - C2 (Passenger/Cargo w/AU3)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN/BK 1095 Right Rear Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Latch Assembly - Driver - C1

GM684948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354716
  • 4-Way F GT 150 Series, Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A TN 126 Left Front Door Open Switch Signal
B-C - - Not Used
D BK 450 Ground
Door Latch Assembly - Driver - C2 (AU3)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 694 Driver Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Latch Assembly - Passenger - C1

GM684948Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15354716
  • 4-Way F GT 150 Series, Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B-C - - Not Used
D L-GN 1177 Door Open Switch Signal
Door Latch Assembly - Passenger - C2 (AU3)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Lock Actuator - LR Side - C2 (E26 w/AU3)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Lock Actuator - RR Side (YA2 w/AU3)

GM62488Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084957
  • 2-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A GY 295 Door Lock Actuator Lock Control
B TN 294 Door Lock Actuator Unlock Control
Door Lock Actuator - RR Side (E24 w/AU3)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control

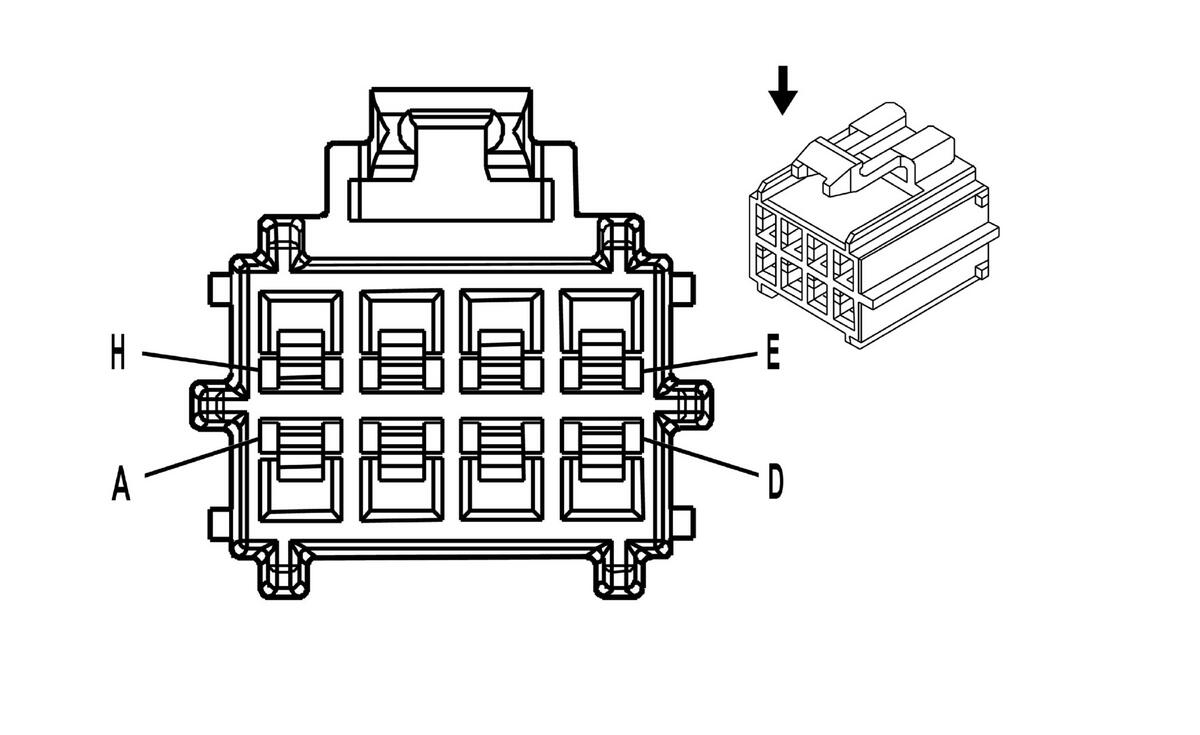

Door Lock Switch - Driver (AU3)

GM851474Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15418533
  • 8-Way F GT 280 Series (L-GN)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BK 450 Ground
C BN/WH 230 Instrument Panel Lamps Dimming Control
D-E - - Not Used
F WH 194 Door Unlock Control
G L-BU 195 Door Lock Control
H - - Not Used
Door Lock Switch - Passenger (AU3)

GM851474Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15418533
  • 8-Way F GT 280 Series (L-GN)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B BK 450 Ground
C BN/WH 230 Instrument Panel Lamps Dimming Control
D-E - - Not Used
F WH 194 Door Unlock Control
G L-BU 195 Door Lock Control
H - - Not Used
Door Lock Switch - Rear Cargo (Passenger/Cargo w/AU3)

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A L-BU 195 Door Lock Control
B-C - - Not Used
D WH 194 Door Unlock Control
E BK 1050 Ground
F-H - - Not Used
Outside Rearview Mirror - Driver (DE5/DE7)

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162427
  • 8-Way M Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B YE/BK 1334 Left Mirror Turn Signal Lamp Supply Voltage (DE7)
C WH 193 Rear Defog Relay Supply Voltage
D BK 450 Ground (DE7)
E YE 88 Driver Mirror Motor Down/Right Control
F L-GN 89 Driver Mirror Motor Up Control
G WH 81 Driver Mirror Motor Left Control
H YE 88 Driver Mirror Motor Down/Right Control
Outside Rearview Mirror - Passenger (DE5/DE7)

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162427
  • 8-Way M Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A BK 450 Ground
B D-GN/WH 1335 Right Mirror Turn Signal Lamp Supply Voltage (DE7)
C WH 193 Rear Defog Relay Supply Control
D BK 450 Ground (DE7)
E BN/WH 1498 Passenger Mirror Motor Down/Right Control
F PU/WH 889 Passenger Mirror Motor Up Control
G OG/WH 881 Passenger Mirror Motor Left Control
H BN/WH 1498 Passenger Mirror Motor Down/Right Control
Outside Rearview Mirror Switch (DE5/DE7)

GM62439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG/WH 881 Passenger Mirror Motor Left Control
B PU/WH 889 Passenger Mirror Motor Up Control
C BN/WH 1498 Passenger Mirror Motor Down/Right Control
D BK 450 Ground
E OG 4340 Battery Positive Voltage
F L-GN 89 Driver Mirror Motor Up Control
G WH 81 Driver Mirror Motor Left Control
H YE 88 Driver Mirror Motor Down/Right Control
Window Motor - Driver (A31)

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series, Flexlock Sealed (GY)
Pin Wire Color Circuit No. Function
A BN 165 Power Window Motor Left Front Down Control
B D-BU 164 Power Window Motor Left Front Up Control
Window Motor - Passenger (A31)

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series, Flexlock Sealed (GY)
Pin Wire Color Circuit No. Function
A BN 667 Power Window Motor Right Front Down Control
B D-BU 666 Power Window Motor Right Front Up Control
Window Switch - Driver (A31)

GM851473Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15418532
  • 8-Way F GT 280 Series (BK)
Pin Wire Color Circuit No. Function
A WH 1185 Power Window Switch Left Rear Up Signal
B OG 1189 Power Window Switch Right Front Low Reference
C BN/WH 230 Instrument Panel Lamps Dimming Control
D BK 450 Ground
E D-GN 1001 RAP Fuse Supply Voltage
F D-BU 164 Power Window Motor Left Front Up Control
G - - Not Used
H BN 165 Power Window Motor Left Front Down Control
Window Switch - Front Passenger (A31)

GM851473Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15418532
  • 8-Way F GT 280 Series (BK)
Pin Wire Color Circuit No. Function
A D-GN 1001 RAP Fuse Supply Voltage
B BN/WH 230 Instrument Panel Lamps Dimming Control
C BK 450 Ground
D WH 1185 Power Window Switch Left Rear Up Signal
E - - Not Used
F D-BU 666 Power Window Motor Right Front Up Control
G BN 667 Power Window Motor Right Front Down Control
H OG 1189 Power Window Switch Right Front Low Reference
