Body Control System Schematics

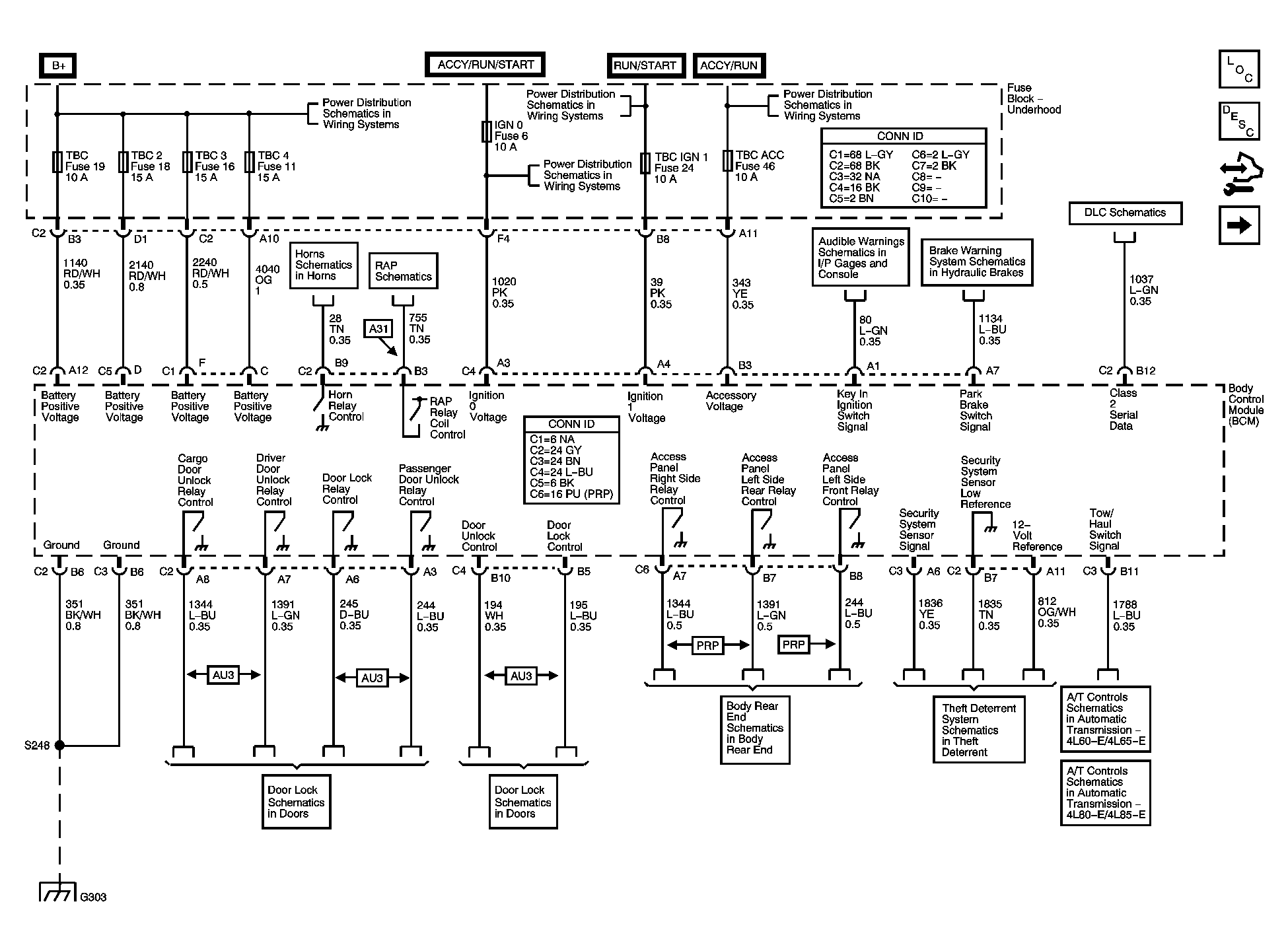

Fig 1: Power, Ground, Serial Data and Controlled/Monitored Subsystem References Schematics
GM1403257Courtesy of GENERAL MOTORS CORP.

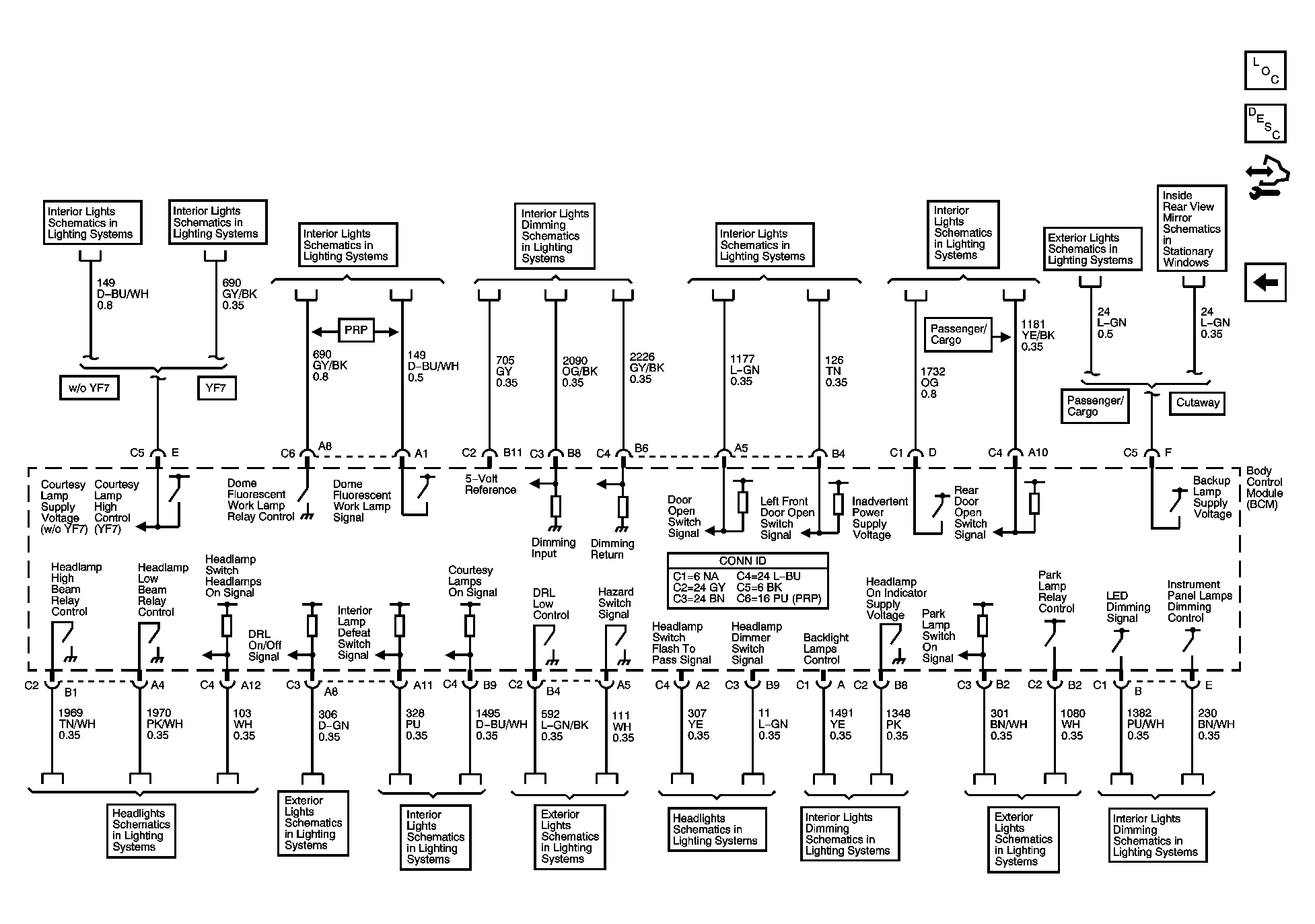

Fig 2: Lighting Subsystem References Schematics
GM1403263Courtesy of GENERAL MOTORS CORP.
