Automatic Transmission Controls Schematics

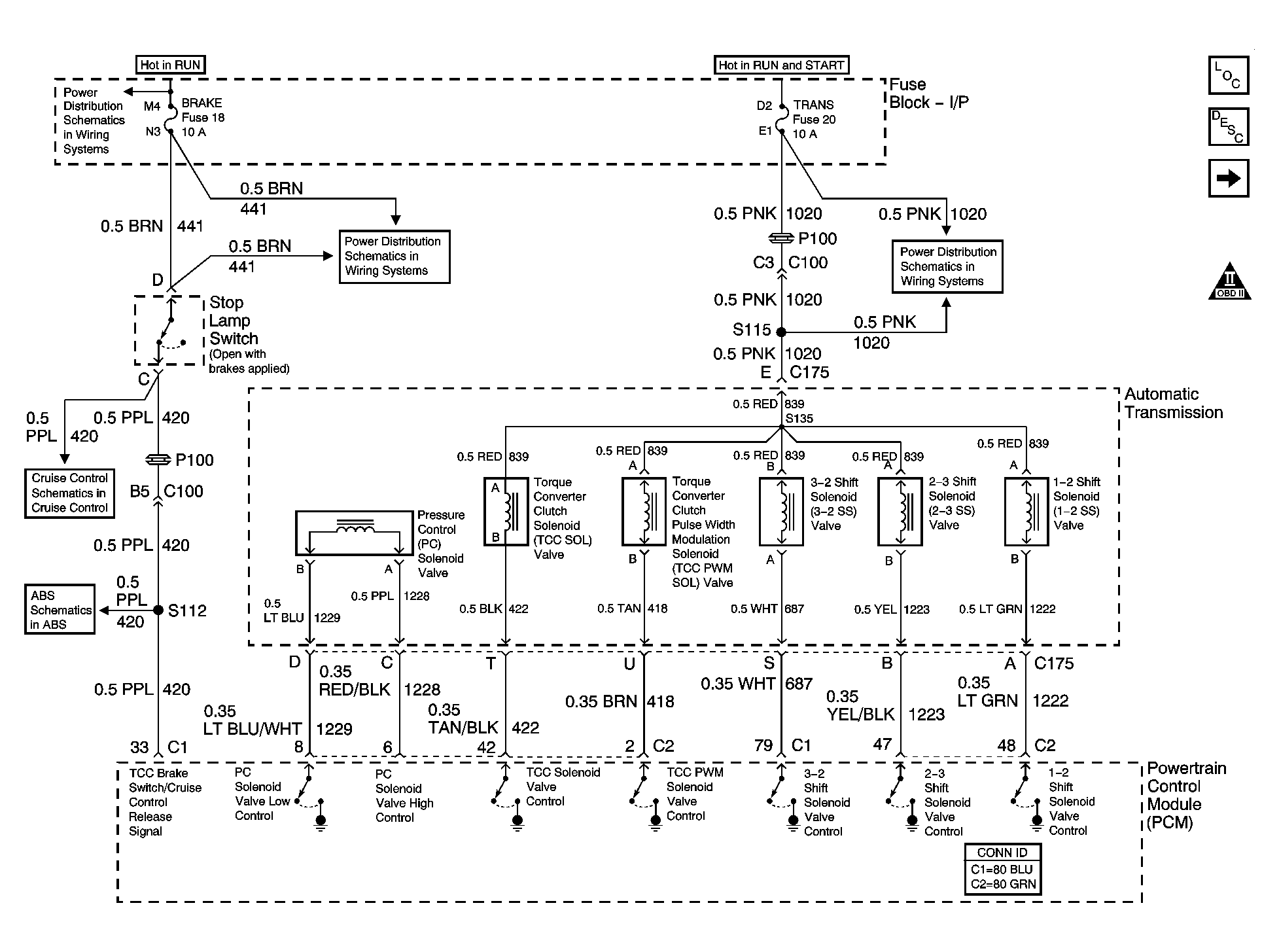

Fig 1: Stop Lamp Switch and Valve Controls Schematic

Courtesy of GENERAL MOTORS CORP.

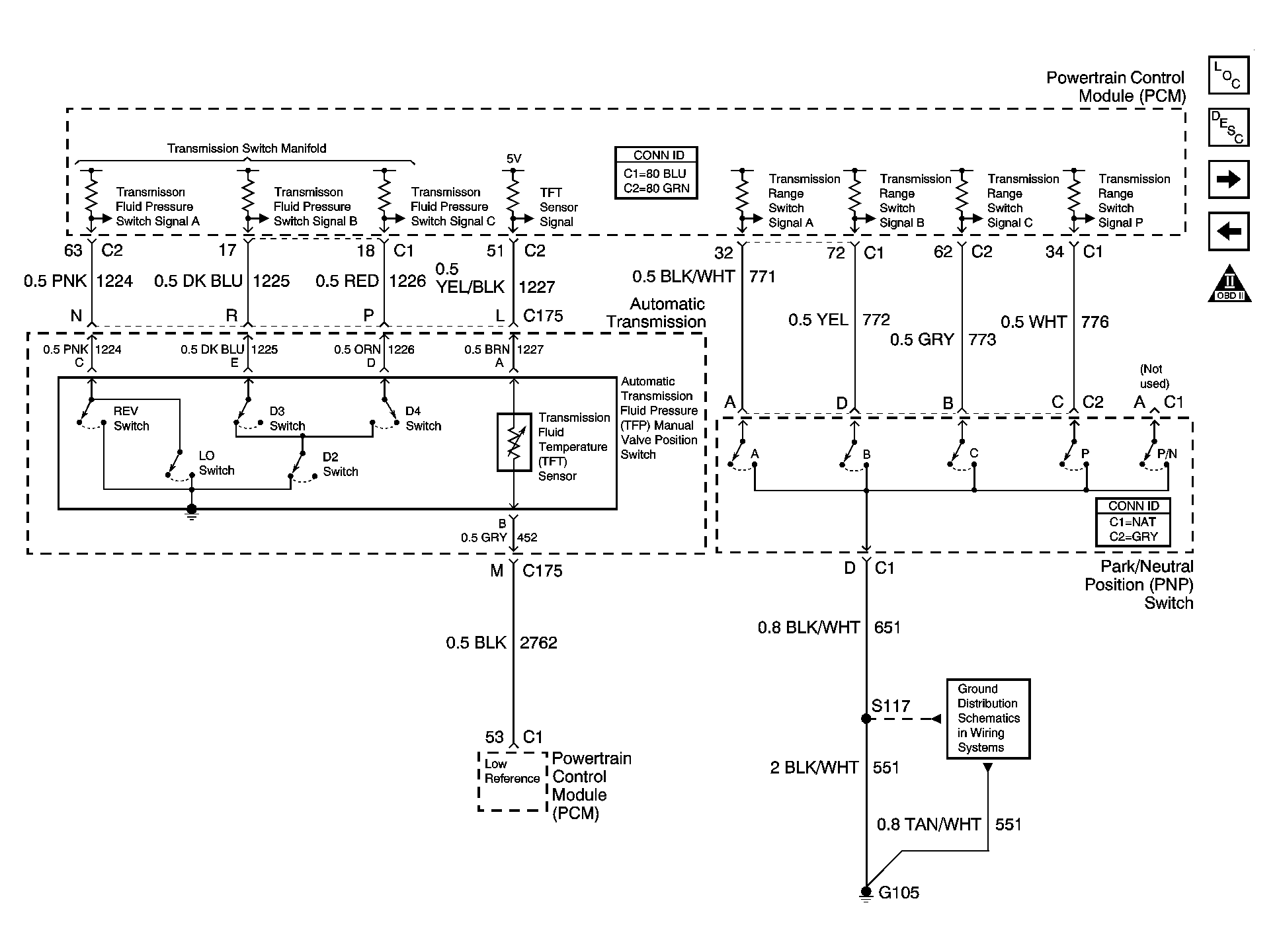

Fig 2: Switch Inputs and PNP Switch Schematic

Courtesy of GENERAL MOTORS CORP.

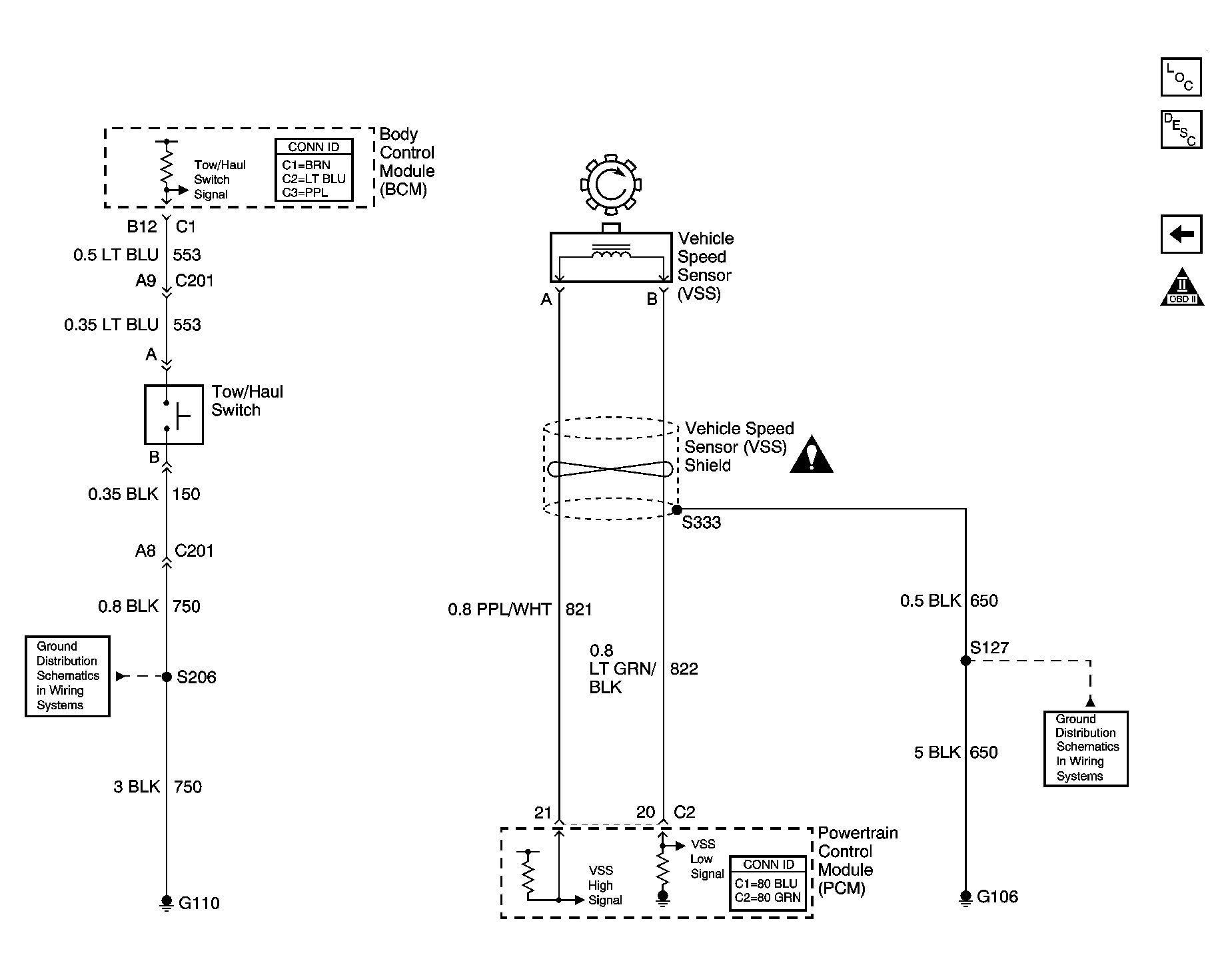

Fig 3: Tow/Haul Switch and VSS Inputs Schematic

Courtesy of GENERAL MOTORS CORP.
