Fuel Hose/Pipes Routing Diagram

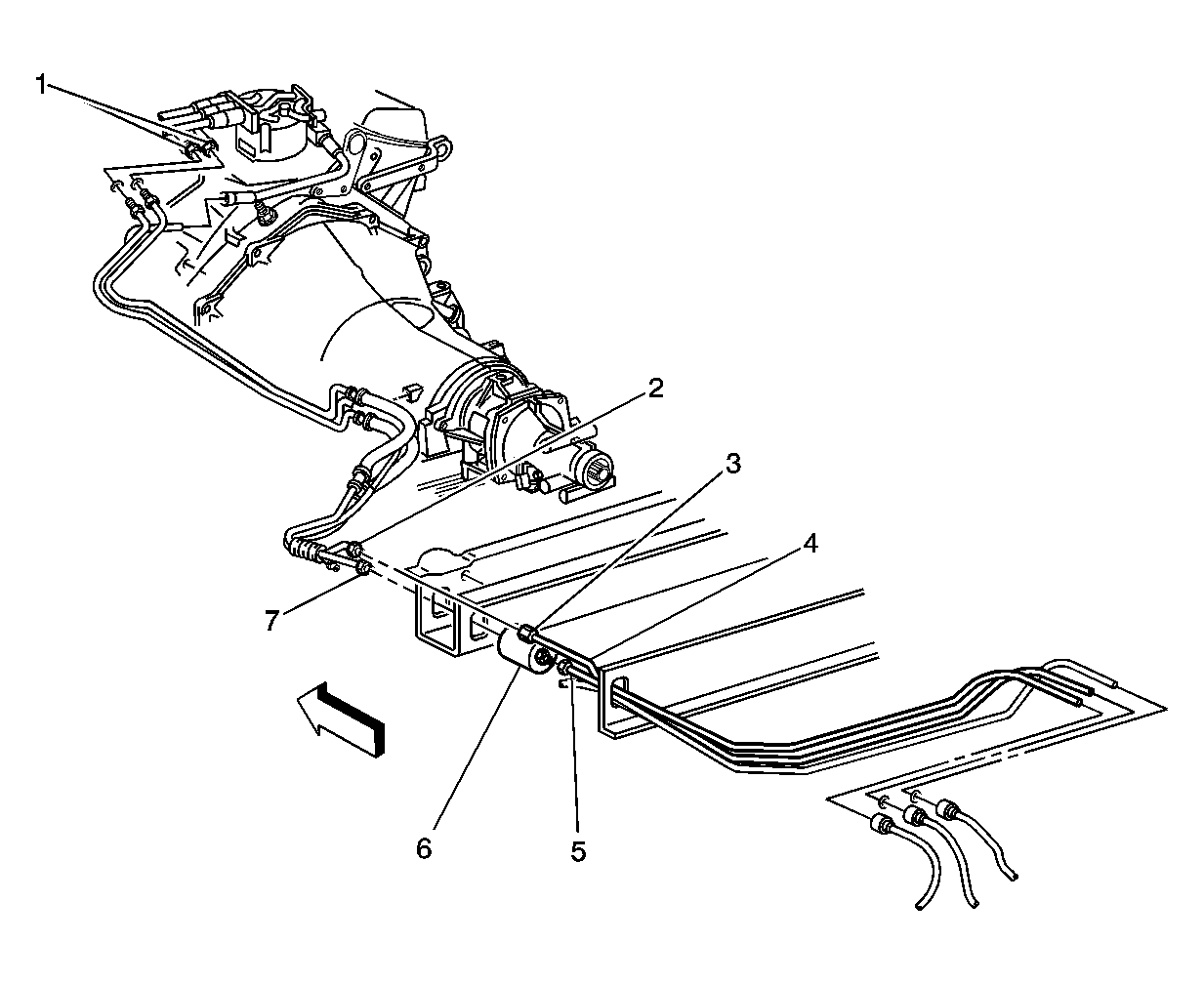

Fig 1: Fuel Hose/Pipes Routing Diagram
GM870403Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Compartment Fuel Pipes
2 Fuel Return Front Pipe
3 Fuel Return Pipe Union
4 Fuel Return Rear Pipe
5 Fuel Feed Rear Pipe
6 Fuel Filter
7 Fuel Feed Front Pipe
