Starting System and Charging System Schematics

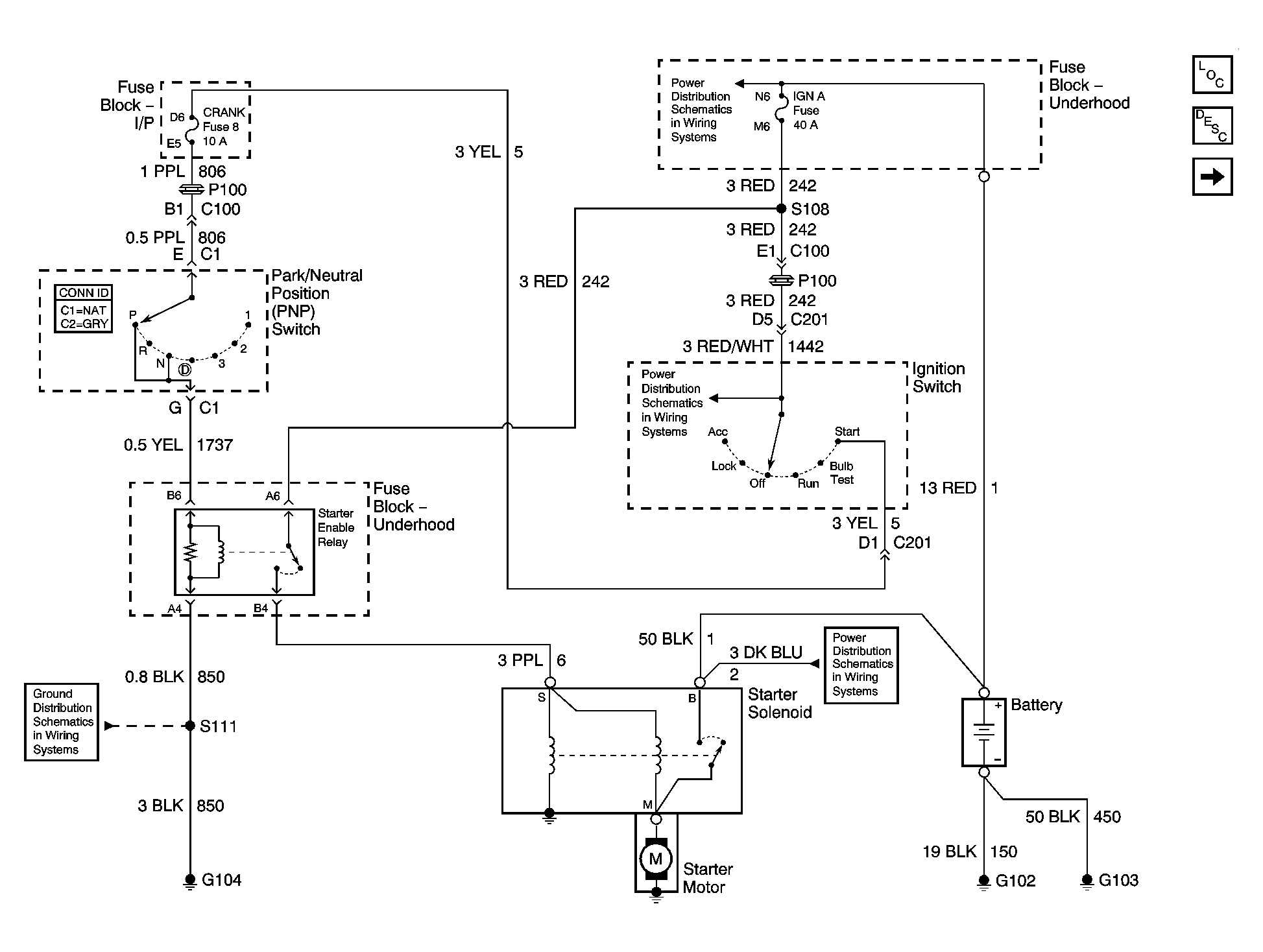

Fig 1: Starting Schematics

GM896116

Courtesy of GENERAL MOTORS CORP.

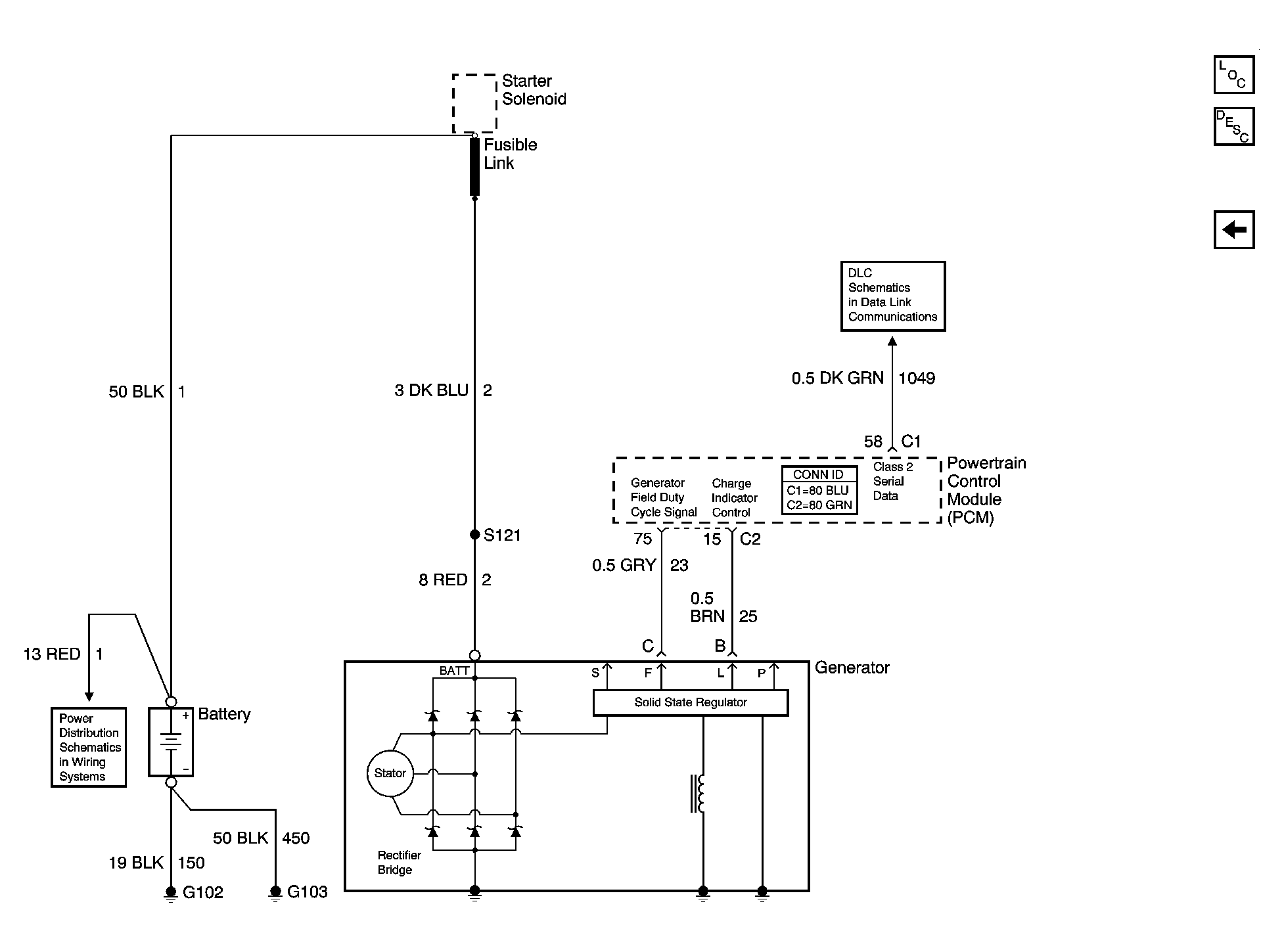

Fig 2: Charging Schematics

GM896120

Courtesy of GENERAL MOTORS CORP.
