SIR Component Views

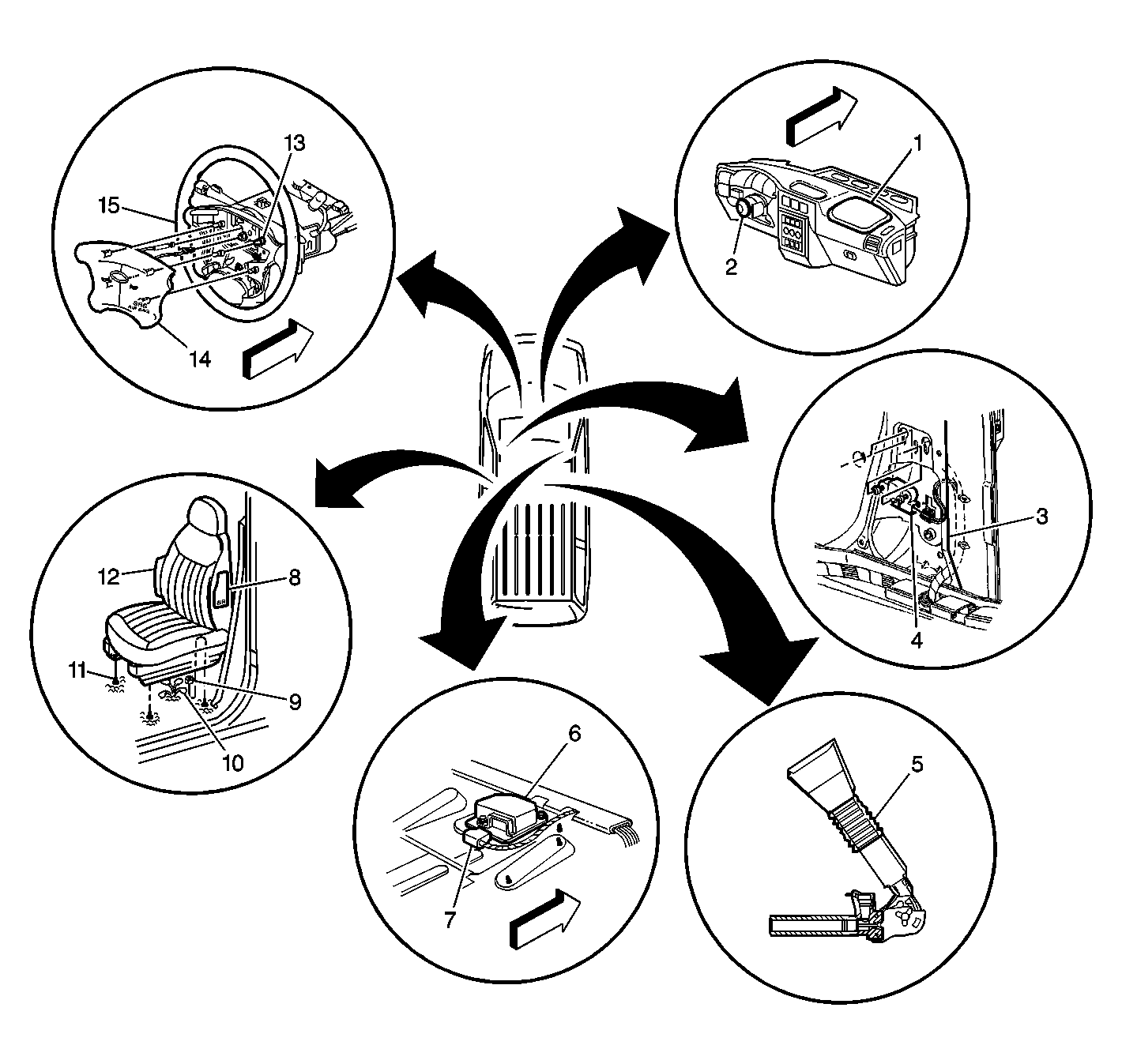

Fig 1: SIR Components - General Overview

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint IP Module
2	Steering Column
3	B-Pillar
4	Side Impact Sensor-Right (Left similar)
5	Seat Belt Pretensioner-Left (Right similar)
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
7	SDM Wiring Harness Connector
8	Inflatable Restraint Front Side Impact Module-Left (Right similar)
9	Nut
10	Yellow 2-Way Underseat Connector
11	Floor Mounting
12	Armrest
13	Inflatable Restraint Steering Wheel Module Fastener
14	Inflatable Restraint Steering Wheel Module
15	Steering Wheel

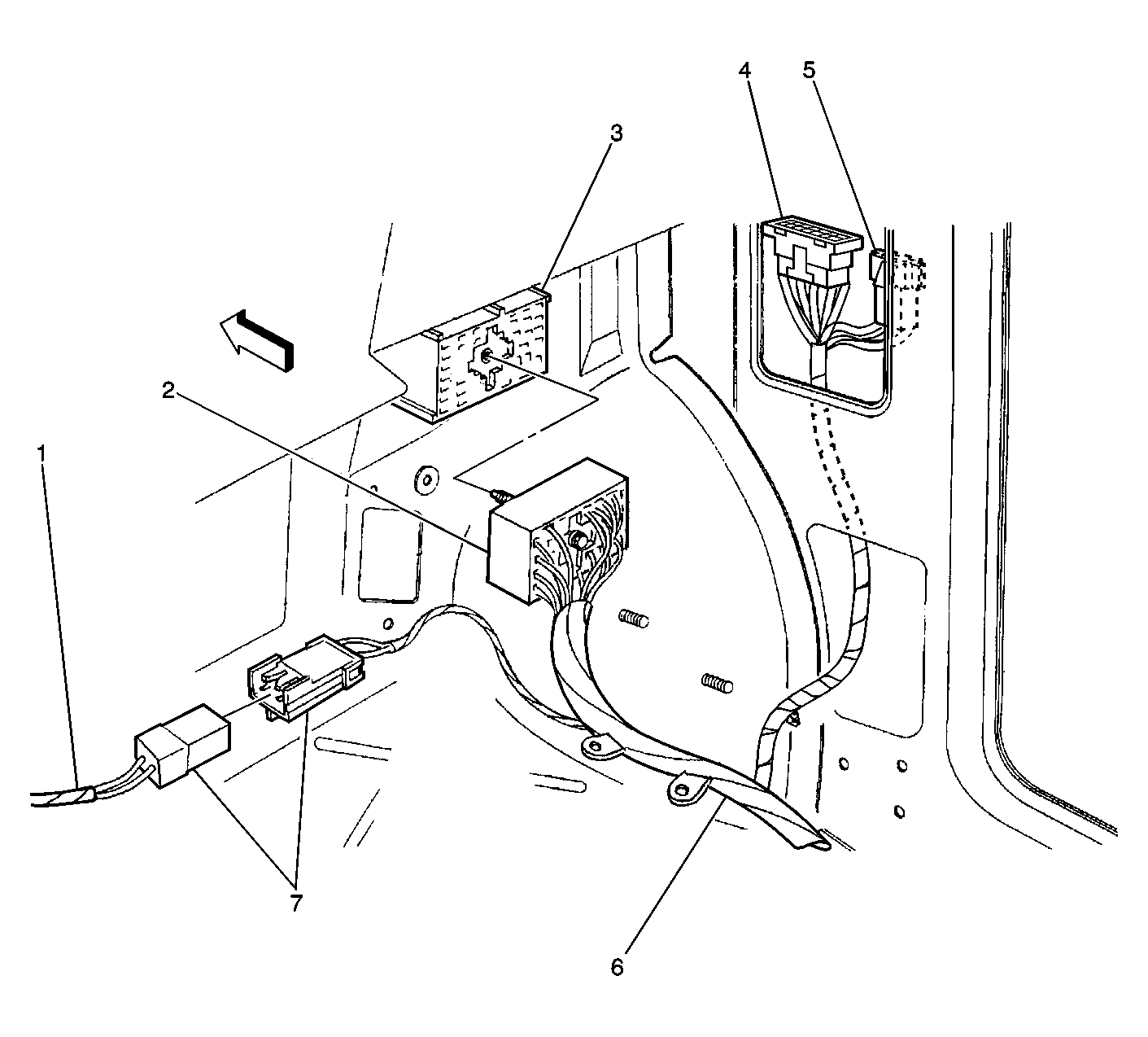

Fig 2: Below Right Side of IP Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Harness to Inflatable Restraint I/P Module (Yellow)
2	In-line Connector C200 of Body Harness (C203, Left Side Similar)
3	In-line Connector C200 of I/P Harness (C203, Left Side Similar)
4	In-Line C302 to Right Door Harness
5	In-Line C304 to Right Door Harness
6	Body Harness
7	In-Line Connector C216 (Yellow), Body Harness to Inflatable Restraint I/P Module

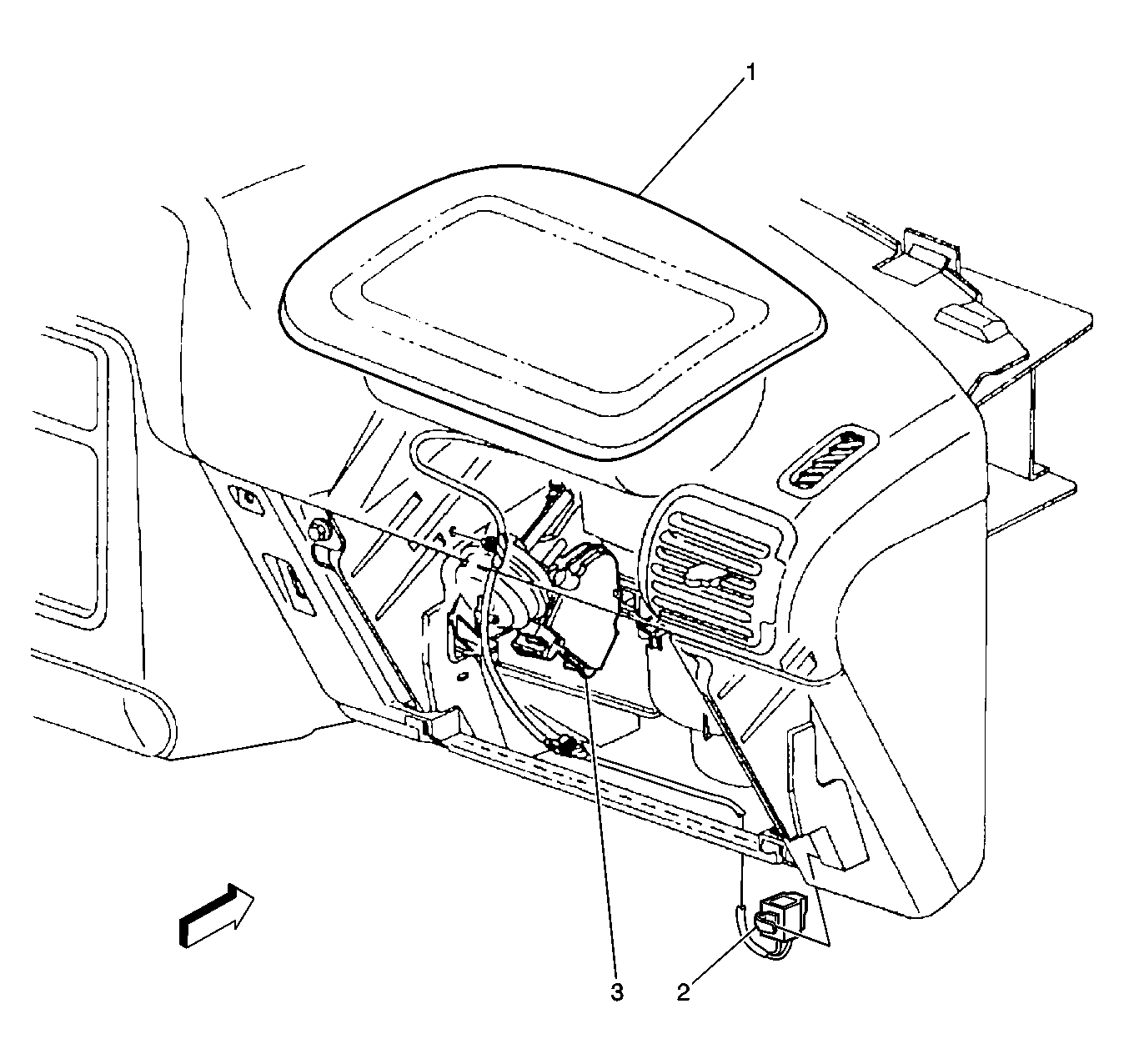

Fig 3: Right Side of IP Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module
2	In-Line Connector C216 (Yellow), from Inflatable Restraint I/P Module to Body Harness
3	Recirculation Inlet Actuator

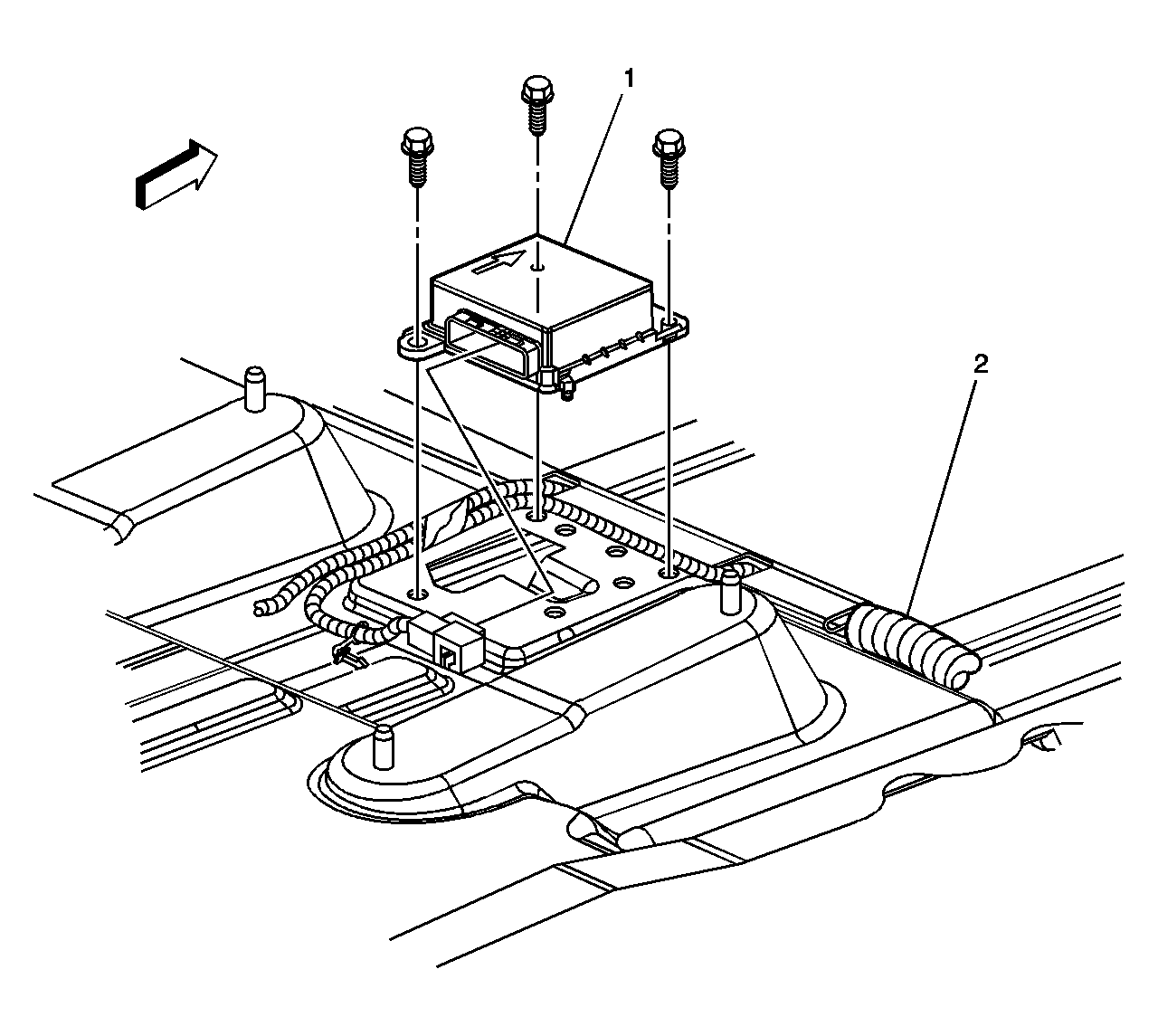

Fig 4: Below Right Front Passenger Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Body Harness

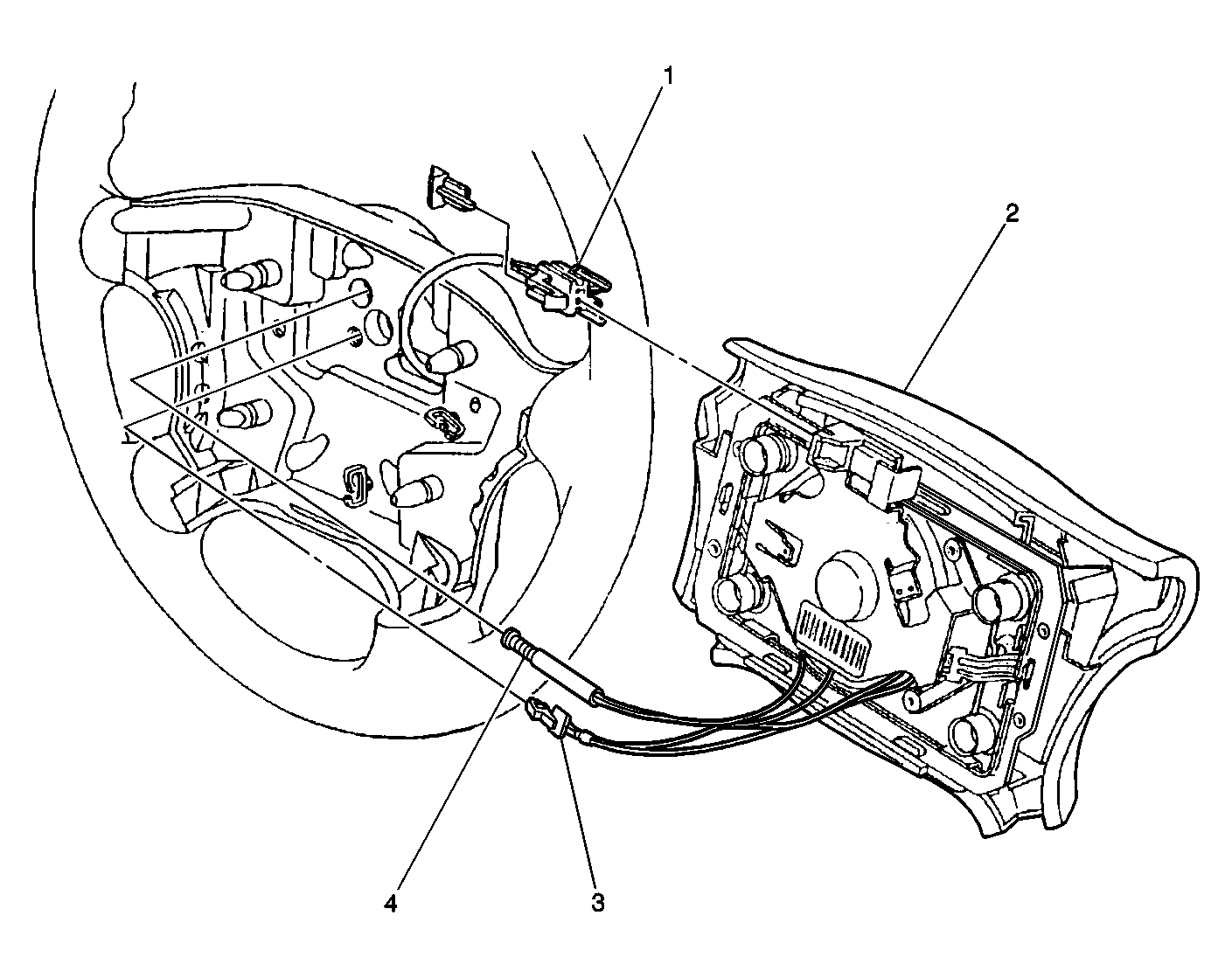

Fig 5: Oldsmobile Steering Wheel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Connector from Inflatable Restraint Steering Wheel Module
2	Inflatable Restraint Steering Wheel Module
3	Ground from Horn Switches
4	To Horn Switches

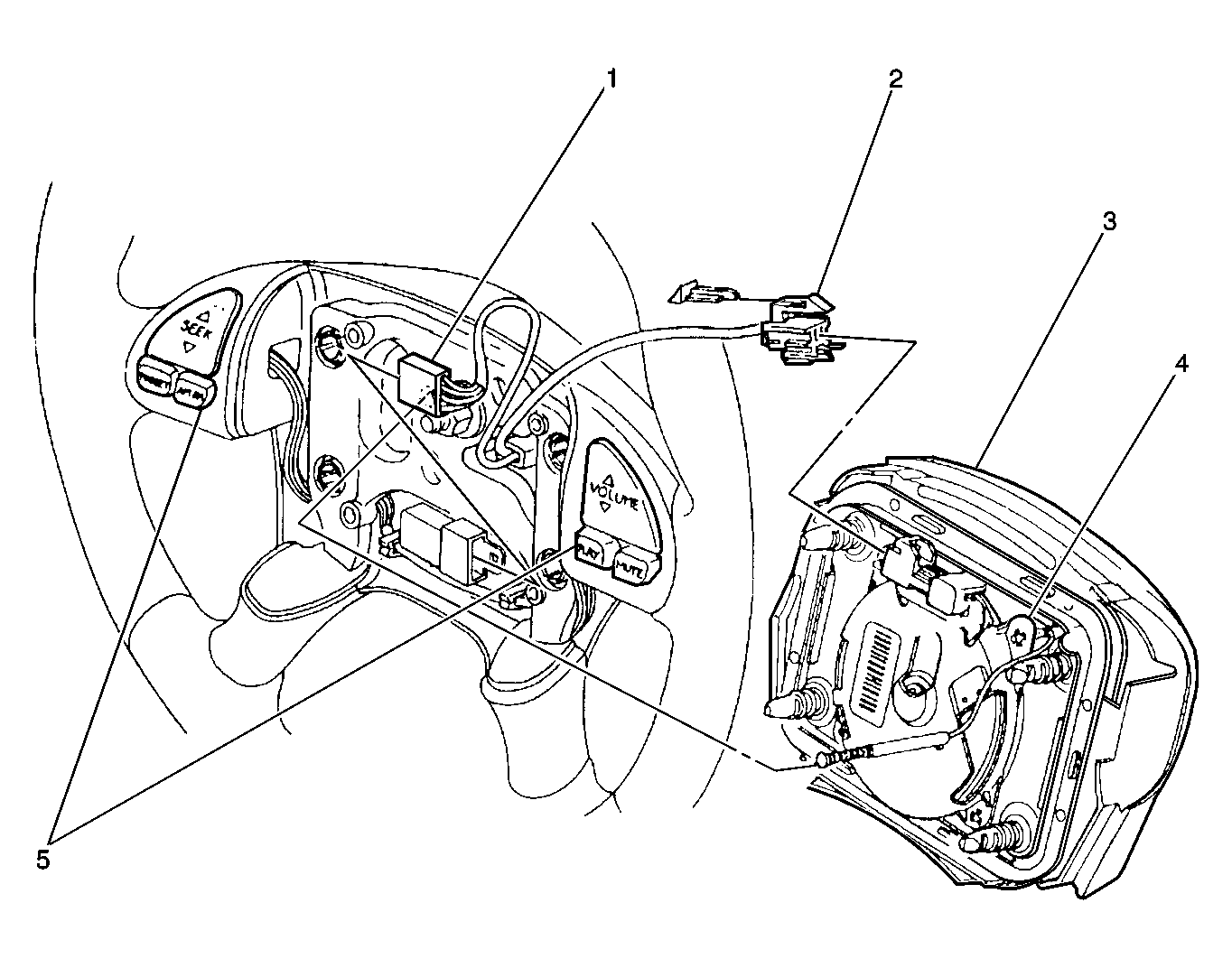

Fig 6: Pontiac Steering Wheel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Connector to Steering Wheel Controls
2	Connector from Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint Steering Wheel Module
4	Horn Switch
5	Steering Wheel Controls

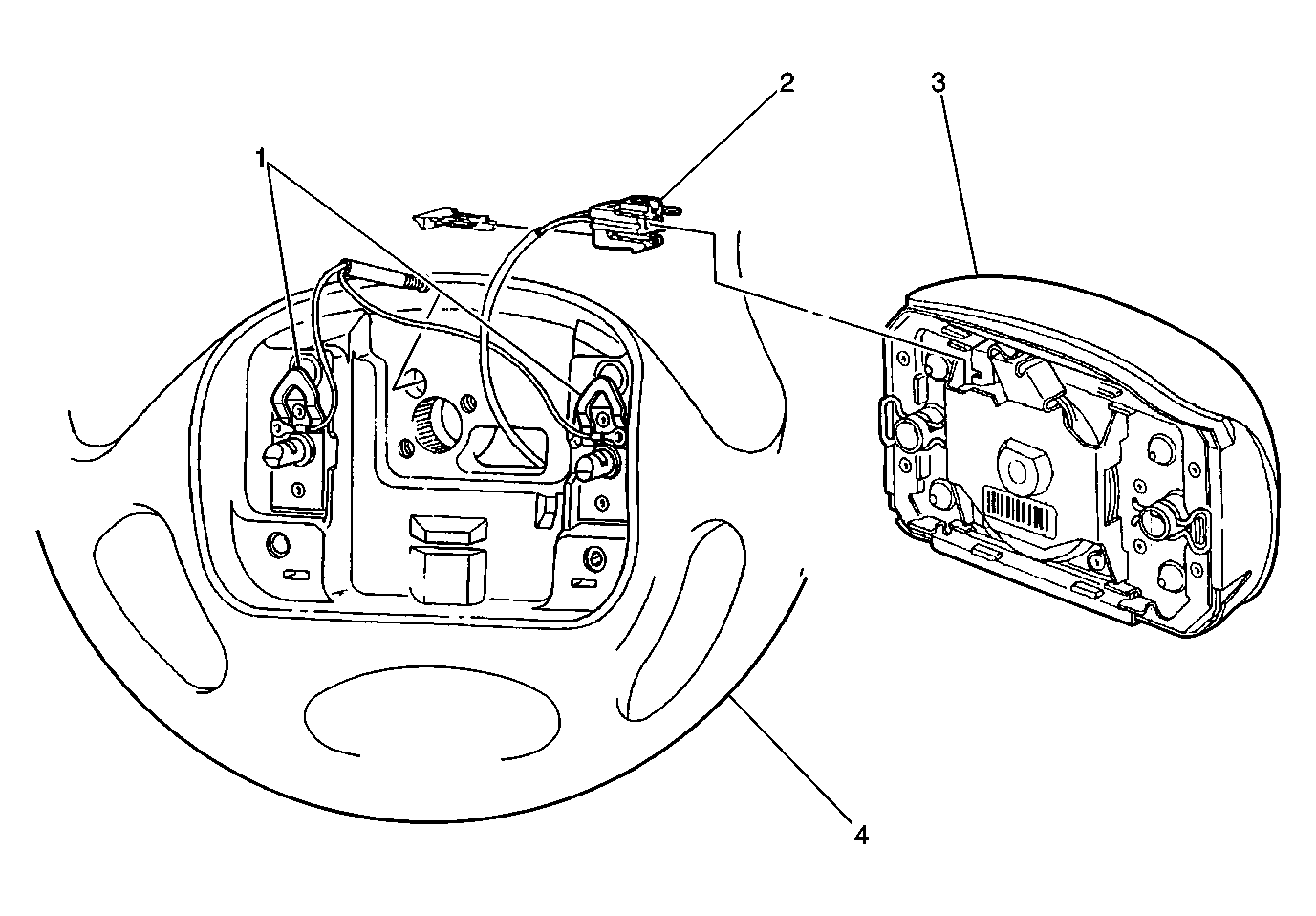

Fig 7: Chevrolet Steering Wheel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switches
2	Connector from Inflatable Restraint Wheel Module
3	Inflatable Restraint Steering Wheel Module
4	Steering Wheel

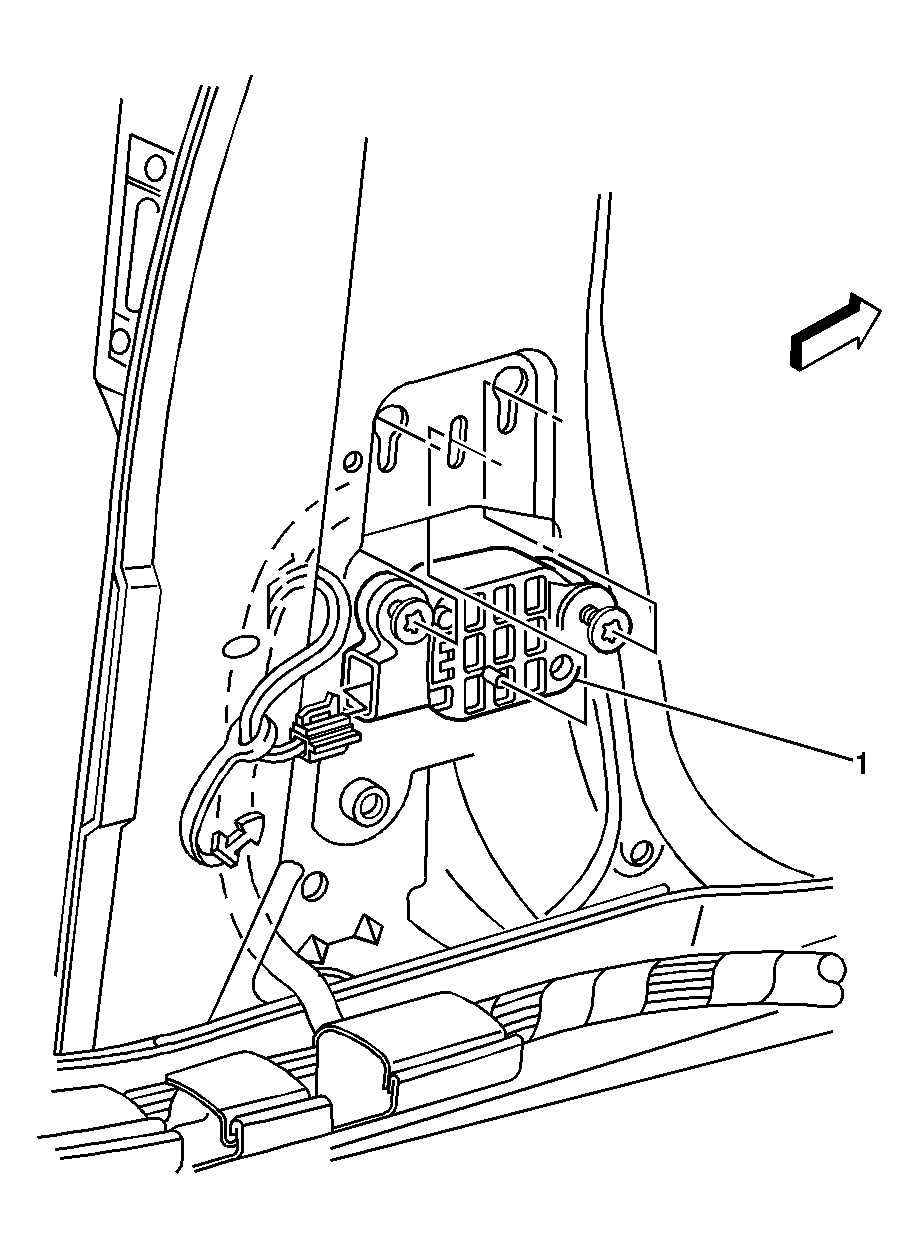

Fig 8: Left Side of Vehicle, Lower Part of B Pillar Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Impact Sensor - Left (Right Side Similar)

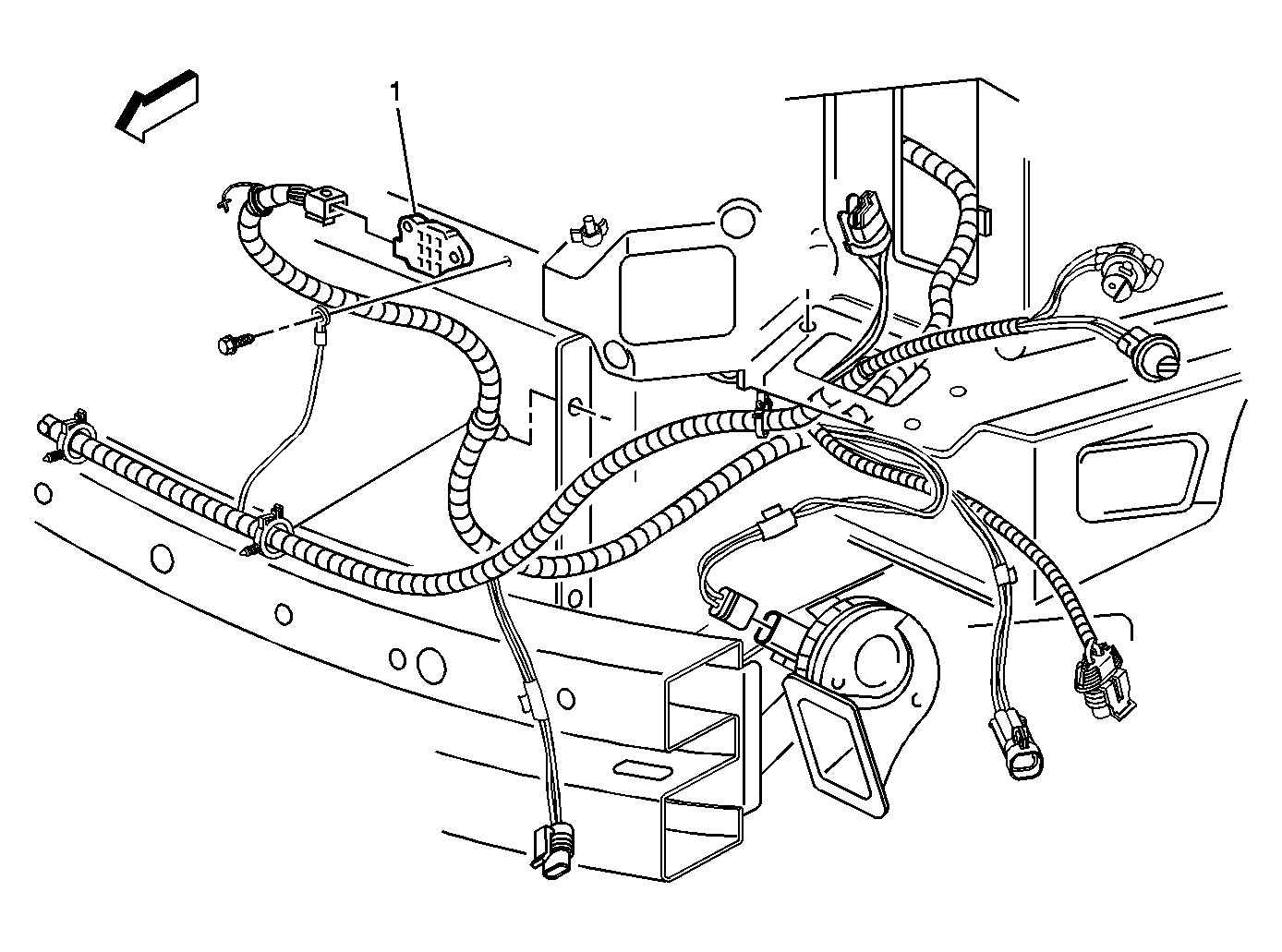

Fig 9: Front of Radiator Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Frontal Sensor - Left (Right Similar)

Fig 10: Underside of Drivers Seat Component Views

Courtesy of GENERAL MOTORS CORP.

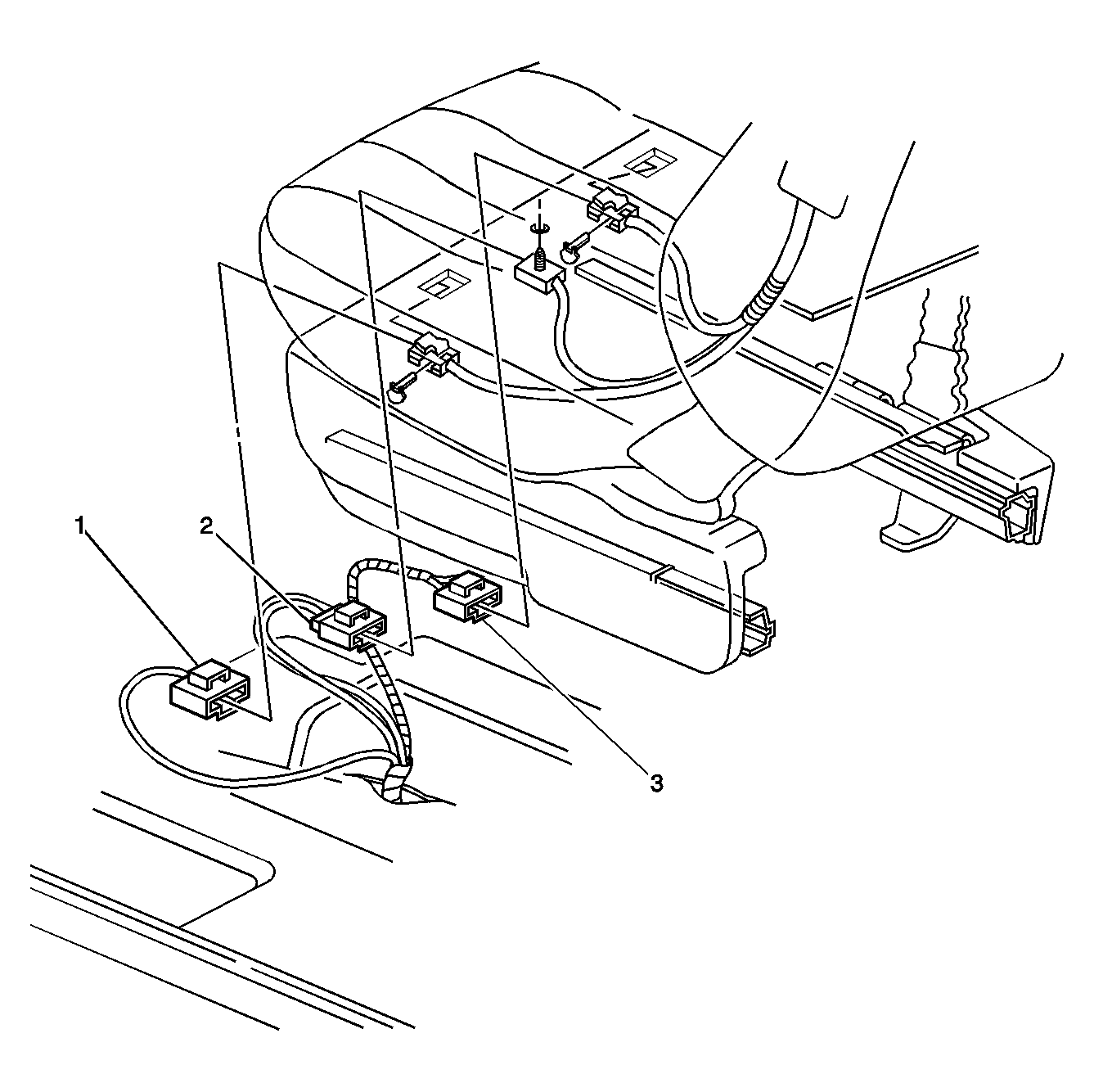

Fig 11: Underside of Right Front Passenger Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Right
2	C314
3	Side Impact Module - Right
