Ground Distribution Schematics

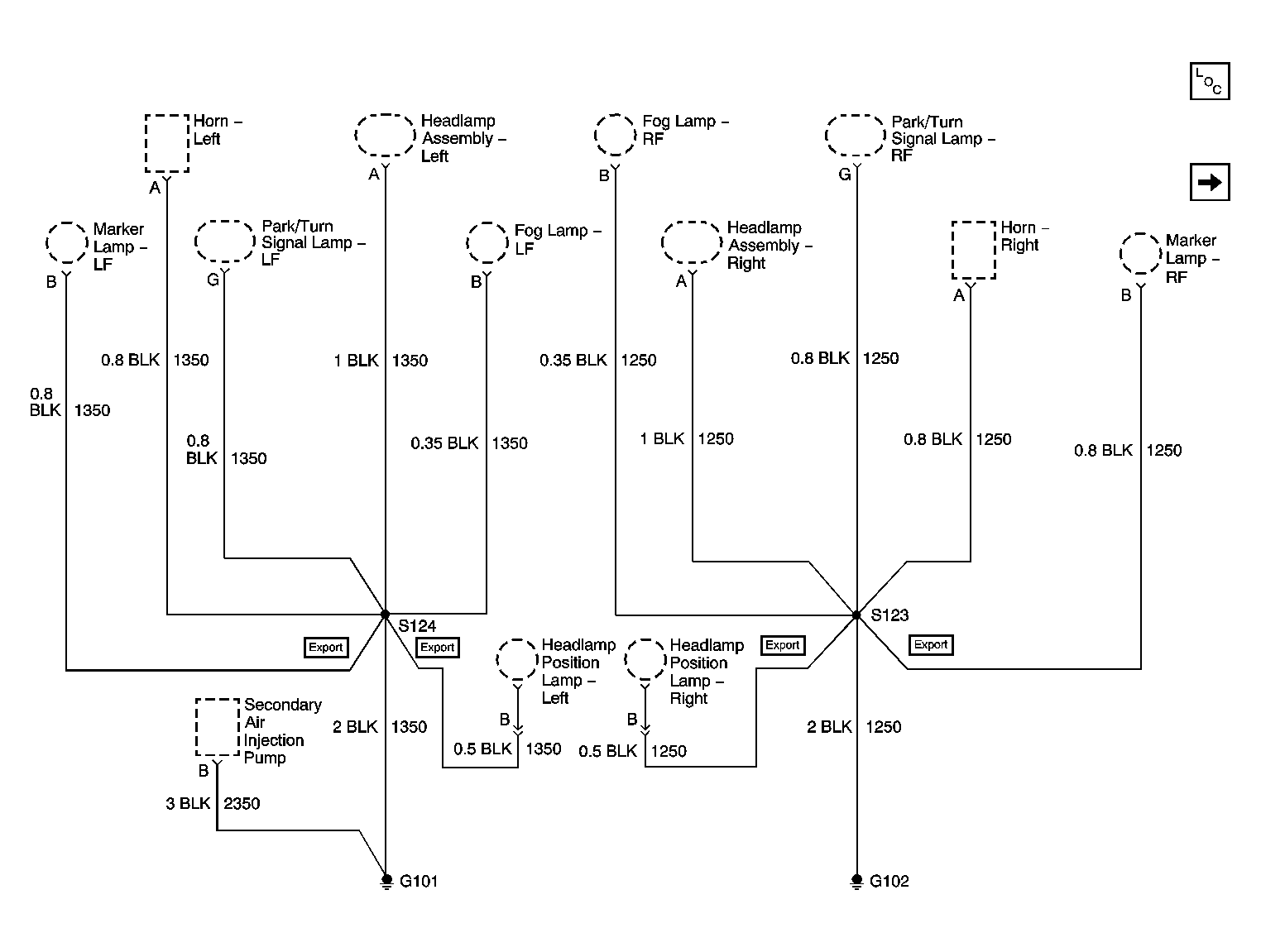

Fig 1: G101 and G102 Schematic

GM771843

Courtesy of GENERAL MOTORS CORP.

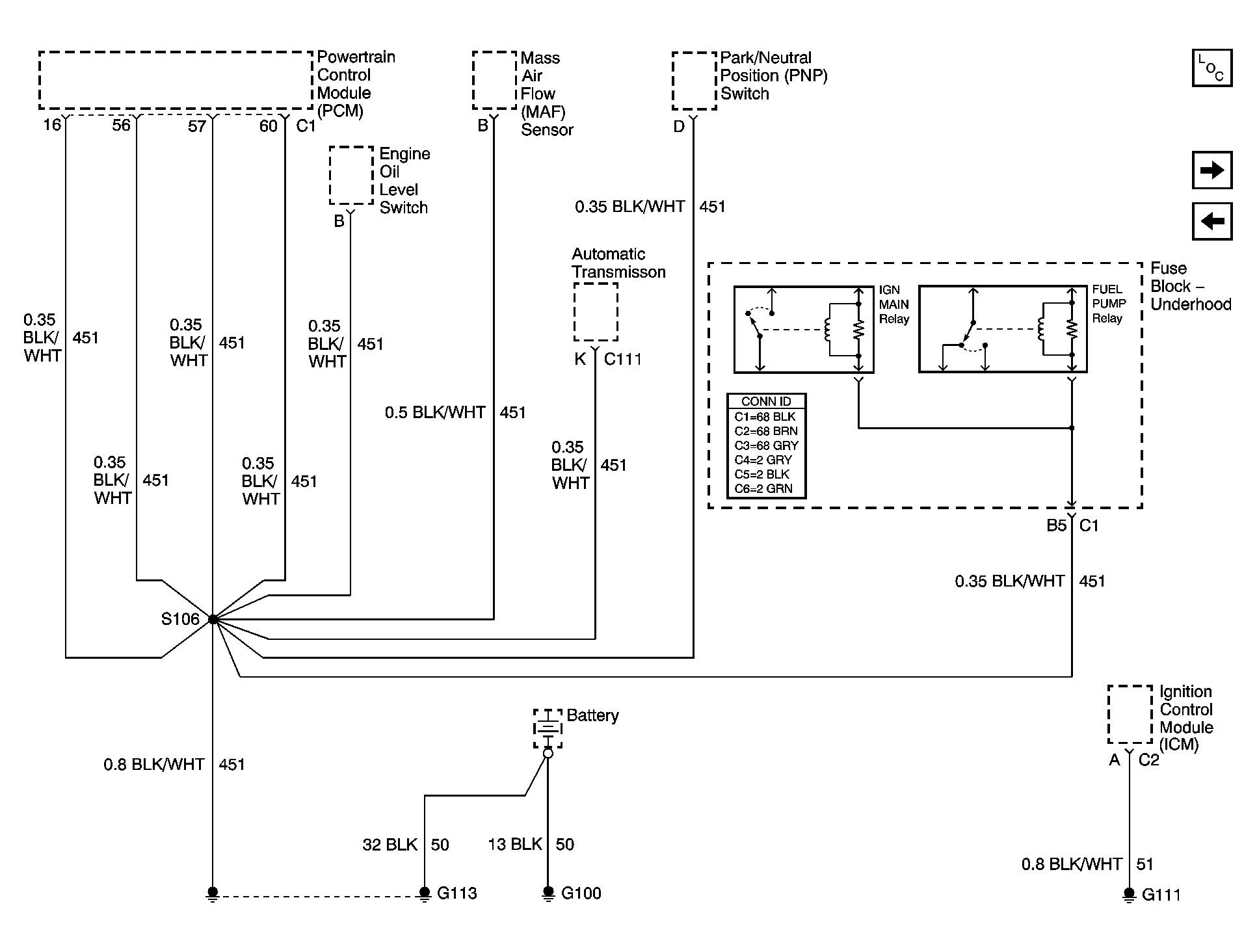

Fig 2: G101, G111, and G113 Schematic

GM771845

Courtesy of GENERAL MOTORS CORP.

Fig 3: G114 and G117 Schematic

GM771848

Courtesy of GENERAL MOTORS CORP.

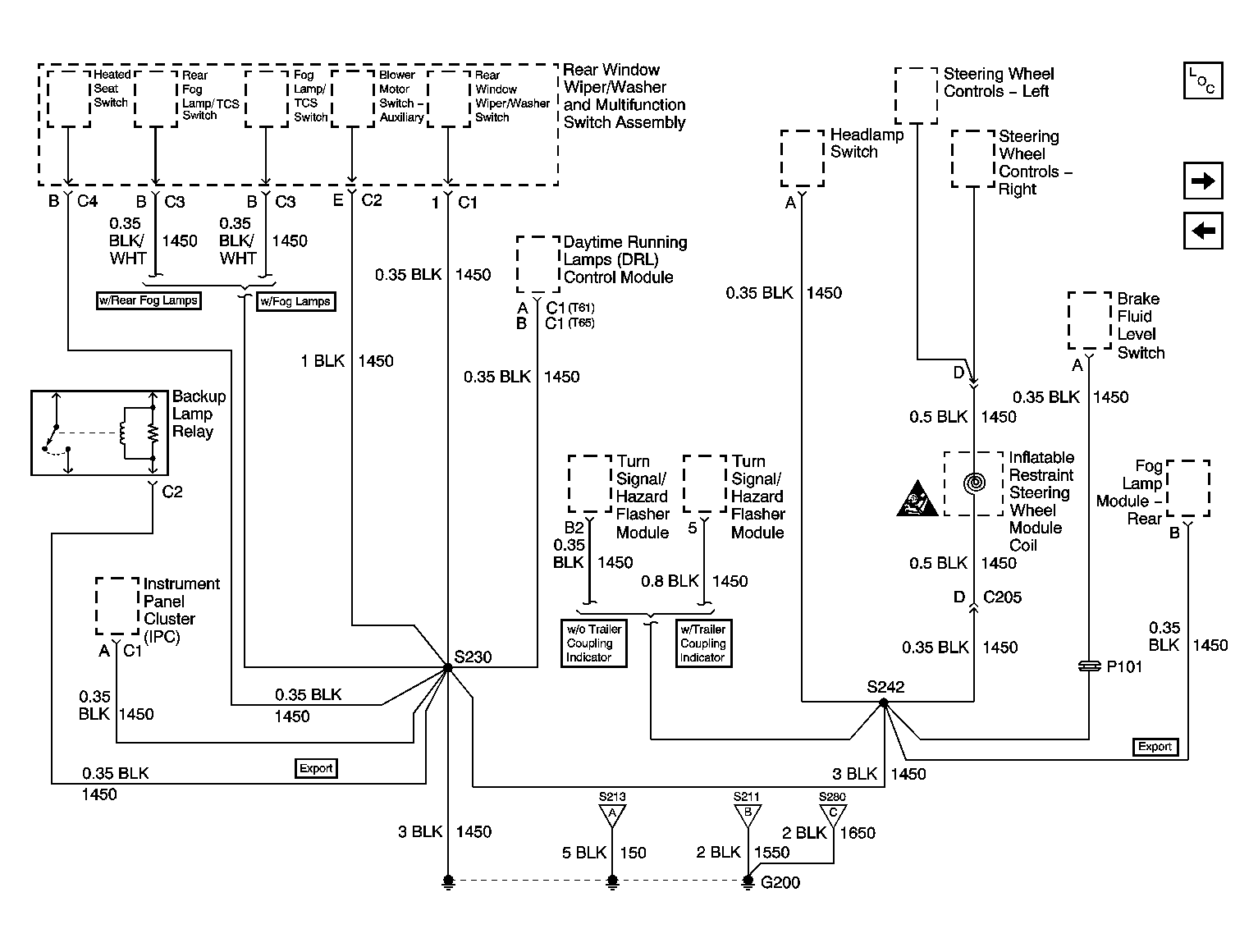

Fig 4: G200 Schematic - 1 of 3

GM771851

Courtesy of GENERAL MOTORS CORP.

Fig 5: G200 Schematic - 2 of 3

GM771853

Courtesy of GENERAL MOTORS CORP.

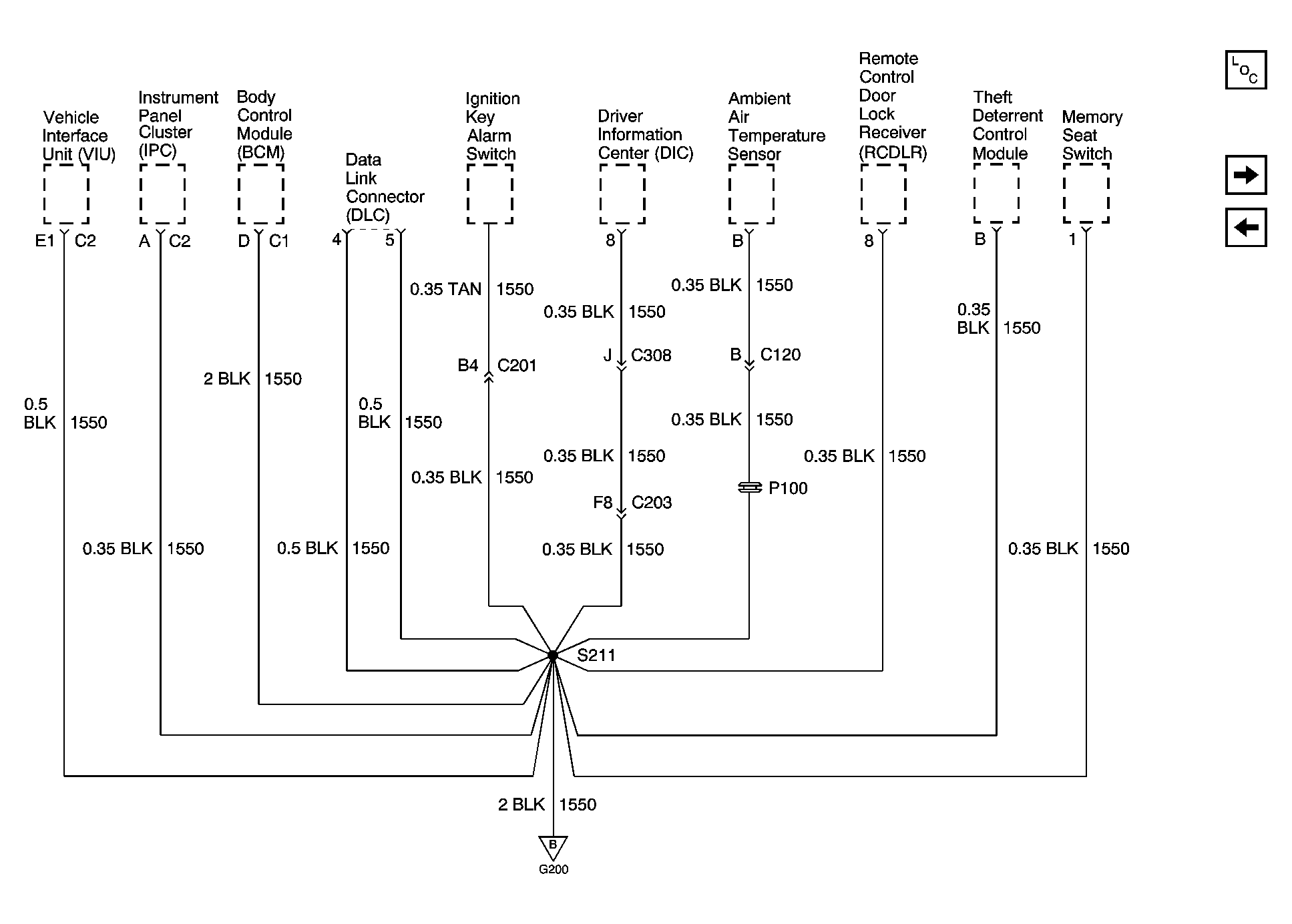

Fig 6: G200 Schematic - 3 of 3

GM771856

Courtesy of GENERAL MOTORS CORP.

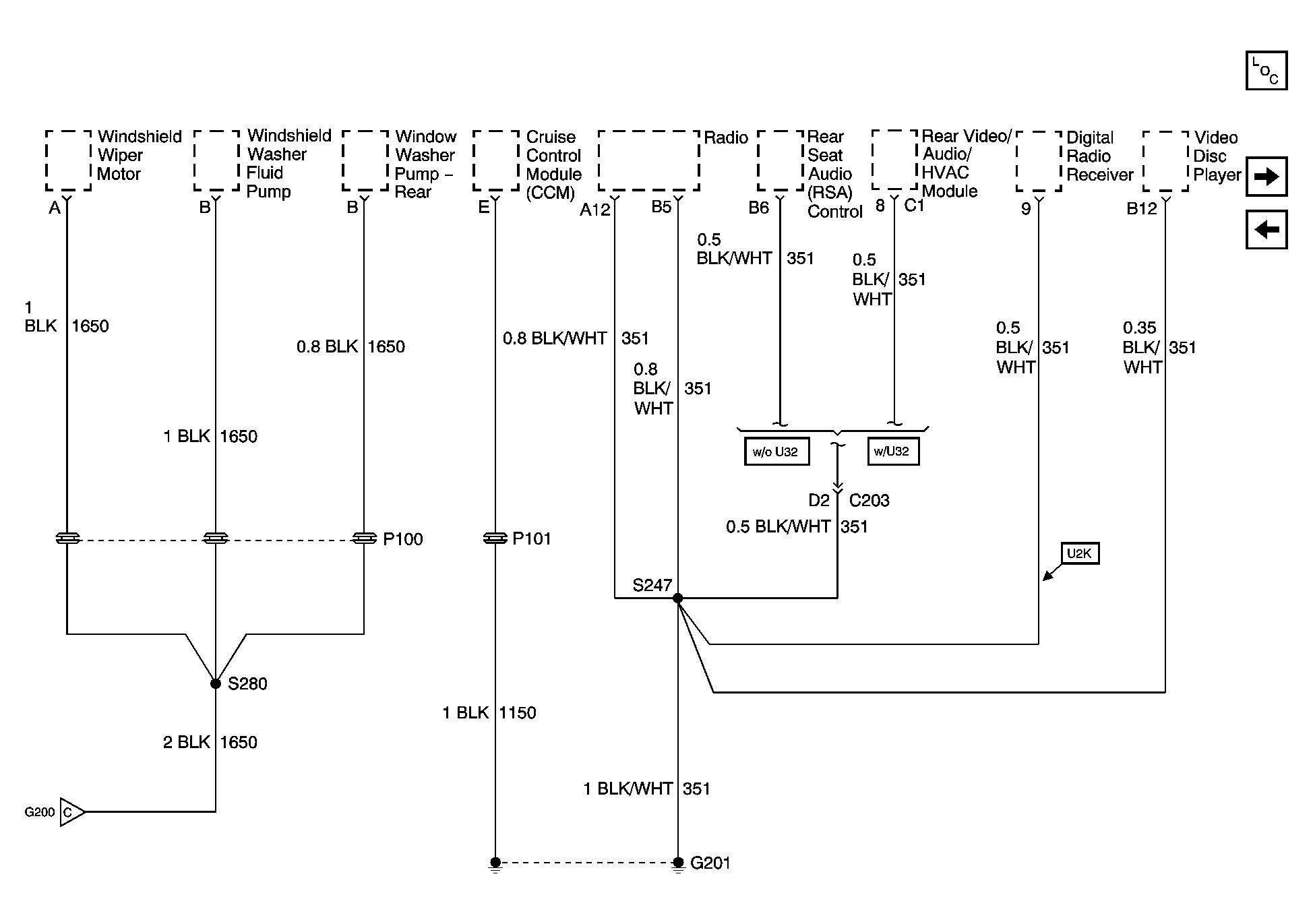

Fig 7: G201 Schematic

GM1242811

Courtesy of GENERAL MOTORS CORP.

Fig 8: G210 and G301 Schematic

GM771858

Courtesy of GENERAL MOTORS CORP.

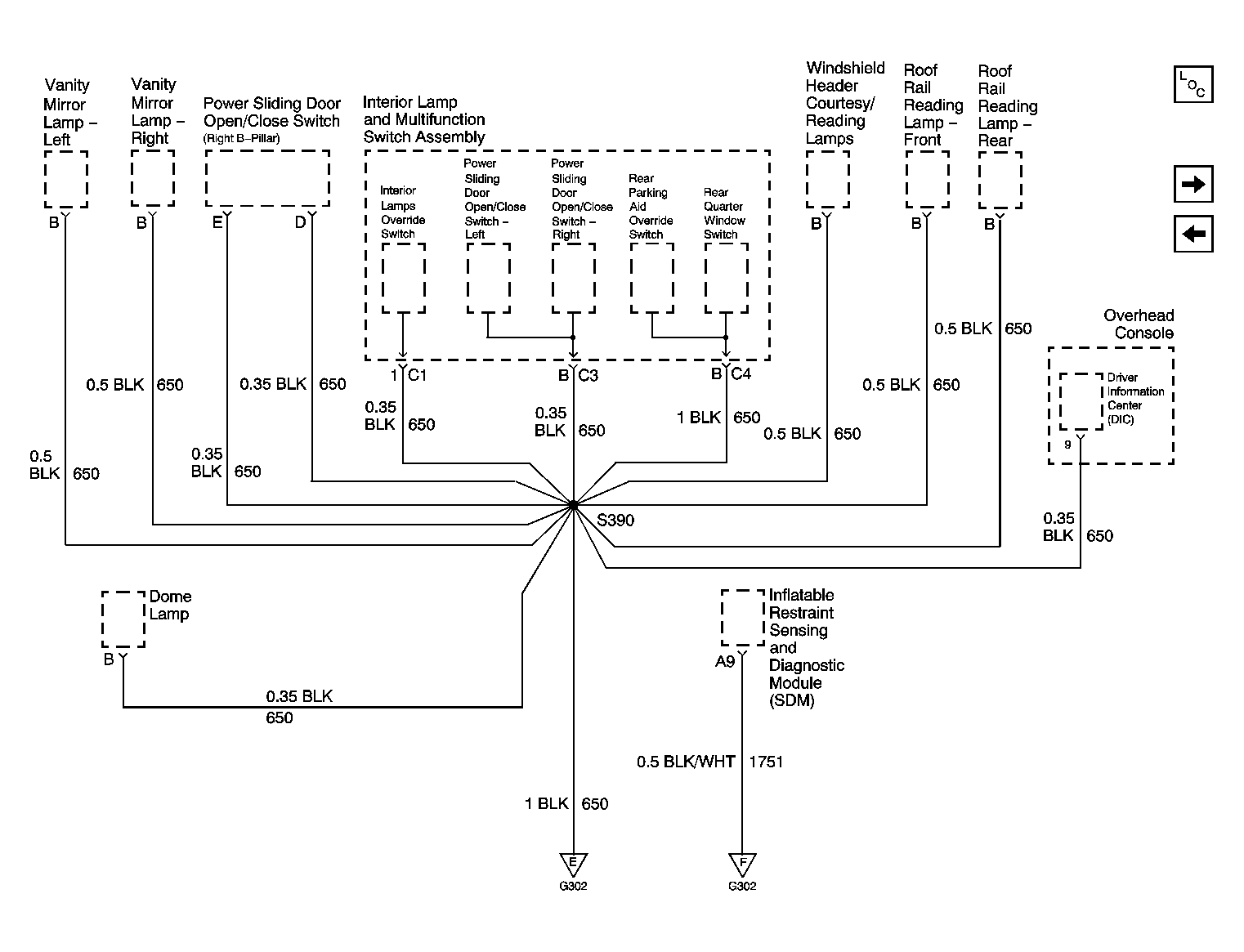

Fig 9: G302 Schematic - 1 of 3

GM771859

Courtesy of GENERAL MOTORS CORP.

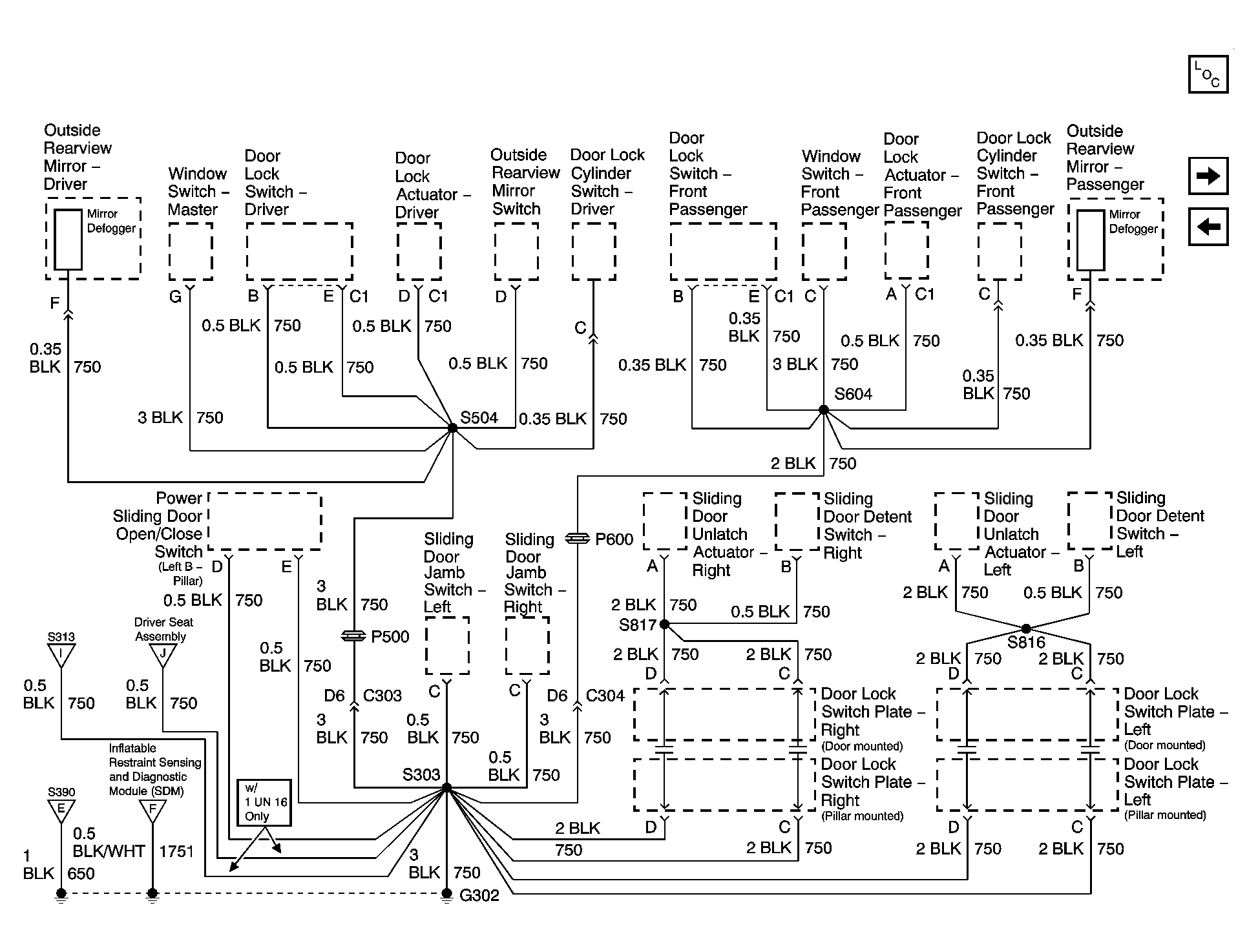

Fig 10: G302 Schematic - 2 of 3

GM771860

Courtesy of GENERAL MOTORS CORP.

Fig 11: G302 Schematic - 3 of 3

GM771862

Courtesy of GENERAL MOTORS CORP.

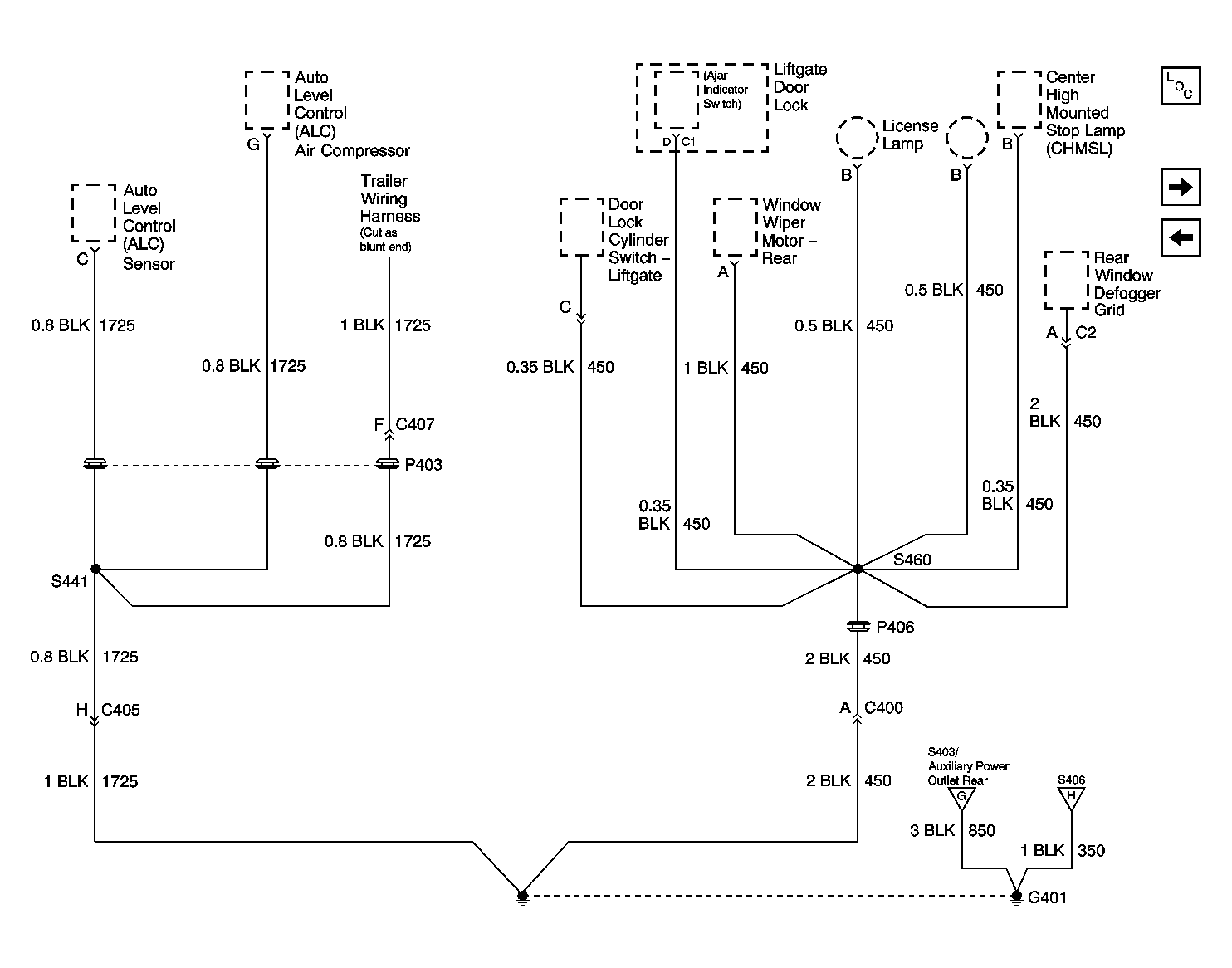

Fig 12: G401 Schematic

GM857790

Courtesy of GENERAL MOTORS CORP.

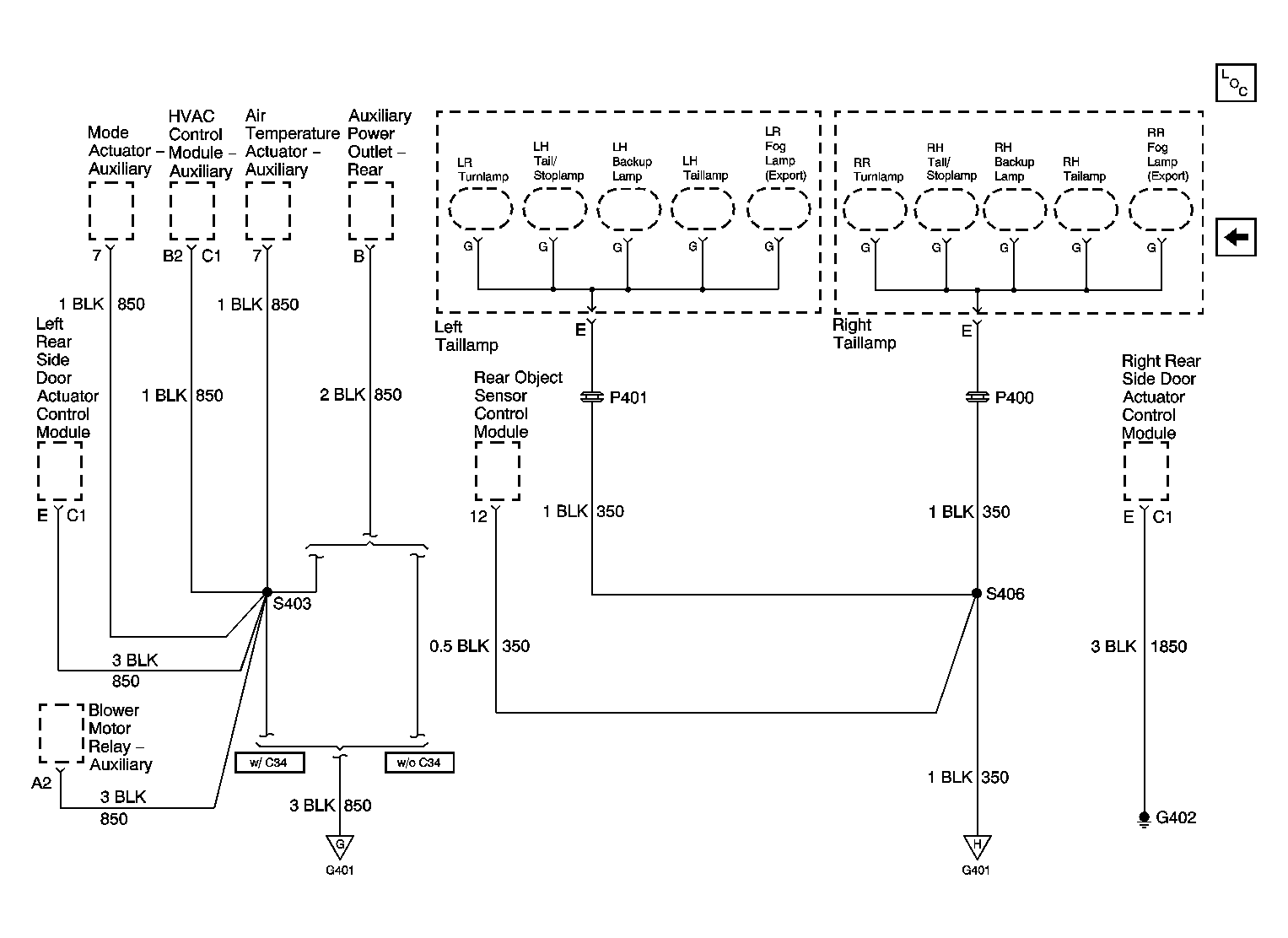

Fig 13: G401 and G402 Schematic

GM771865

Courtesy of GENERAL MOTORS CORP.
