Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Align the tail lamp locking guide pins to the body.
  3. Press the tail lamp into the locking guide pin holes.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screws to the tail lamp.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  5. Close the liftgate.

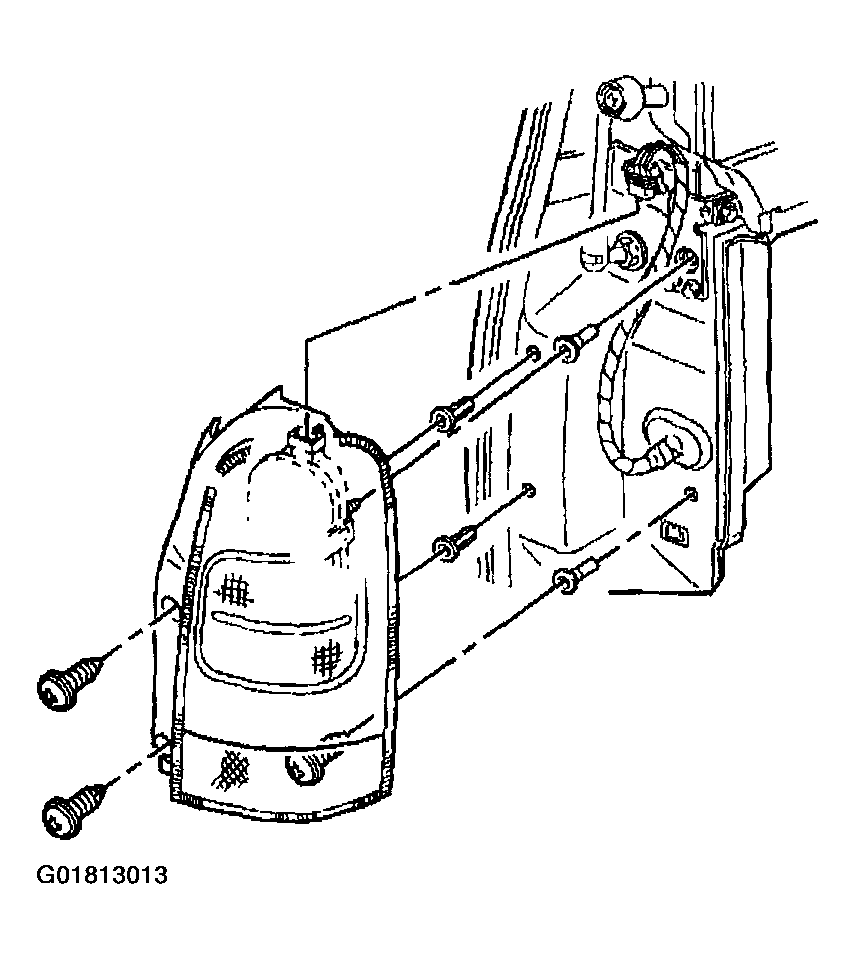

    Fig 1: Installing Screws & Tail Lamp
    G01813013Courtesy of GENERAL MOTORS CORP.
