Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the repeater lamp.
  2. Align the repeater lamp retaining tabs with the slots in the front fender.
  3. Push the repeater lamp into the hole in the front fender until the retaining tabs snap into place

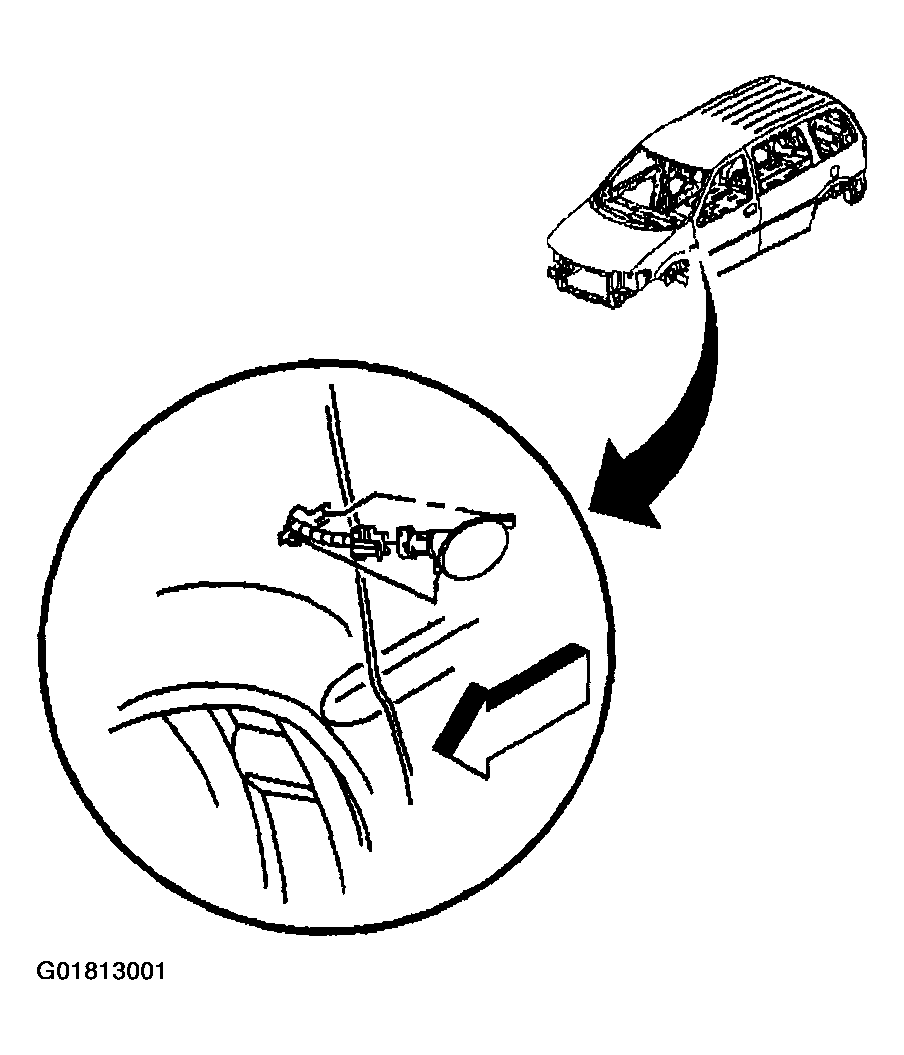

    Fig 1: Installing Repeater Lamp From Vehicle
    G01813001Courtesy of GENERAL MOTORS CORP.
