Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the high-mounted stop lamp to the body.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the high-mounted stop lamp.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

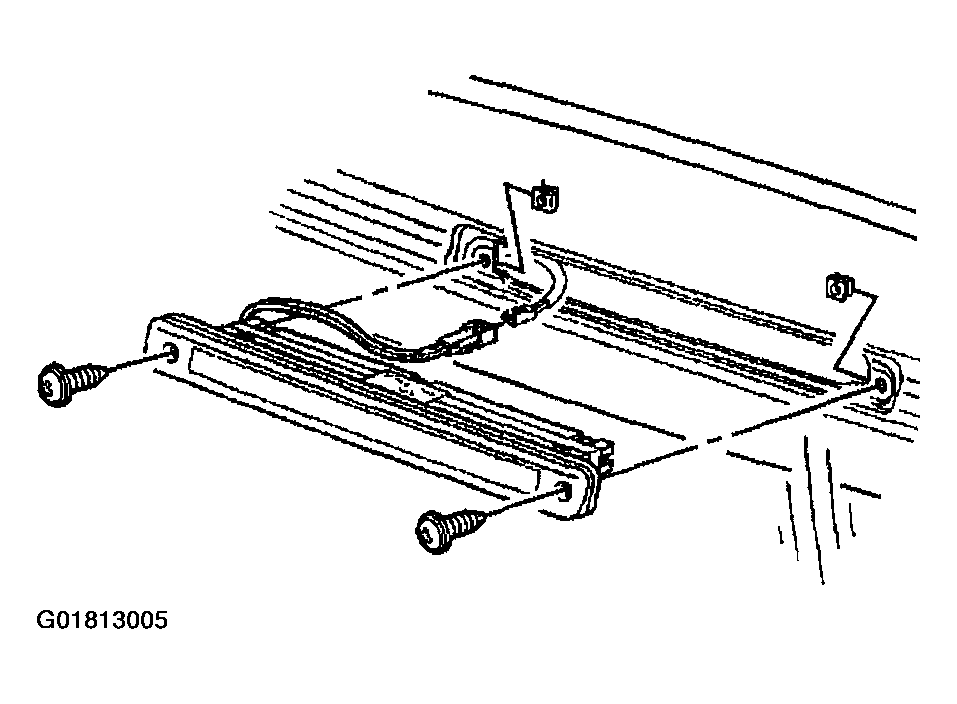

    Fig 1: Installing Screws & High-Mounted Stop Lamp
    G01813005Courtesy of GENERAL MOTORS CORP.
