Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - IP CLUSTER .
  2. Pull out on the headlamp switch in order to release the clips.
  3. Remove the headlamp switch.
  4. Disconnect the electrical connector.

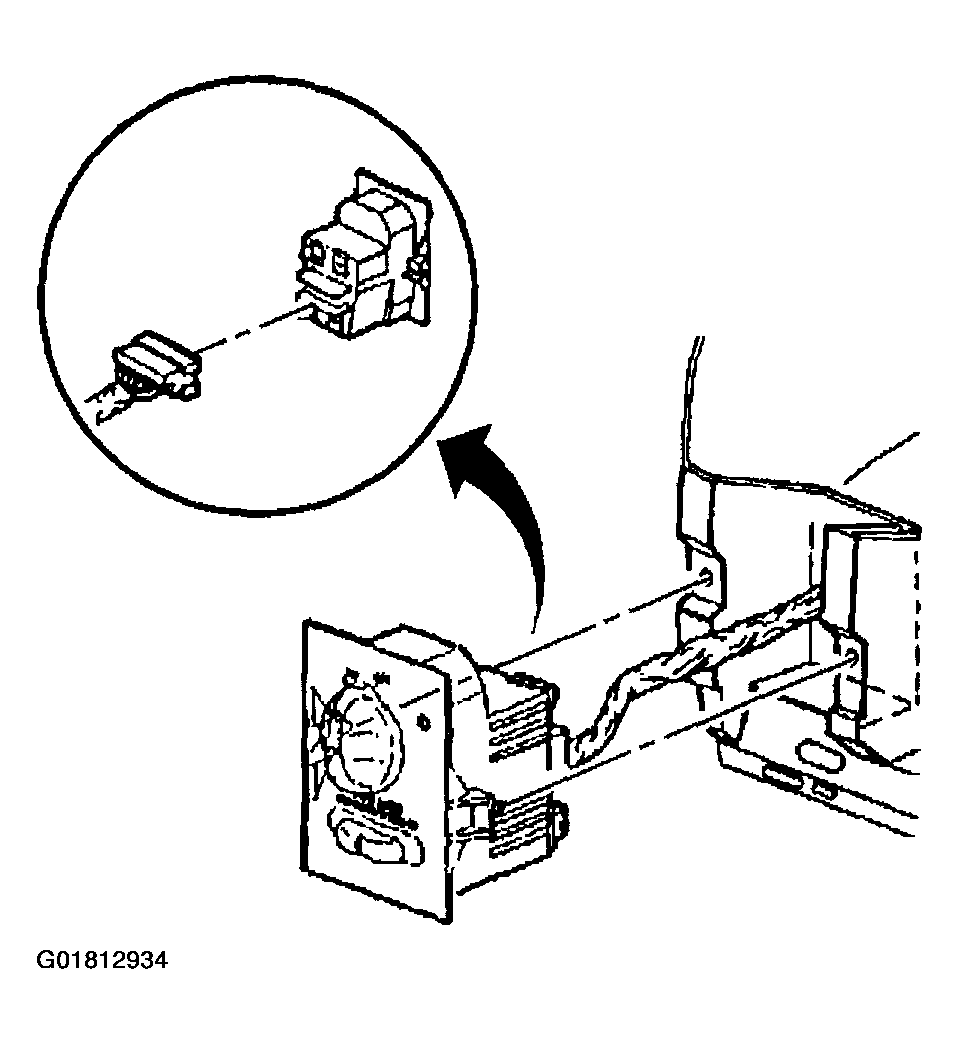

    Fig 1: Removing Headlamp Switch
    G01812934Courtesy of GENERAL MOTORS CORP.
