Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fog lamp to the front bumper fascia.
    NOTE: Refer to FASTENER NOTICE .
    Fig 1: Installing Fog Lamp & Front Bumper Fascia
    G01812992Courtesy of GENERAL MOTORS CORP.
  2. Install the fog lamp nuts to the fog lamp.

    Tighten

    Tighten the nuts to 2 N.m (18 lb in).

  3. Install the fog lamp bulb/socket to the fog lamp rotating clockwise until fully seated.

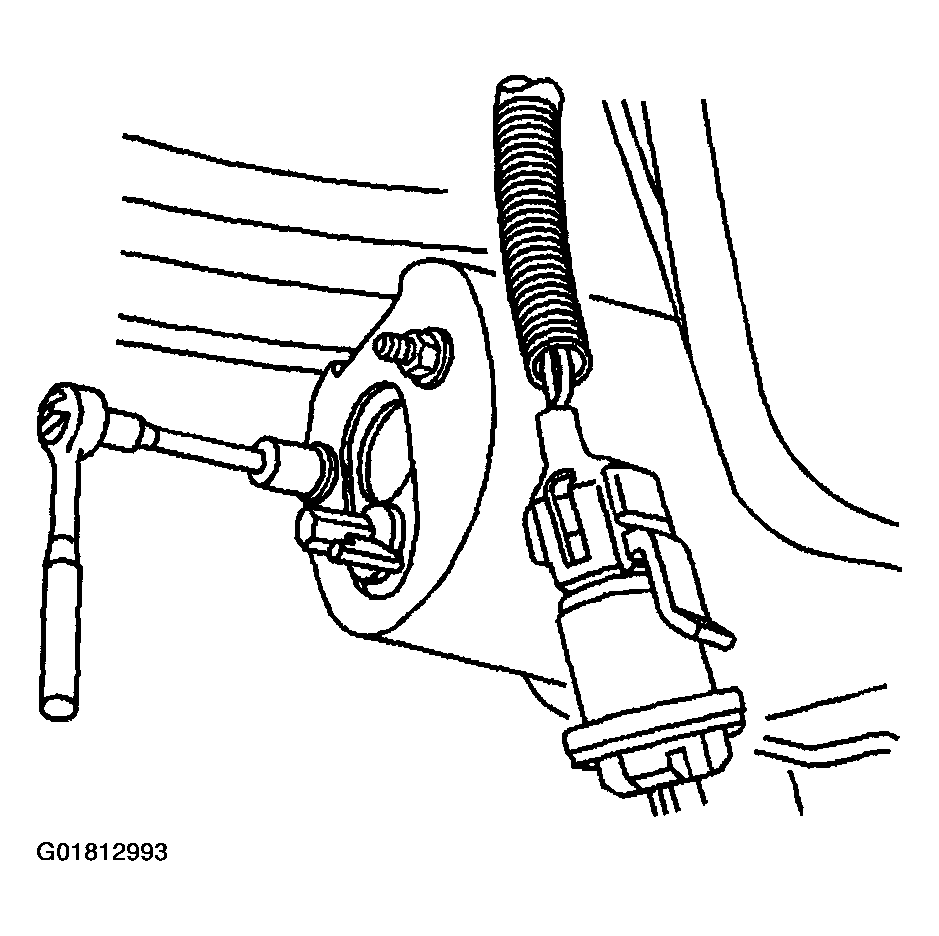

    Fig 2: Installing Nuts & Fog Lamp
    G01812993Courtesy of GENERAL MOTORS CORP.
  4. Install the front fender liner. Refer to FENDER LINER REPLACEMENT .

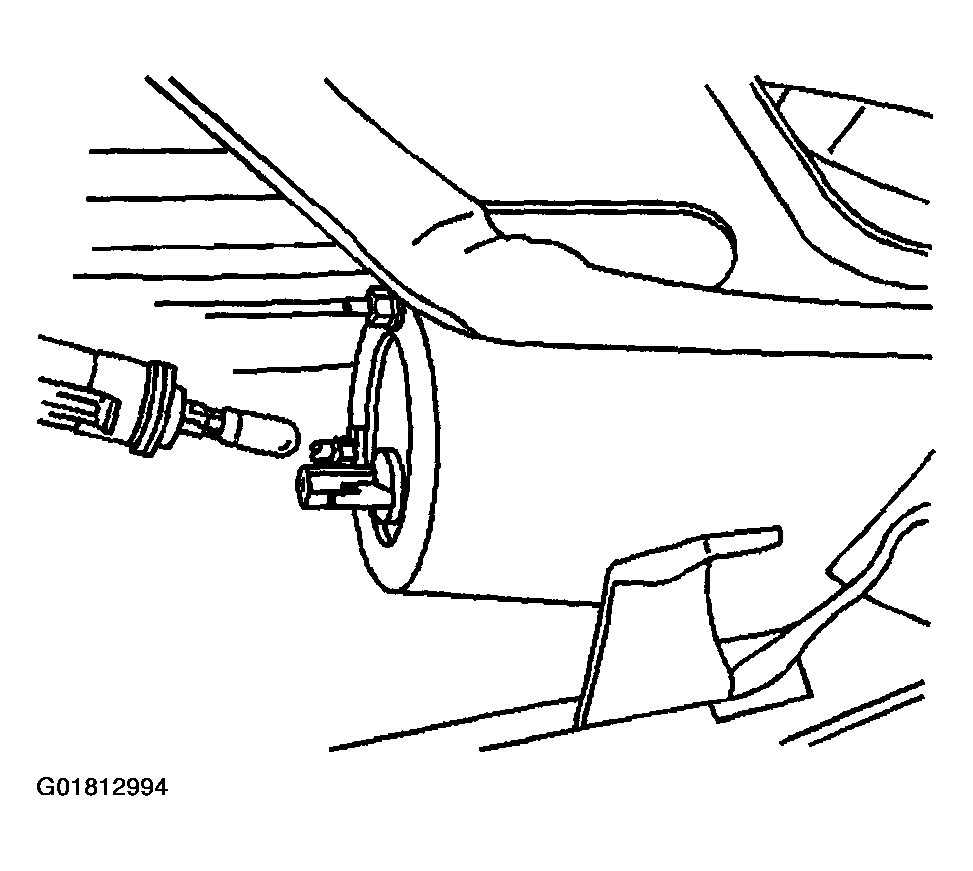

    Fig 3: Installing Fog Lamp Bulb/Socket
    G01812994Courtesy of GENERAL MOTORS CORP.
