Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  in Instrument Panel, Gages and Console.
  2. Remove the security indicator lamp from the instrument panel upper trim:
    1. Rotate the lamp counterclockwise to approximately 1/4 turn.
    2. Pull the lamp out.
  3. Disconnect the security indicator lamp electrical connector from the security indicator lamp.

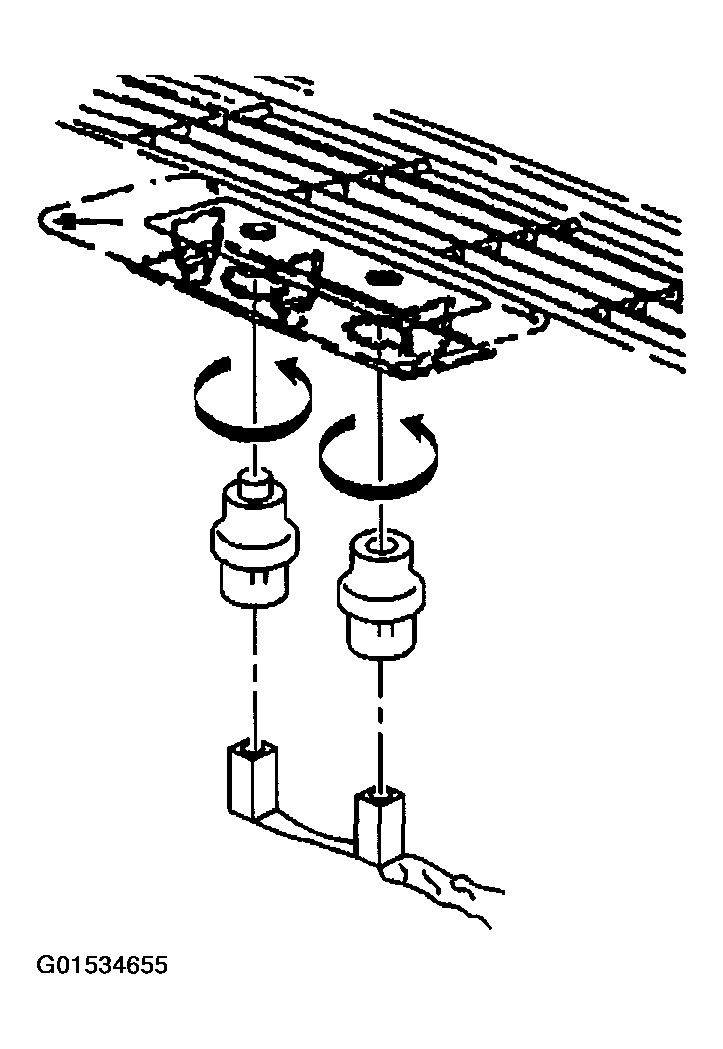

    Fig 1: Removing Security Indicator Lamp From Instrument Panel Upper Trim
    G01534655Courtesy of GENERAL MOTORS CORP.
