Removal Procedure

    Fig 1: View Of Power Sliding Door (PSD) On/Off-Open/Close Overhead Switch
    GM424591Courtesy of GENERAL MOTORS CORP.
  1. Insert a small, flat-bladed tool between the interior lamp/multifunction switch/reading lamp housing and the overhead console.
  2. Press inward and down in order to release the interior lamp/multifunction switch/reading lamp housing from the overhead console.
    3. Fig 2: View Of Power Sliding Door (PSD) On/Off-Open/Close Overhead Switch Removed
    GM313945Courtesy of GENERAL MOTORS CORP.
  3. Remove the interior lamp/multifunction switch/reading lamp housing from the overhead console.
  4. Disconnect the electrical connectors from the interior lamp/multifunction switch.

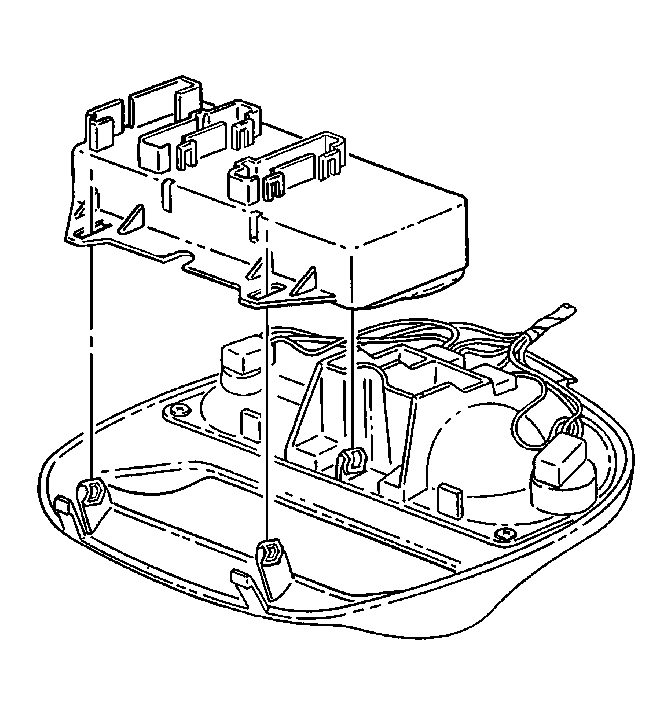

    5. Fig 3: View Of Interior Lamp/Multifunction Switch
    GM313943Courtesy of GENERAL MOTORS CORP.
  5. Remove the interior lamp/multifunction switch by using pliers in order to compress the interior lamp/multifunction switch retainers while pulling switch away from the housing.
