Removal Procedure

  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the front door window. Refer to Window Replacement - Front Door  in Doors.
  3. Remove the front door window regulator. Refer to Window Regulator Replacement - Front Door .
    4. Fig 1: View Of Front Door Outside Handle Assembly
    GM319773Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door outside handle rod from the outside handle.
  5. Remove the lock rod from the outside handle lock cylinder.

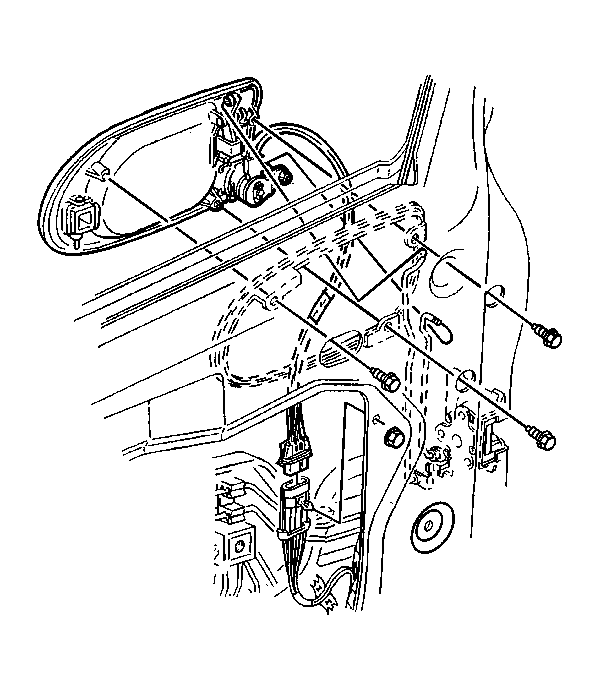

    6. Fig 2: Locating Front Door Lock Module Harness Connector
    GM319767Courtesy of GENERAL MOTORS CORP.
  6. Remove the front door lock module harness connector, if equipped.
    7. Fig 3: Locating Front Door Outside Handle Screws
    GM319765Courtesy of GENERAL MOTORS CORP.
  7. Remove the front door outside handle screws.
  8. Remove the front door outside handle from the front door.
