Removal Procedure

    CAUTION: Refer to SIR Caution in Cautions and Notices.
  1. Disconnect the front seat SIR module electrical connector.
  2. Disconnect the front seat pretensioner electrical connector.

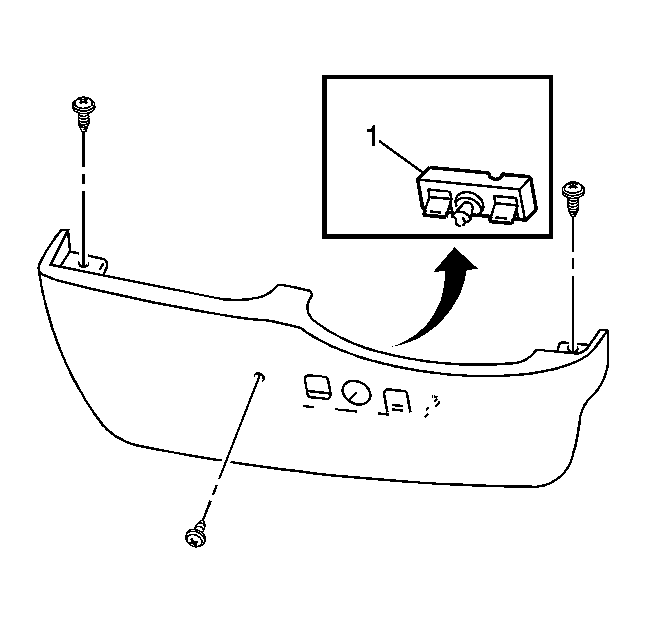

    3. Fig 1: Locating Front Seat Adjuster Switch & Finish Cover
    GM317083Courtesy of GENERAL MOTORS CORP.
  3. Remove the finish cover screws.
  4. Remove the finish cover from the seat adjuster.
  5. Remove the adjuster switch from the finish cover.
  6. Disconnect the adjuster switch electrical connector.
