Installation Procedure

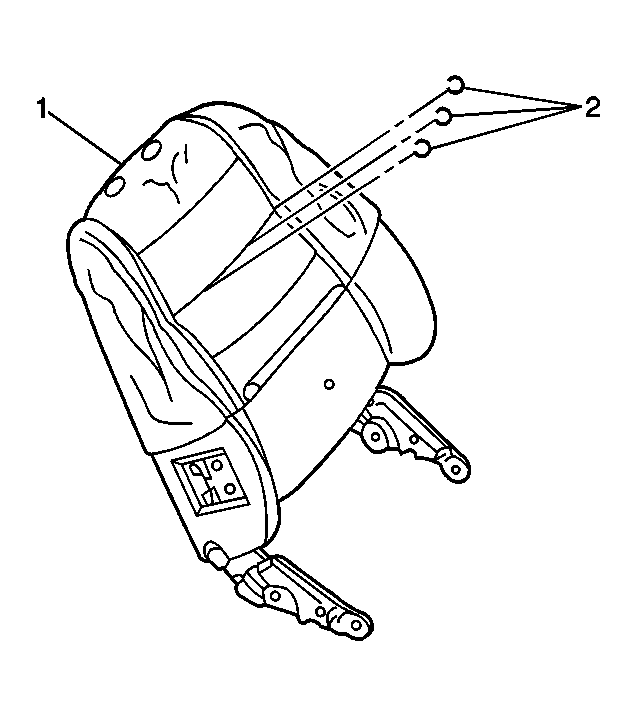

    Fig 1: Locating Seat Back Cover Components
    GM317161Courtesy of GENERAL MOTORS CORP.
  1. Install the seat back cover (1).
  2. Install the seat back cover retainer rings (2).
  3. Secure the seat back cover to the foam pad with the hook and loop retainers.
  4. Install the seat back to the seat cushion.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the front seat recliner bolts.

    Tighten:  Tighten the bolts to 48 N.m (35 lb ft).

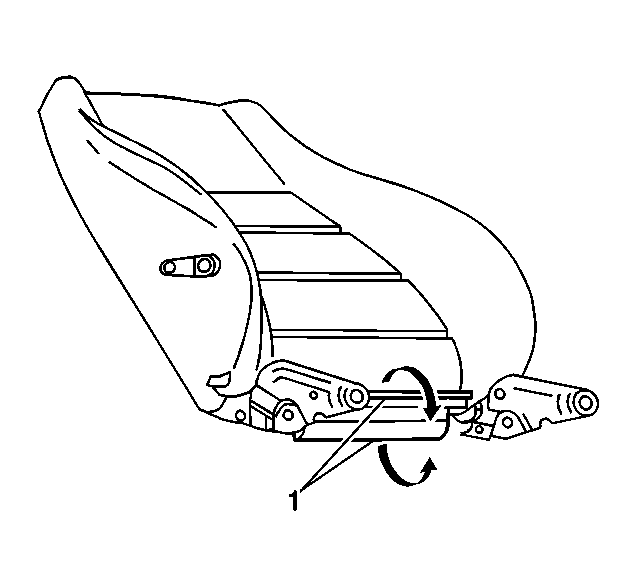

    6. Fig 2: Locating J Retainer
    GM317158Courtesy of GENERAL MOTORS CORP.
  6. Install the J retainer (1) to the bottom edge of the seat back cover.
  7. Install the seat back recliner covers in place.
  8. Install the recliner handle and cap. Refer to Seat Back Recliner Handle Replacement - Front .
  9. Install the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
  10. Install the map pocket net. Refer to Map Pocket Net Replacement - Front Seat .
  11. Install the head restraint. Refer to Head Restraint Replacement - Front Seat .
  12. Install the front seat. Refer to Seat Replacement - Bucket .
