Harness Routing Views

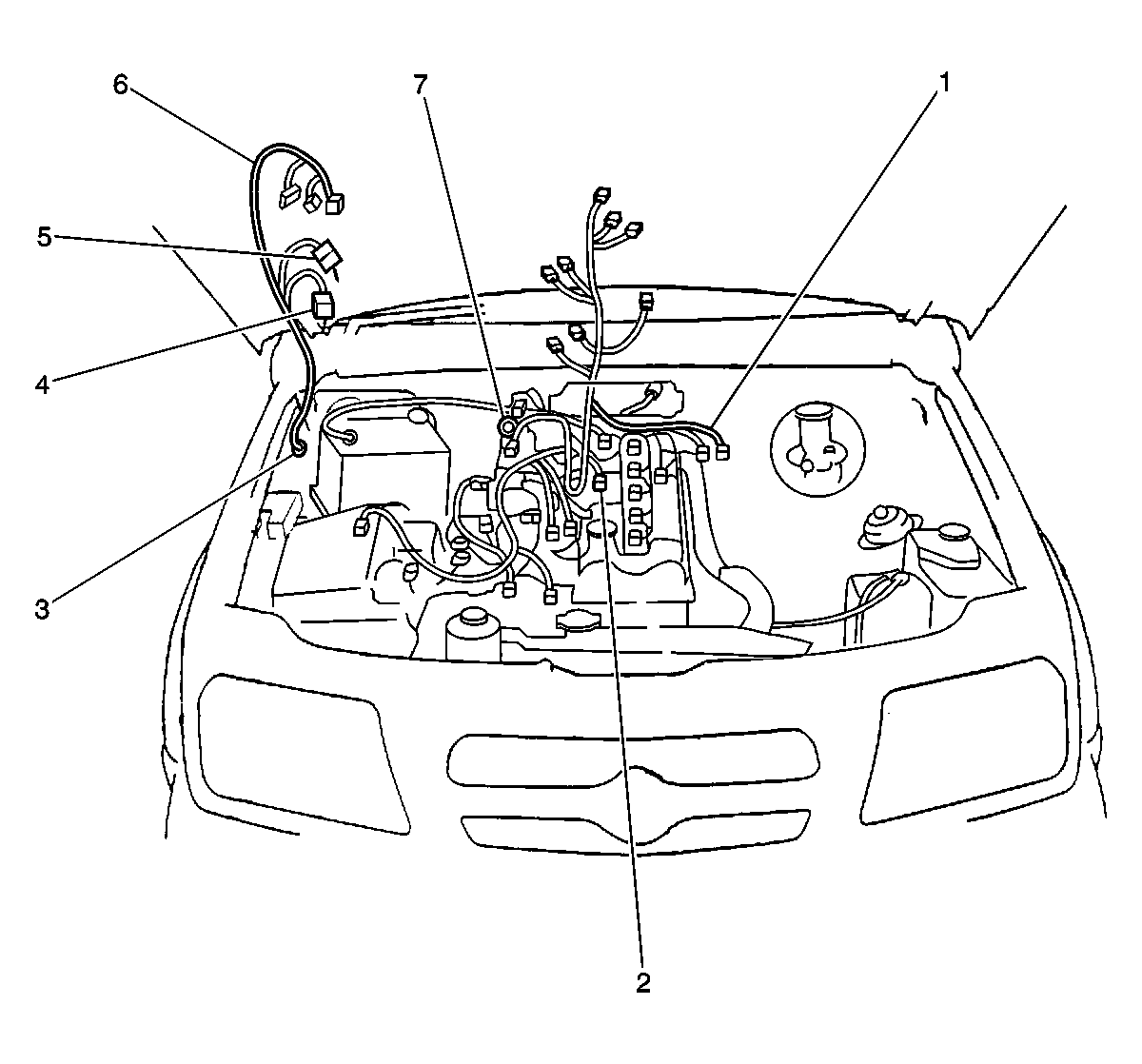

Fig 1: Engine Harness (2.0L)
GM477404Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 C102
3 P100
4 C210-California only
5 C212
6 Engine Harness
7 G103

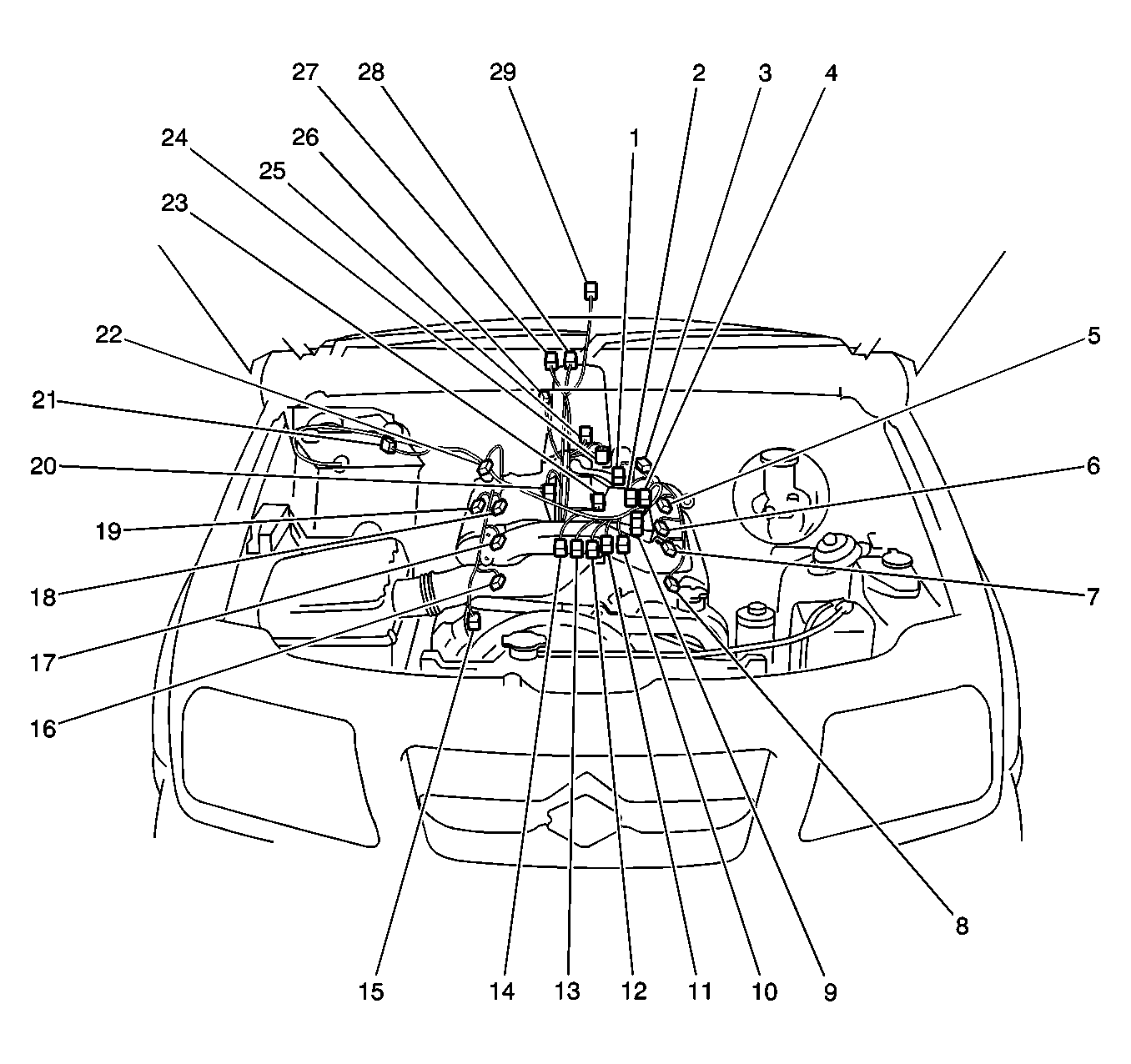

Fig 2: Engine Harness (2.5L)
GM738833Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF) sensor
2 Throttle Position Sensor (TPS)
3 Exhaust Gas Recovery (EGR) valve
4 Idle Air Control Valve
5 Coil 5
6 Camshaft Position (CMP) sensor
7 Coil 3
8 Coil 1
9 C102
10 Engine Coolant Temperature
11 Heated Oxygen Sensor 1
12 Heated Oxygen Sensor 3
13 Heated Oxygen Sensor 2
14 Heated Oxygen Sensor 4
15 Crankshaft Position (CKP) sensor
16 Coil 2
17 Coil 4
18 Coil 6
19 Manifold Absolute Pressure
20 Transmission Range Switch
21 Noise Suppressor
22 EVAP Canister Purge Valve
23 Input Shaft Speed sensor
24 Shift Solenoid
25 Output Shaft Speed sensor
26 EVAP Canister Air Valve
27 Four-Wheel Drive (4WD) Switch
28 Four-Wheel Drive (4WD) Low Switch
29 Vehicle Speed Sensor (VSS)

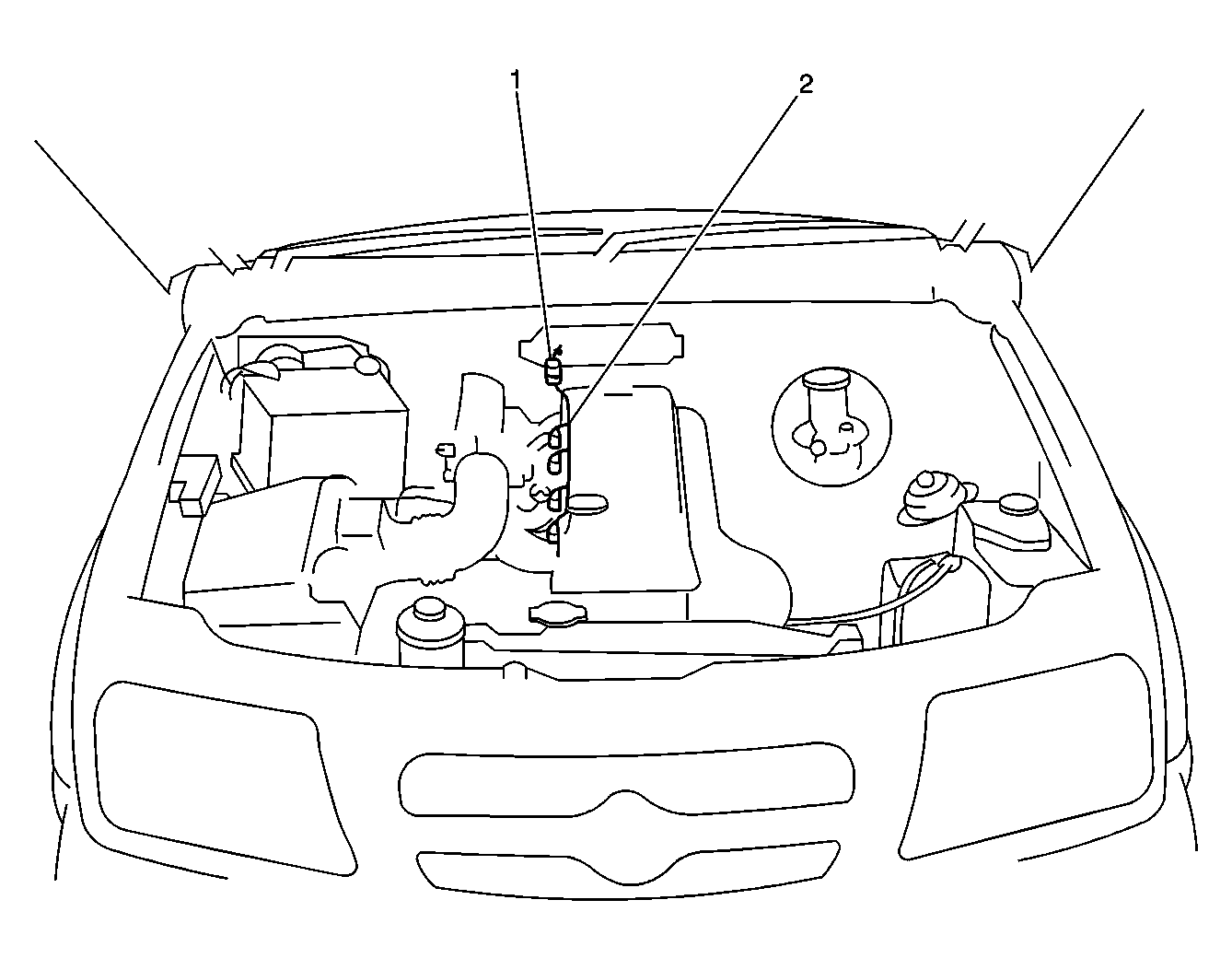

Fig 3: Fuel Injector Harness (1.6L and 2.0L)
GM477380Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C102
2 Fuel Injector Harness

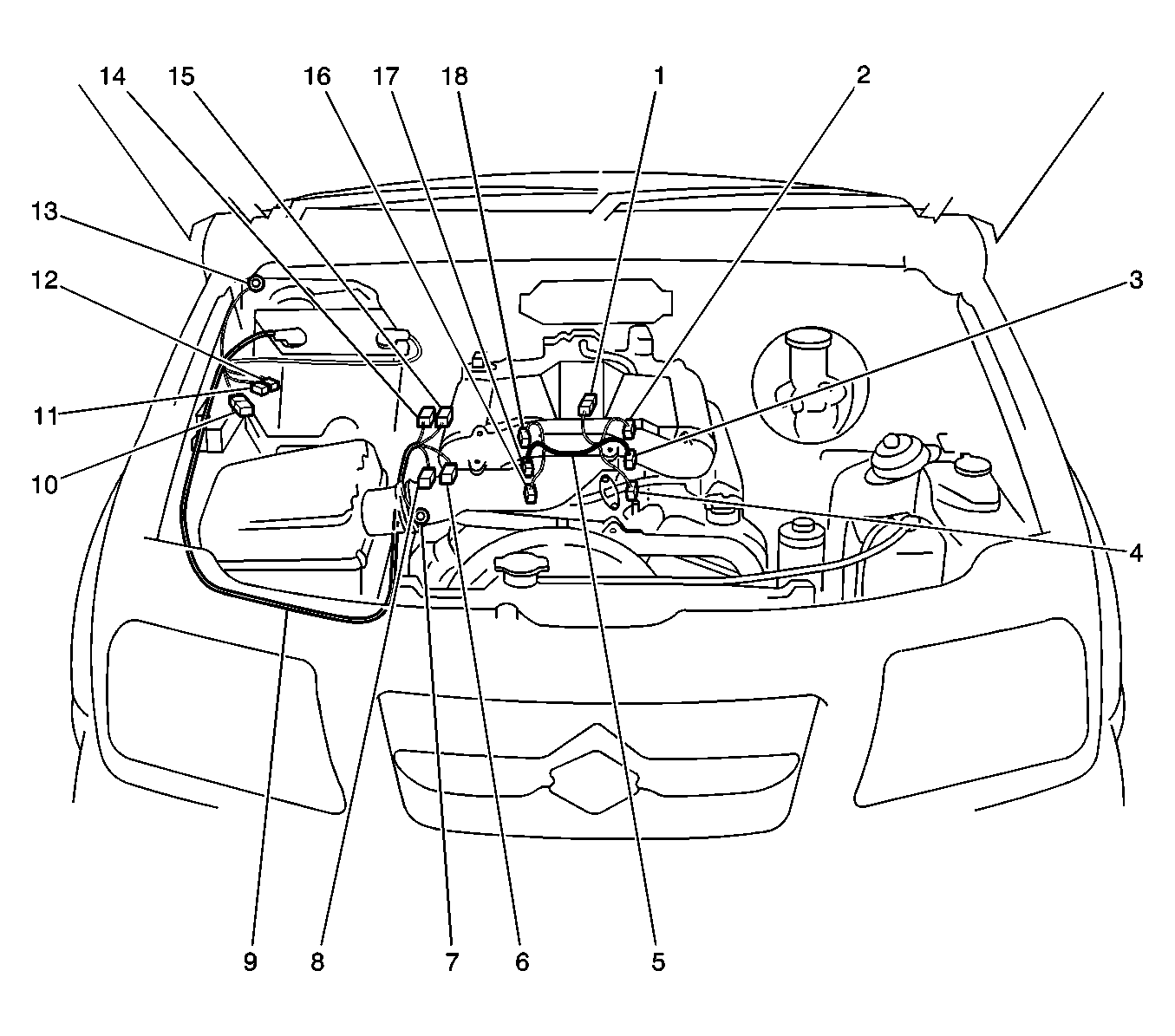

Fig 4: Fuel Injector Harness and Battery Cable Harness (2.5 L)
GM739226Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C102
2 Injector number 5
3 Injector number 3
4 Injector number 1
5 Injector Harness
6 Generator
7 Ground G101
8 Generator
9 Battery Cable
10 C116
11 Fuse Block
12 Fuse Block
13 Ground G100
14 Starter Solenoid
15 Starter Motor
16 Injector number 2
17 Injector number 4
18 Injector number 6

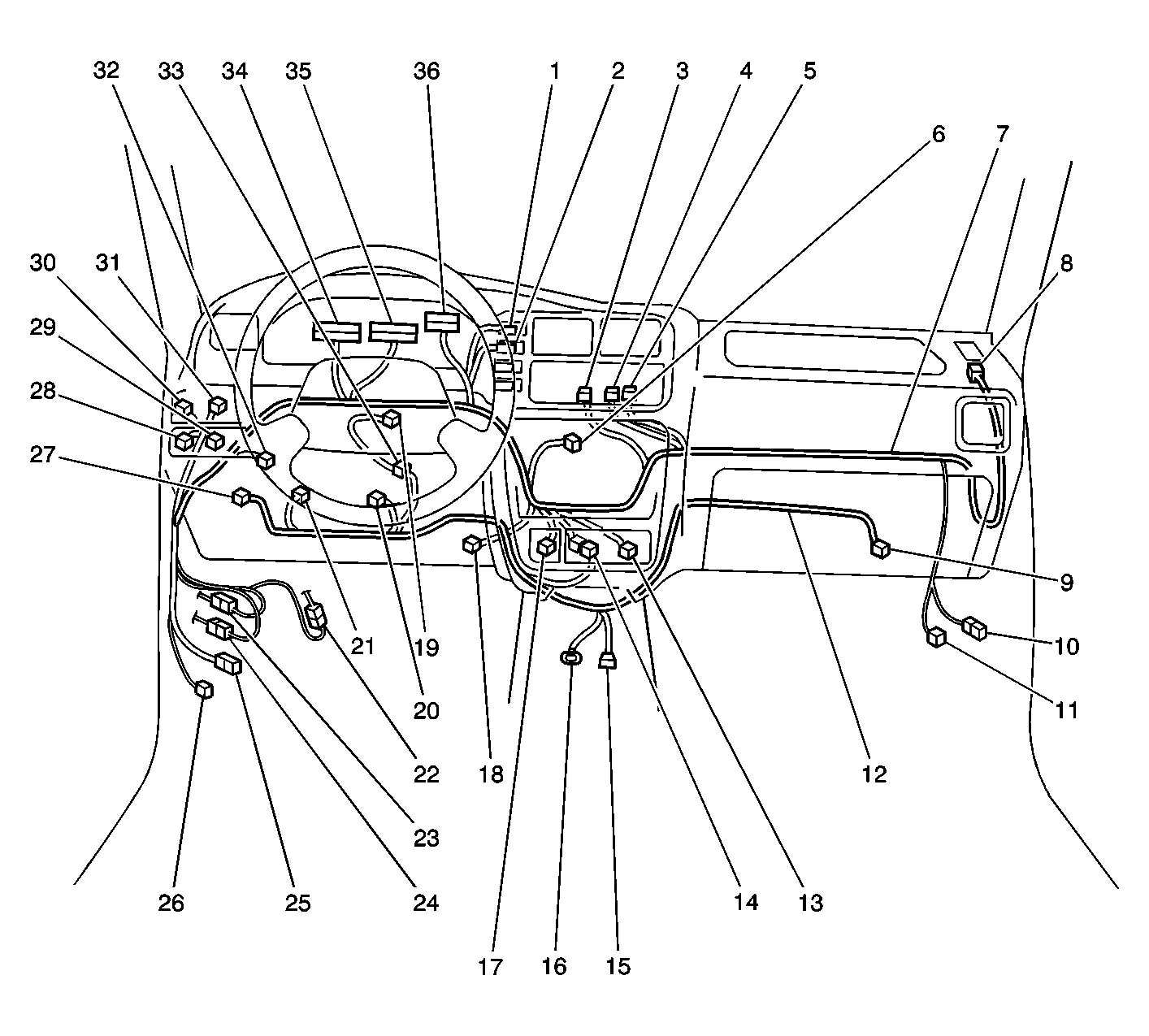

Fig 5: Instrument Panel Harness and SIR Harness
GM739231Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hazard Switch
2 Rear Defogger Switch
3 Blower Motor Switch
4 Heater Illumination
5 A/C Switch
6 Radio
7 Instrument Panel Harness
8 Ambient Light Sensor
9 SIR Passenger Inflator
10 C202
11 Blower Resistor
12 SIR Harness
13 Ashtray Lamp
14 C215
15 SIR Module
16 Ground G200
17 Cigar Lighter
18 Data Link Connector (DLC) OBD2
19 SIR Driver Inflator
20 C217
21 SIR Data Link Connector
22 C201
23 C206
24 C207
25 C213
26 Junction Block C4
27 Air Bag Fuse
28 Mirror Switch
29 Illumination Controller
30 Cruise Control Main Switch
31 Rear Wiper/Washer Switch
32 Rear Defogger Timer
33 SIR Coil C1
34 Instrument Cluster C2
35 Instrument Cluster C1
36 Instrument Cluster C3

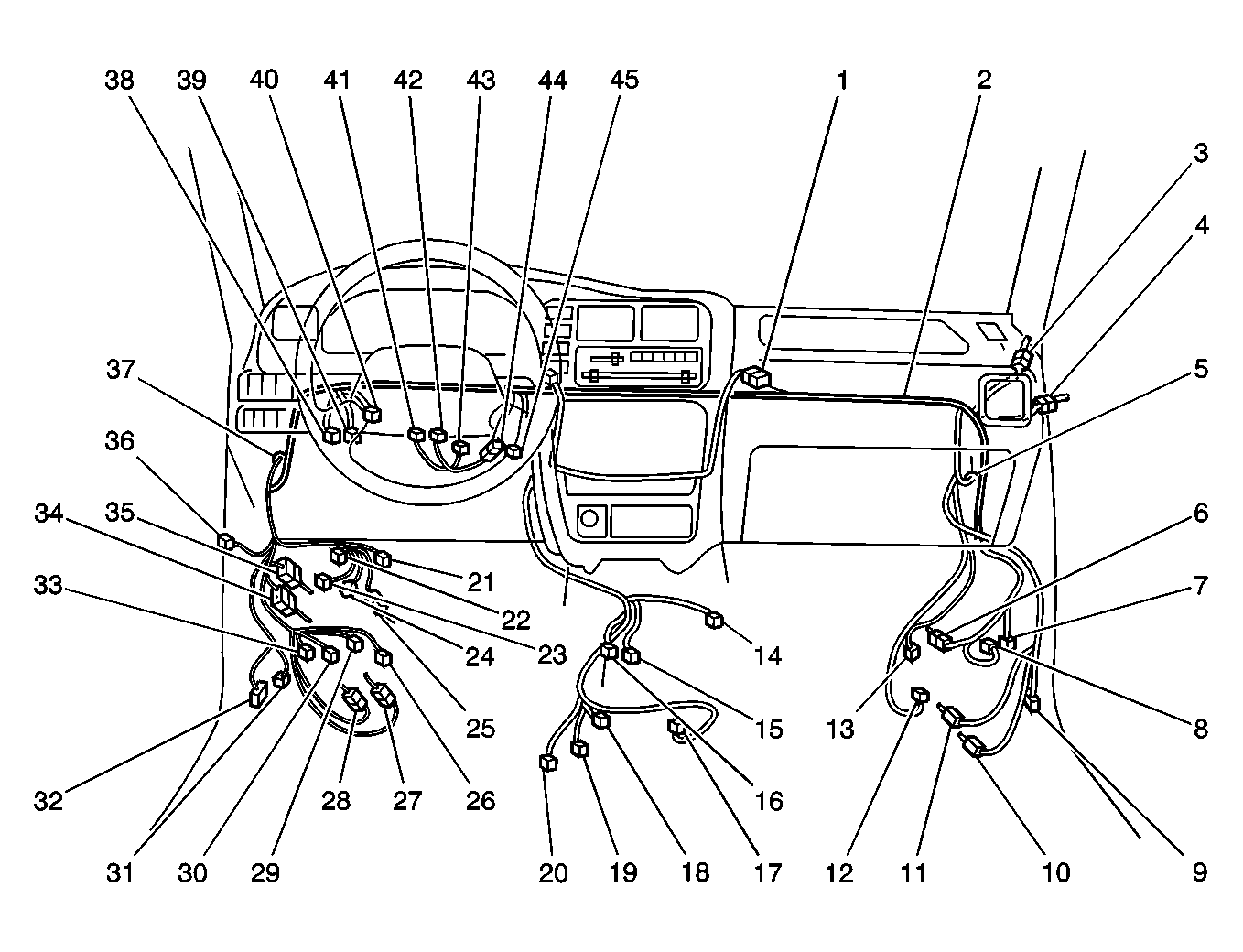

Fig 6: Main Harness (Instrument Panel)
GM738655Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C214
2 Main Harness
3 C209
4 C211
5 P201
6 C202
7 Blower Motor Relay
8 Blower Motor
9 SP201
10 C210
11 C212
12 Powertrain Control Module (PCM) C1
13 Daytime Running Lights (DRL) Diode
14 Shift Program Switch
15 Shift Lock Diode
16 Shift Lock Solenoid
17 Accelerometer
18 Parking Brake Switch
19 Auxiliary Power Outlet
20 Auxiliary Power Outlet
21 C203
22 Combination Switch
23 Headlight Relay
24 Ignition Switch
25 C201
26 Junction Block C2
27 Junction Block C3
28 C204
29 C205
30 Junction Block C1
31 Option Connector
32 SP200
33 Fuel Pump Relay
34 C207
35 C206
36 C208
37 P200
38 Clutch Pedal Position Switch
39 Cruise Release Switch
40 Stop Lamp Switch
41 Door Unlock Relay
42 Door Lock Relay
43 Remote Keyless Entry (RKE) module
44 C200
45 Daytime Running Lights (DRL) module

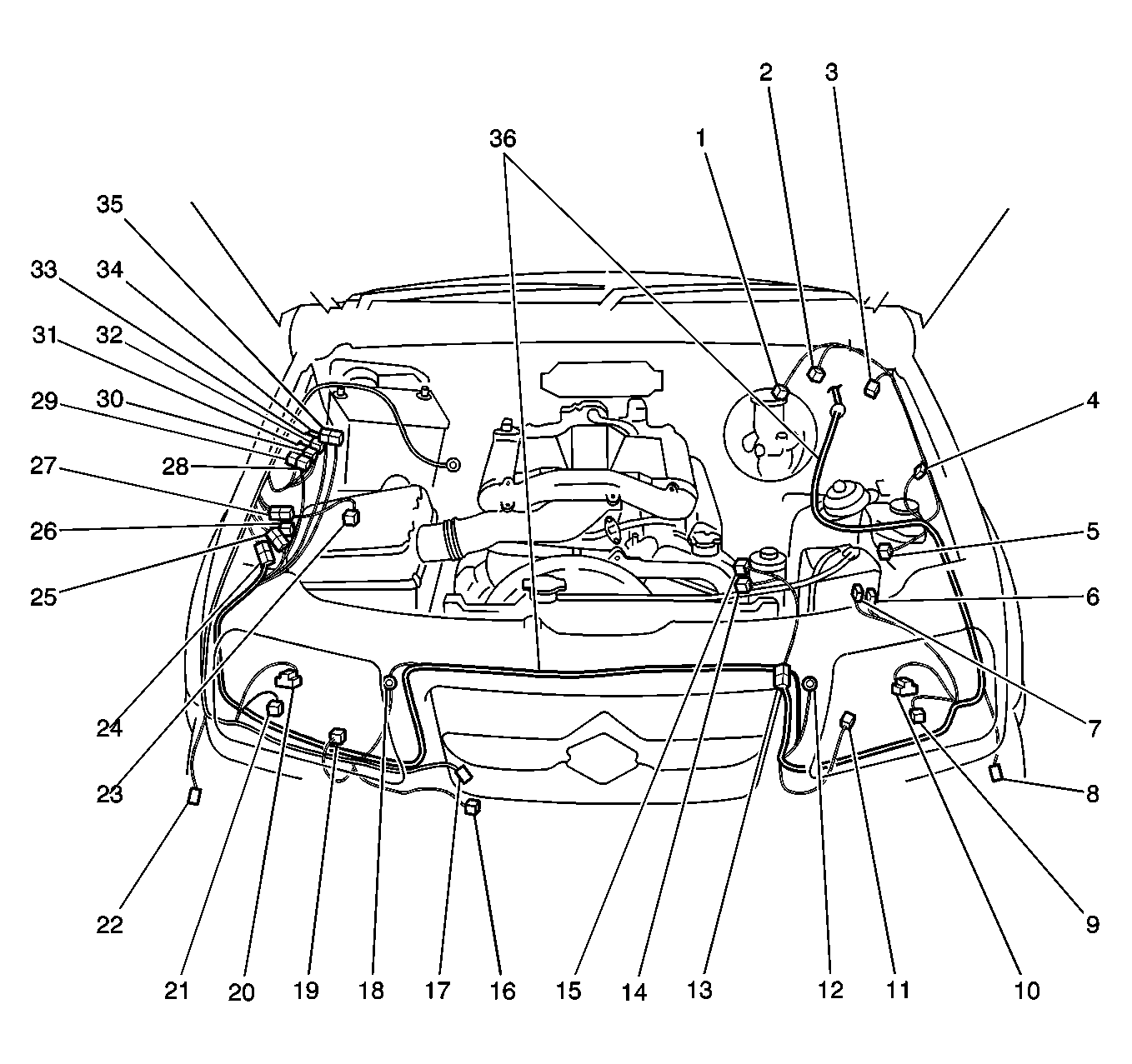

Fig 7: Main Harness (Engine Compartment)
GM739230Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Wiper Motor
2 Brake Fluid Level Switch
3 Electronic Brake Control Module (EBCM)
4 Oxygen Heater Relay
5 Cruise Control Module
6 Rear Washer Pump
7 Front Washer Pump
8 Left Side Marker
9 Left Front Turn Signal
10 Left Hand Headlamp
11 Power Steering Pressure Switch (2.0L)
12 Ground G104
13 C104
14 Power Steering Pressure Switch (2.5L)
15 Oil Pressure Switch
16 Front Drive Axle Actuator Pump
17 Horn
18 Ground 105
19 Power Steering Pressure Switch (1.6L)
20 Right Hand Headlamp
21 Right Front Turn Signal
22 Right Side Marker
23 Intake Air Temperature (IAT) Sensor
24 C101
25 C103
26 Option Connector
27 C116
28 Fuse Block C2
29 Shift Lock Relay
30 Fuse Block C4
31 Horn Relay
32 Fuse Block C1
33 Fuse Block C5
34 Fuse Block C3
35 A/C Fuse
36 Main Harness

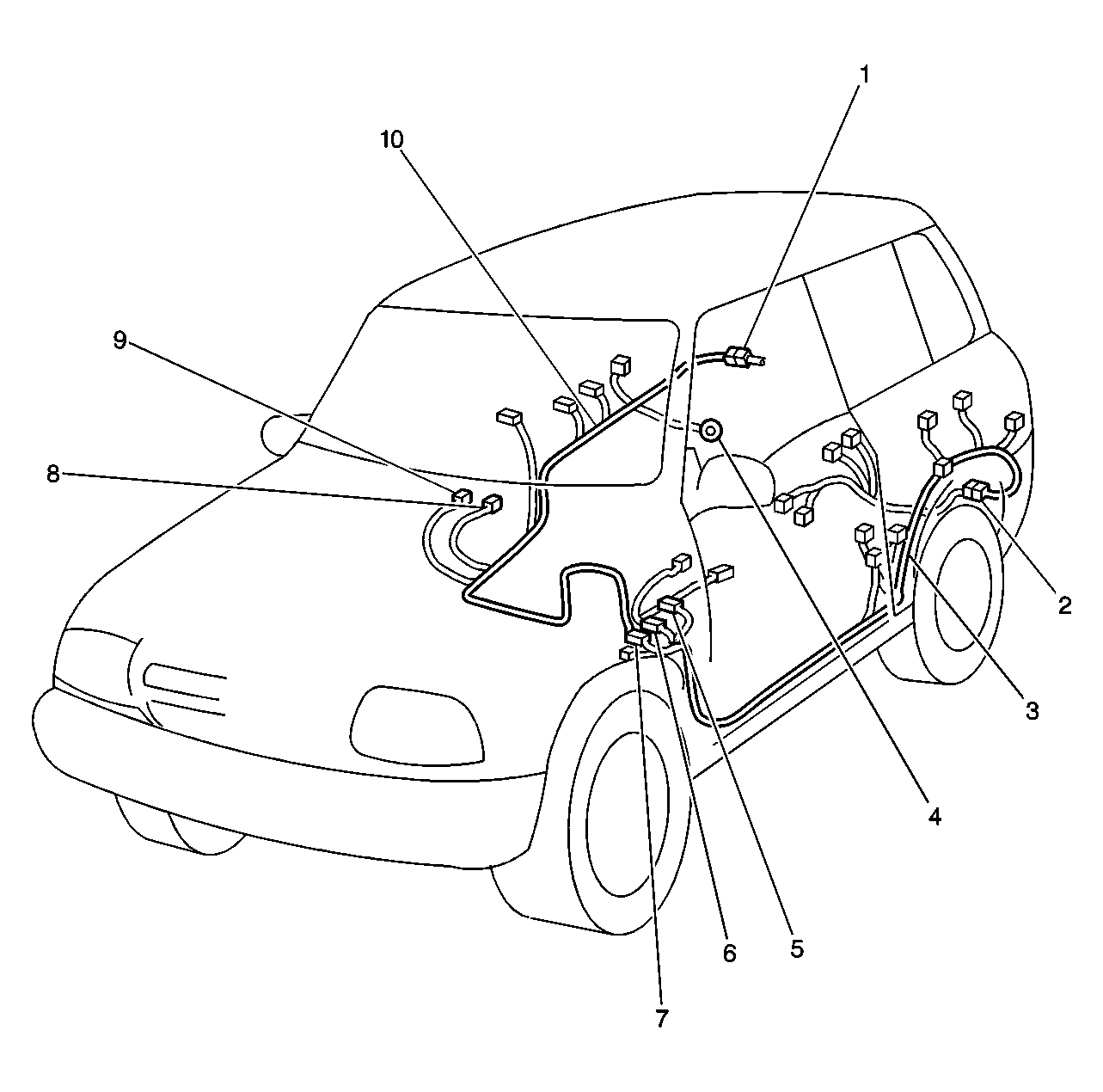

Fig 8: Floor Harness (4-DR)
GM477473Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C400
2 C302
3 C301
4 G400
5 C213
6 C204
7 C205
8 C304
9 C303
10 Floor Harness

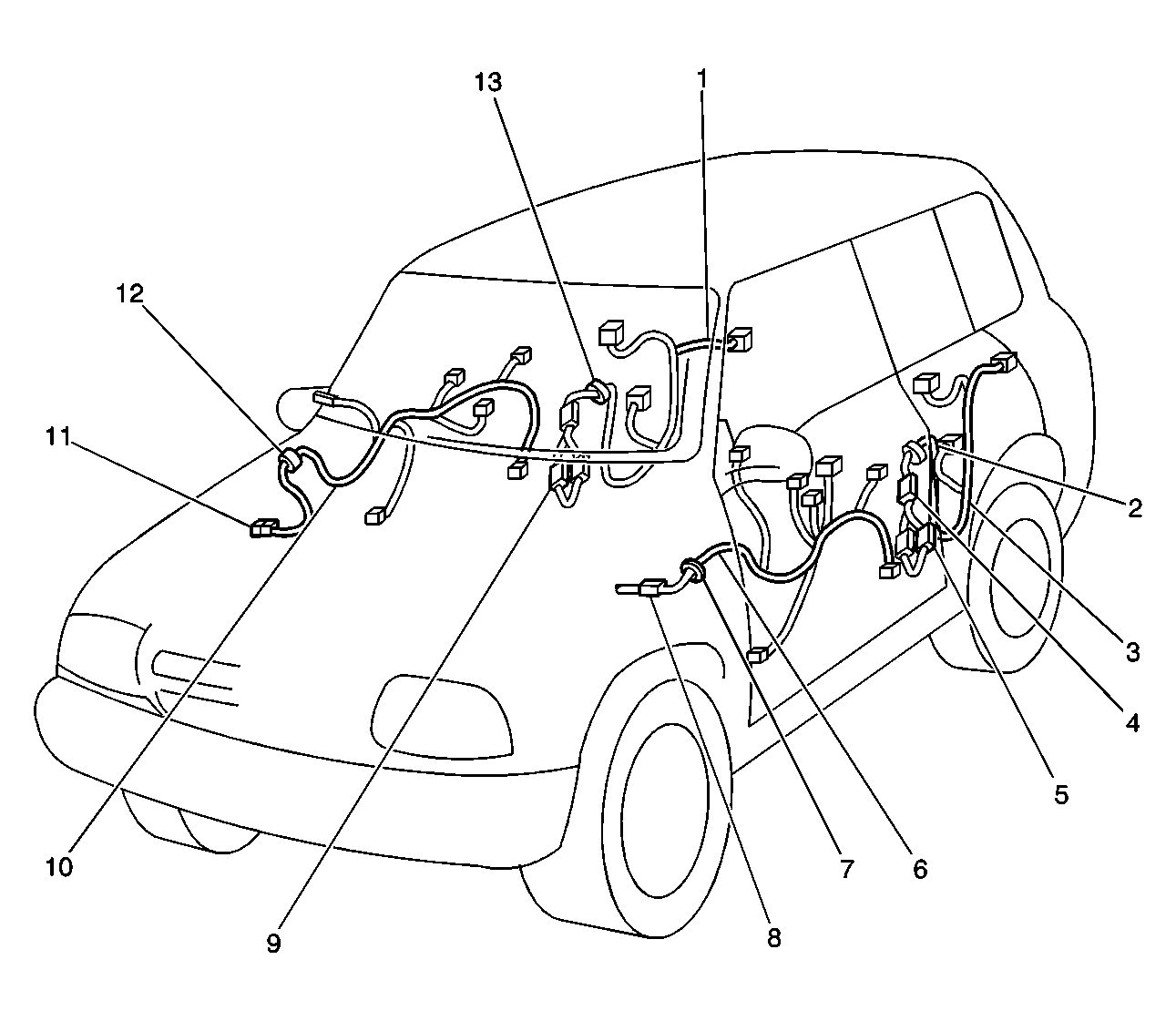

Fig 9: Door Harnesses (4-DR)
GM477474Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Rear Door Harness
2 P700
3 Left Rear Door Harness
4 C305
5 C301
6 Left Front Door Harness
7 P500
8 C208
9 C306
10 Right Front Door Harness
11 C211
12 P600
13 P800

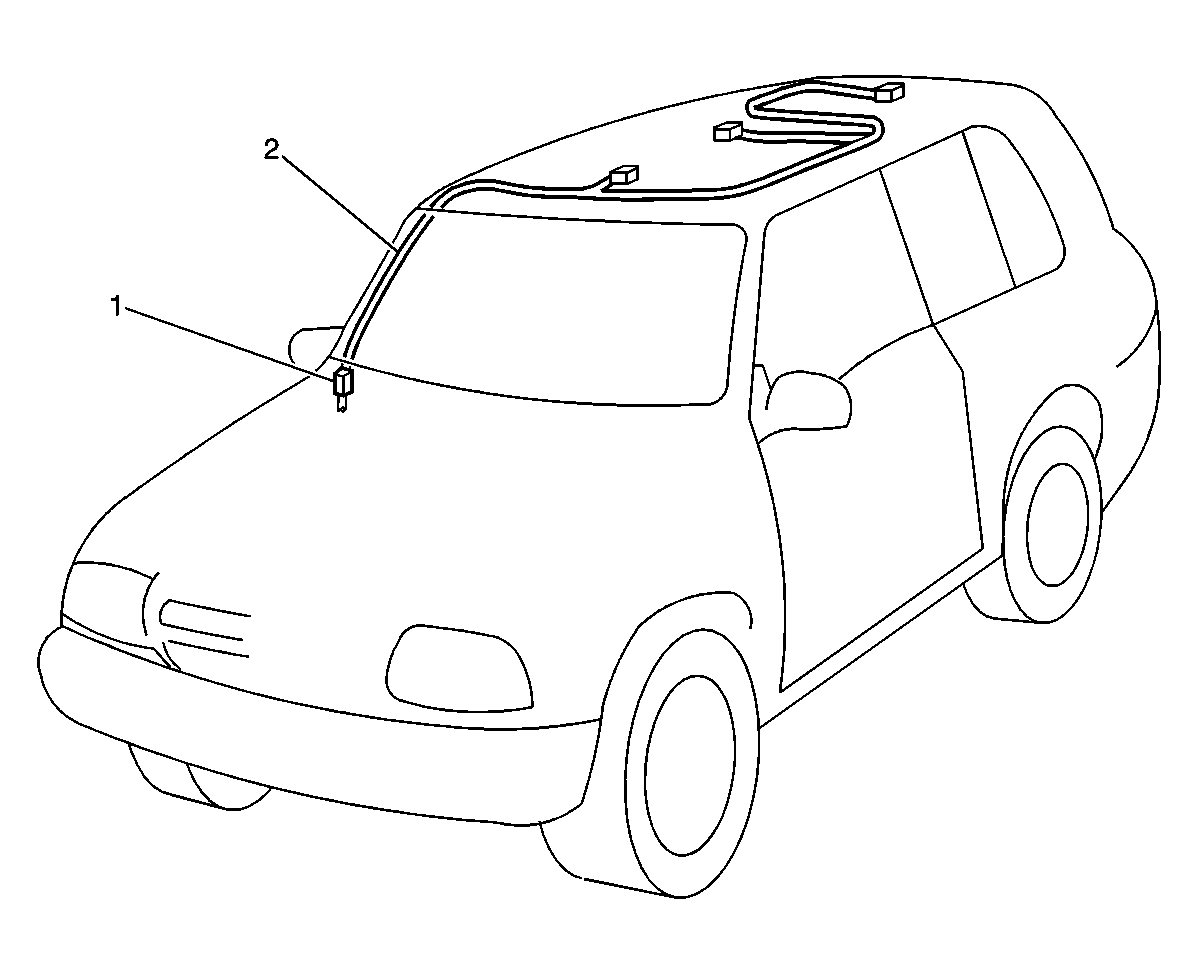

Fig 10: Dome Harness (4-DR)
GM477483Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C209
2 Dome Lamp Harness

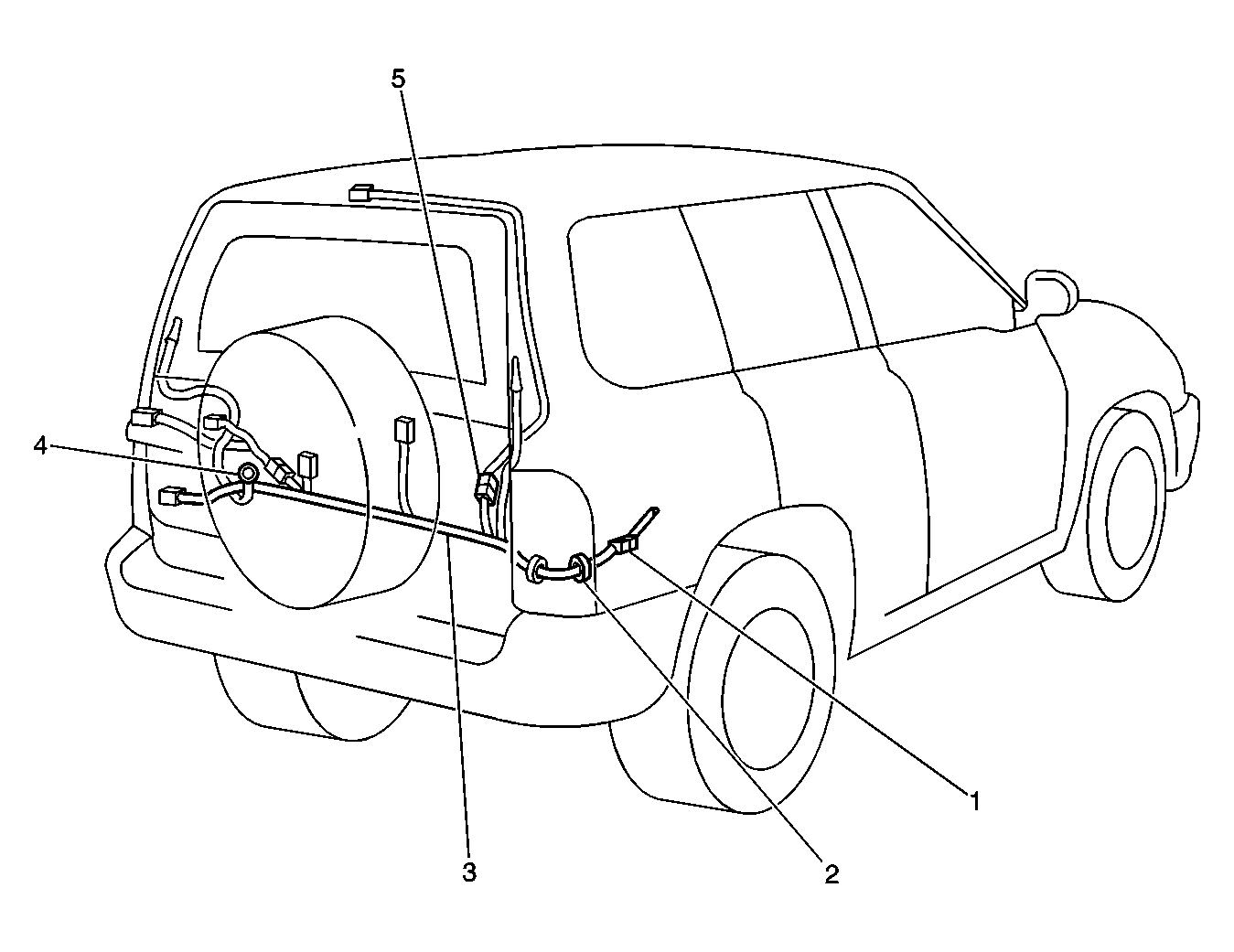

Fig 11: Back Door Harness (4-DR)
GM477488Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C400
2 P400
3 Back Door Harness
4 G401
5 C403
