Inline Harness Connector End Views: C400

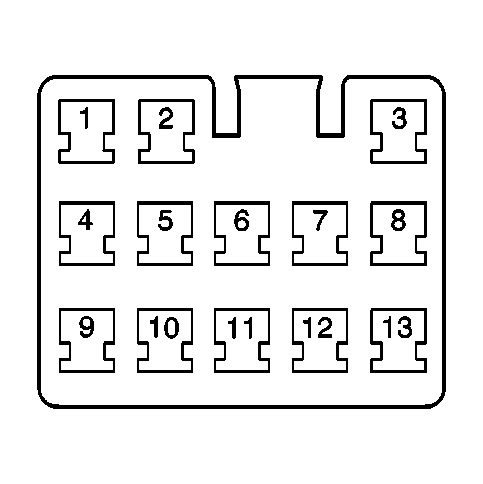

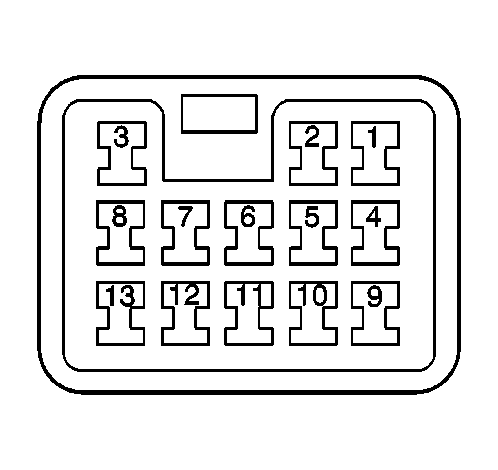

C400 Connector End View
| Connector Part Information |
|
Connector Part Information |
|
||
|---|---|---|---|---|---|
| Pin | Wire Color | Function | Pin | Wire Color | Function |
| 1 | ORN | Rear Wiper OFF Signal | 1 | ORN | Rear Wiper OFF Signal |
| 2 | PNK | Lock Control | 2 | PNK | Lock Control |
| 3 | BLK/RED | Relay Control | 3 | BLK/RED | Relay Control |
| 4 | YEL/BLU | Ignition Positive Voltage | 4 | YEL/BLU | Ignition Positive Voltage |
| 5 | RED/WHT | Ignition Positive Voltage | 5 | RED/WHT | Ignition Positive Voltage |
| 6 | BLU | Door Lock Relay Control | 6 | BLU | Door Lock Relay Control |
| 7 | GRN/WHT | Battery Positive Voltage | 7 | GRN/WHT | Battery Positive Voltage |
| 8 | - | Not Used | 8 | YEL/BLU | Not Used |
| 9 | RED/YEL | Battery Positive Voltage | 9 | RED/YEL | Battery Positive Voltage |
| 10 | BLU/GRN | Rear Washer OFF Signal | 10 | BLU/GRN | Rear Washer OFF Signal |
| 11 | BLU/RED | Door Unlock Relay Control | 11 | BLU/RED | Door Unlock Relay Control |
| 12 | - | Not Used | 12 | - | Not Used |
| 13 | BLK | Ground-G401 | 13 | BLK | Ground-G400 |
