Inline Harness Connector End Views: C218

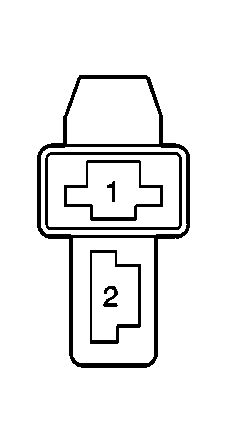

C218 Connector End View

Courtesy of GENERAL MOTORS CORP.			Courtesy of GENERAL MOTORS CORP.
Connector Part Information		097050200510 WHT-IP Harness	Connector Part Information		097070200510 WHT-Main Harness
Pin	Wire Color	Function	Pin	Wire Color	Function
1	BLK/BLU	Ignition Key ON Voltage Signal	1	BLK/BLU	Ignition Key ON Voltage Signal
2	YEL/BLK	DEF Fuse Voltage Feed	2	YE/BLK	DEF Fuse Voltage Feed
