Inline Harness Connector End Views: C212

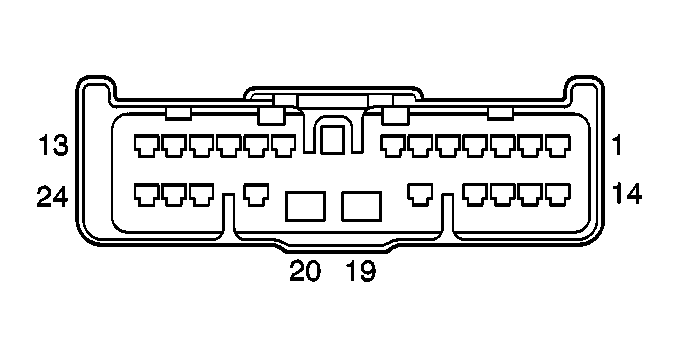

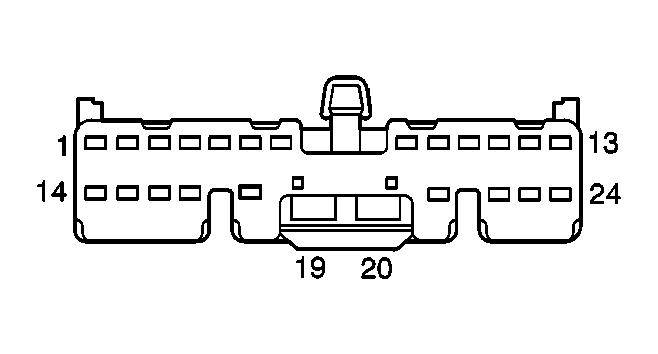

C212 Connector End View
| Connector Part Information |
|
Connector Part Information |
|
||
|---|---|---|---|---|---|
| Pin | Wire Color | Function | Pin | Wire Color | Function |
| 1 | YEL/WHT | ECT Gage | 1 | YEL/WHT | ECT Gage |
| 2 | BLU/YEL | VSS Input | 2 | BLU/YEL | VSS Input |
| 3 | ORN/GRN | Relay Control | 3 | ORN/GRN | Relay Control |
| 4 | BLK/GRN | Shield Wire | 4 | - | Shield Wire |
| 5 | - | Not Used | 5 | - | Not Used |
| 6 | RED | Axle Actuator Control | 6 | RED | Axle Actuator Control |
| 7-8 | - | Not Used | 7-8 | - | Not Used |
| 9 | GRY/YEL | Sensor Ground | 9 | GRY/YEL | Sensor Ground |
| 10 | BLK | Ground-G201 | 10 | BLK | Ground-G201 |
| 11 | BLU/BLK | Main Relay Output | 11 | BLU/BLK | Main Relay Output |
| 12 | RED | Back-Up Lamp Signal | 12 | RED | Back-Up Lamp Signal |
| 13-15 | - | Not Used | 13-15 | - | Not Used |
| 16 | BLK/YEL | Ground-G103 | 16 | BLK/YEL | Ground-G103 |
| 17 | YEL/BLK | Oil Pressure Indicator | 17 | YEL/BLK | Oil Pressure Indicator |
| 18 | PNK | Axle Actuator Control | 18 | PNK | Axle Actuator Control |
| 19 | BLK/YEL | Start Signal M/T | 19 | BLK/YEL | Start Signal M/T |
| 20 | BLK/RED | Ignition Positive Voltage A/T | 20 | BLK/RED | Ignition Positive Voltage A/T |
| 21 | BLK/GRN | DLC Ground | 21 | BLK/GRN | DLC Ground |
| 22 | BLK/WHT | Ignition Positive Voltage | 22 | BLK/WHT | Ignition Positive Voltage |
| 23 | YEL | Ignition Positive Voltage | 23 | YEL | Ignition Positive Voltage |
| 24 | WHT/RED | Charge Indicator | 24 | WHT/RED | Charge Indicator |
