Inline Harness Connector End Views: C207

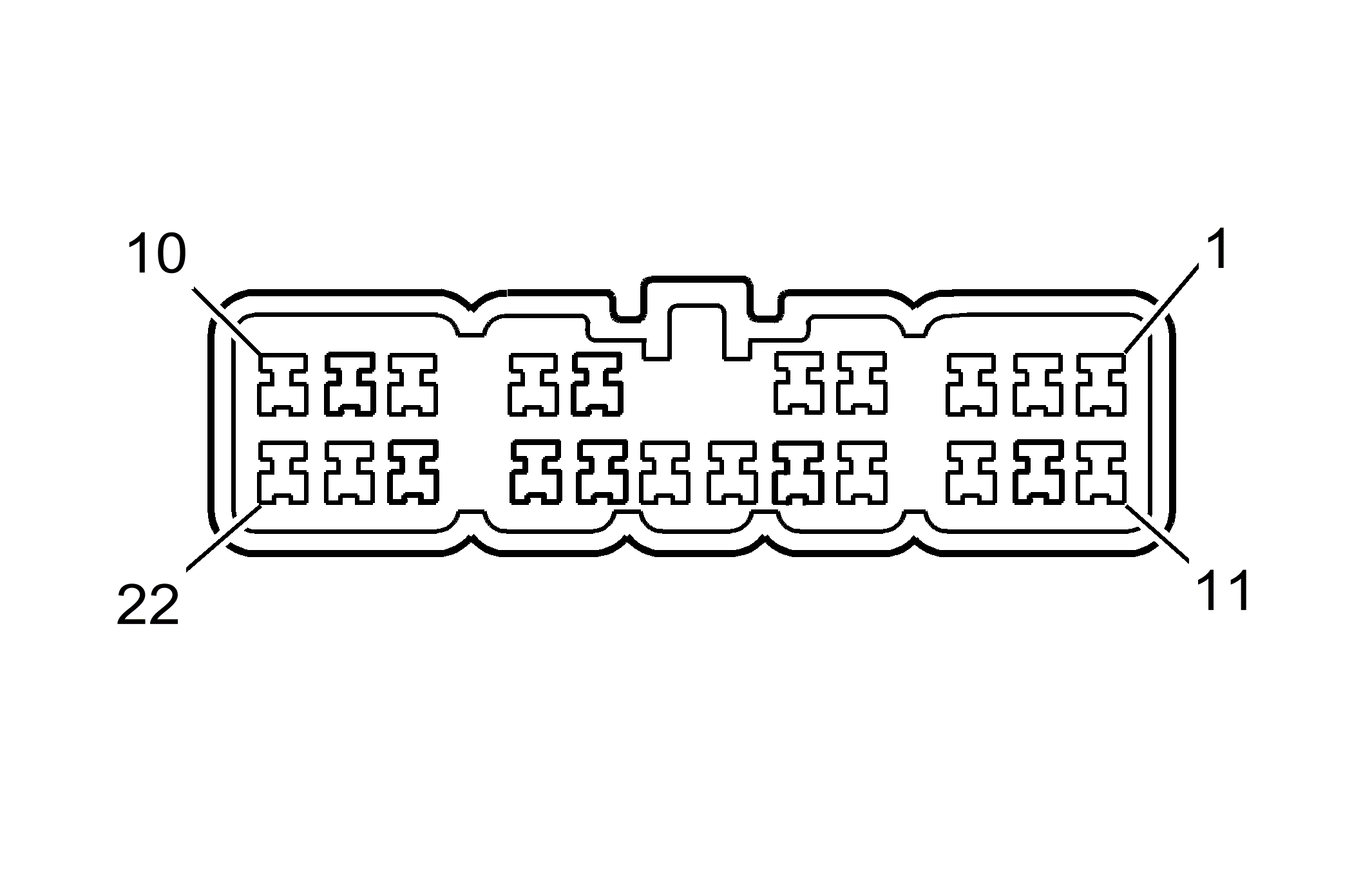

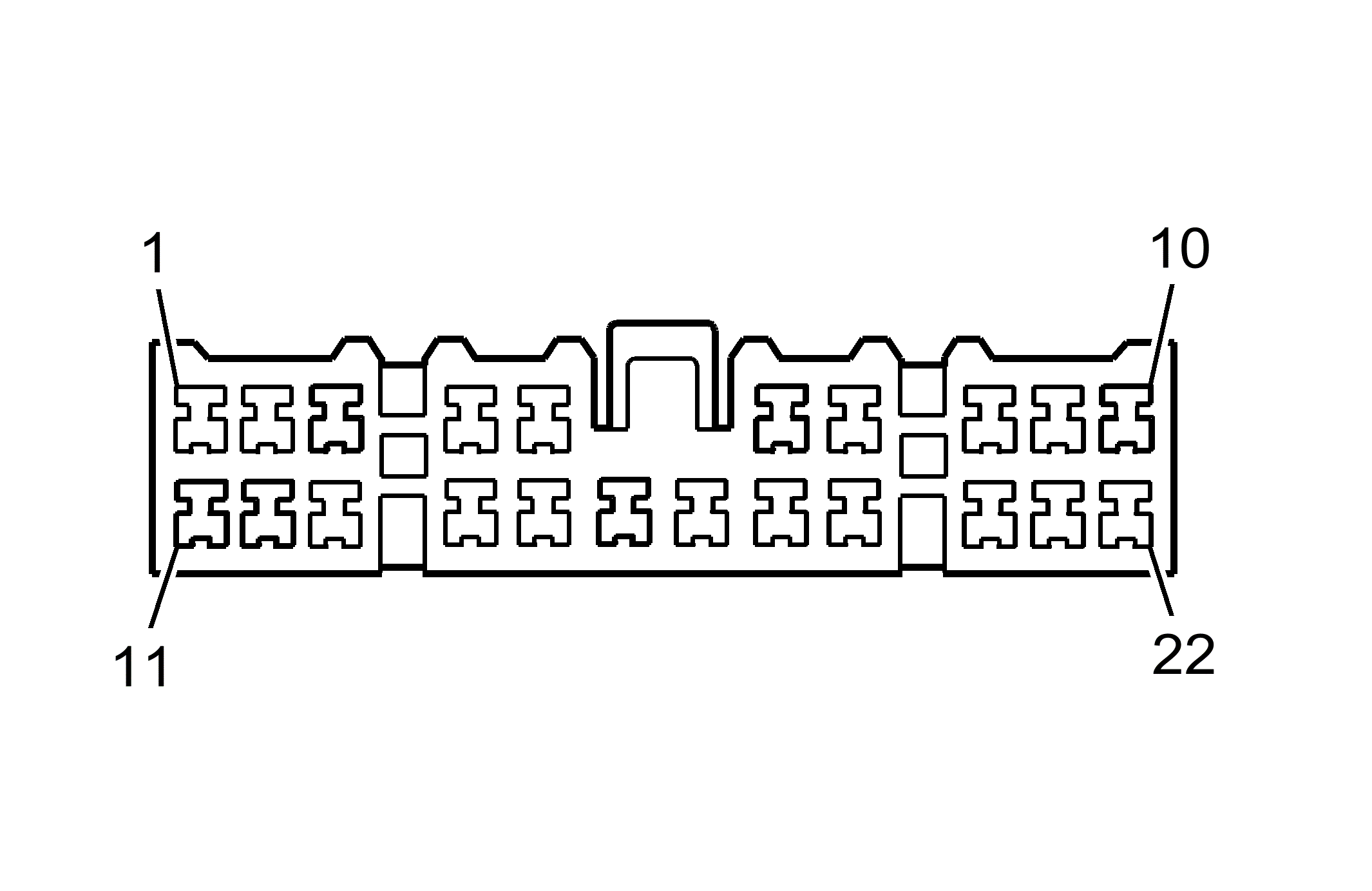

C207 Connector End View

Courtesy of GENERAL MOTORS CORP.			Courtesy of GENERAL MOTORS CORP.
Connector Part Information		0970522W0221 BLK-IP Harness	Connector Part Information		0970722W0221 BLK-Main Harness
Pin	Wire Color	Function	Pin	Wire Color	Function
1	-	Not Used	1	-	Not Used
2	WHT	Battery Positive Voltage	2	WHT	Battery Positive Voltage
3	RED/GRN	Not Used	3	RED/GRN	Not Used
4	DK GRN	Hazard Signal	4	DK GRN	Hazard Signal
5	YEL	Ignition Positive Voltage	5	YEL	Ignition Positive Voltage
6	RED/YEL	Lights On Signal	6	RED/YEL	Lights On Signal
7	RED	HI Beam Indicator	7	RED	HI Beam Indicator
8	WHT/BLU	Battery Positive Voltage	8	WHT/BLU	Battery Positive Voltage
9	WHT/RED	Charge Indicator	9	WHT/RED	Charge Indicator
10	-	Not Used	10	-	Not Used
11	BLU/YEL	VSS Input	11	BLU/YEL	VSS Input
12	BLK/YEL	Ground-G103	12	BLK/YEL	Ground-G103
13	YEL/WHT	ECT Sensor Input	13	YEL/WHT	ECT Sensor Input
14	BRN	Engine Speed Output	14	BRN	Engine speed Output
15	DK GRN/WHT	RT Outside Mirror Motor LFT/RT Control	15	DK GRN/WHT	RT Outside Mirror Motor LFT/RT Control
16	LT GRN/BLK	LFT Outside Mirror Motor LFT/RT Control	16	LT GRN/BLK	LFT Outside Mirror Motor LFT/RT Control
17	BRN/RED	RT Outside Mirror Motor Up/Down Control	17	BRN/RED	RT Outside Mirror Motor Up/Down Control
18	BRN/YEL	LFT Outside Mirror Motor Up/Down Control	18	BRN/YEL	LFT Outside Mirror Motor Up/Down Control
19	GRY	Switch Control	19	GRY	Switch Control
20	BLK/RED	Idle-Up Signal	20	BLK/RED	Idle-Up Signal
21	-	Not Used	21	-	Not Used
22	YEL/DK GRN	Ignition Positive Voltage	22	YEL/DK GRN	Ignition Positive Voltage
