Inline Harness Connector End Views: C205

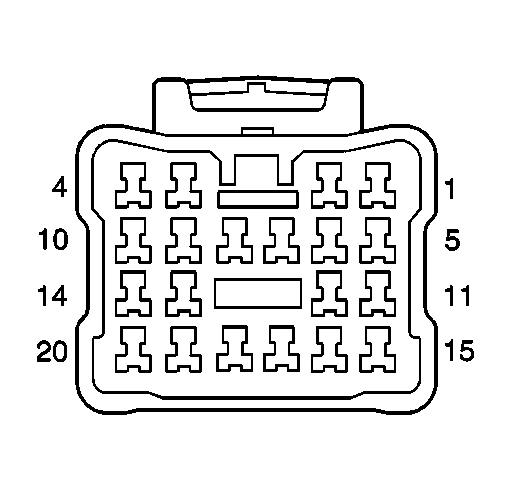

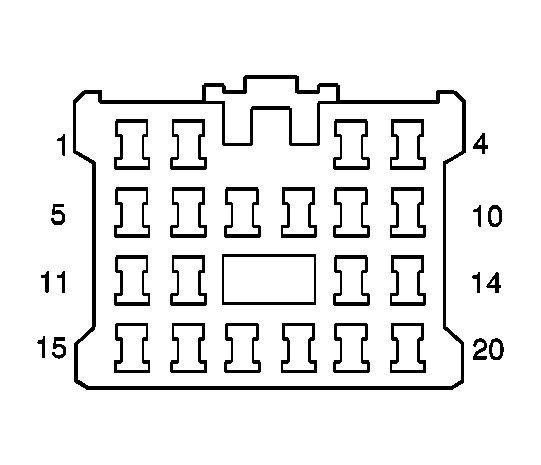

C205 Connector End View
| Connector Part Information |
|
Connector Part Information |
|
||
|---|---|---|---|---|---|
| Pin | Wire Color | Function | Pin | Wire Color | Function |
| 1 | YEL | RR Wheel Speed Sensor Signal High | 1 | YEL | RR Wheel Speed Sensor Signal High |
| 2 | YEL/BLK | RR Wheel Speed Sensor Signal Low | 2 | YEL/BLK | RR Wheel Speed Sensor Signal Low |
| 3 | RED | Back-Up Lamp Signal | 3 | RED | Back-Up Lamp Signal |
| 4 | RED/BLK | Not Used | 4 | RED/BLK | Not Used |
| 5 | LT GRN | LR Wheel Speed Sensor Signal High | 5 | LT GRN | LR Wheel Speed Sensor Signal High |
| 6 | LT GRN/BLK | LR Wheel Speed Sensor Signal Low | 6 | LT GRN/BLK | LR Wheel Speed Sensor Signal Low |
| 7-8 | - | Not Used | 7-8 | - | Not Used |
| 9 | DK GRN/WHT | Battery Positive Voltage | 9 | DK GRN/WHT | Battery Positive Voltage |
| 10 | RED/BLU | Not Used | 10 | RED/BLU | Not Used |
| 11 | - | Not Used | 11 | - | Not Used |
| 12 | WHT | Battery Positive Voltage | 12 | WHT | Battery Positive Voltage |
| 13 | BLK/RED | Dome Lamp Signal | 13 | BLK/RED | Dome Lamp Signal |
| 14 | DK GRN/RED | Not Used | 14 | DK GRN/RED | Not Used |
| 15 | RED/BLU | Battery Positive Voltage | 15 | RED/BLU | Battery Positive voltage |
| 16 | - | Not Used | 16 | - | Not Used |
| 17 | PNK | Lock Control | 17 | PNK | Lock Control |
| 18 | PNK/GRN | Not Used | 18 | PNK/GRN | Not Used |
| 19 | PNK/BLK | Fuel Pump Relay Output | 19 | PNK/BLK | Fuel Pump Relay Output |
| 20 | DK GRN/ORN | Not Used | 20 | DK GRN/ORN | Not Used |
