Inline Harness Connector End Views: C204

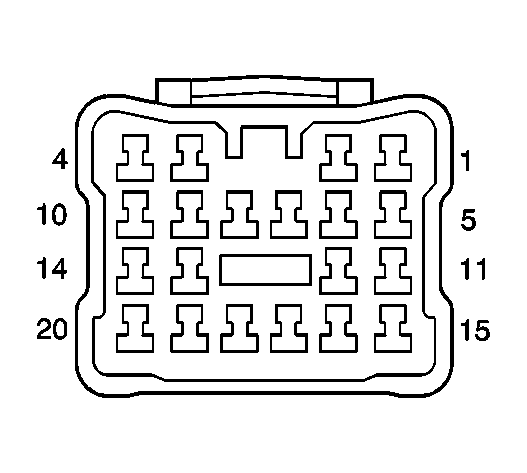

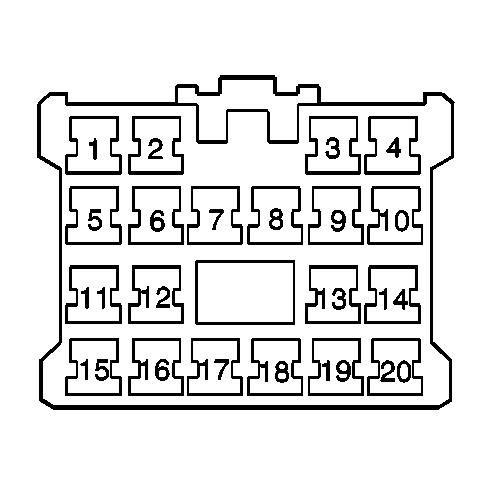

C204 Connector End View
| Connector Part Information |
|
Connector Part Information |
|
||
|---|---|---|---|---|---|
| Pin | Wire Color | Function | Pin | Wire Color | Function |
| 1 | BLK/YEL | Ground-G103 | 1 | BLK/YEL | Ground-G103 |
| 2 | GRN | Battery Positive Voltage | 2 | GRN | Battery Positive Voltage |
| 3 | BLU/RED | Not Used | 3 | BLU/RED | Not Used |
| 4 | BLU | Battery Positive Voltage | 4 | BLU | Battery Positive Voltage |
| 5 | GRY/YEL | Sensor Ground | 5 | GRY/YEL | Sensor Ground |
| 6 | RED/GRN | HO2S2 Signal | 6 | RED/GRN | HO2S2 Signal |
| 7-8 | - | Not Used | 7-8 | - | Not Used |
| 9 | RED/YEL | Left Rear Window Down Signal | 9 | RED/YEL | Left Rear Window Down Signal |
| 10 | RED/WHT | Right Rear Window Down Signal | 10 | RED/WHT | Right Rear Window Down Signal |
| 11 | BARE | Shield Wire | 11 | BARE | Shield Wire |
| 12 | PNK/GRN | HO2S2 Heater Control | 12 | PNK/GRN | HO2S2 Heater Control |
| 13 | GRN/YEL | Left Rear Window Up Signal | 13 | GRN/YEL | Left Rear Window Up Signal |
| 14 | GRN/WHT | Right Rear Window Up Signal | 14 | GRN/WHT | Right Rear Window Up Signal |
| 15 | GRY/YEL | Sensor Ground | 15 | GRY/YEL | Sensor Ground |
| 16 | BRN/RED | Reference Voltage | 16 | BRN/RED | Reference Voltage |
| 17 | GRY/RED | Fuel Tank Pressure Input | 17 | GRY/RED | Fuel Tank Pressure Input |
| 18 | - | Not Used | 18 | - | Not Used |
| 19 | BLU/WHT | Ignition Positive Voltage | 19 | BLU/WHT | Ignition Positive Voltage |
| 20 | RED/WHT | Battery Positive Voltage | 20 | RED/WHT | Battery Positive Voltage |
