Inline Harness Connector End Views: C103

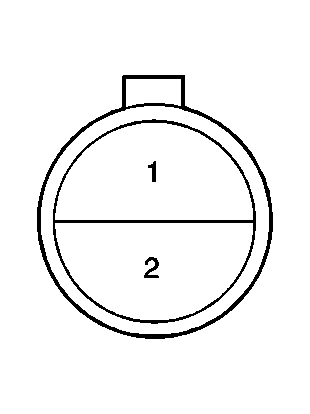

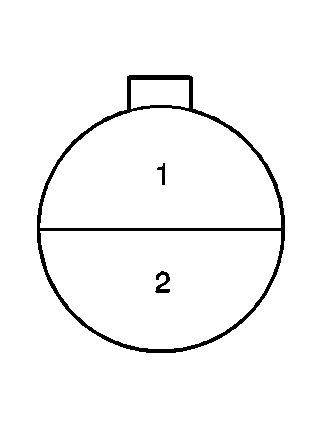

C103 Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 097080200110
- WHT-Injector Harness
|
Connector Part Information |
- 097060200110
- WHT-Main Harness
|
| Pin |
Wire Color |
Function |
Pin |
Wire Color |
Function |
| 1 |
RED |
A/C FUSE Supply Voltage |
1 |
RED |
A/C FUSE Supply Voltage |
| 2 |
- |
Not Used |
2 |
- |
Not Used |
