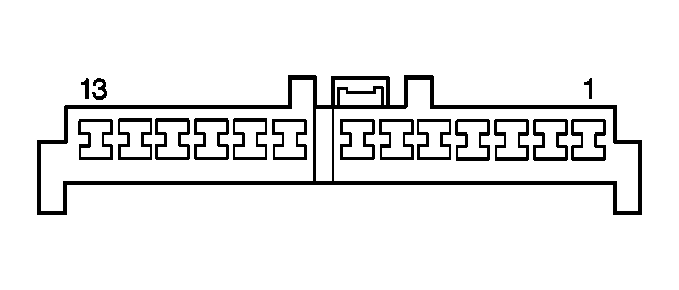

Instrument Cluster C3 Connector End View
Instrument Cluster C3 Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Function |
| 1 |
GRN/YEL |
RH Turn Indicator |
| 2 |
BLK/YEL |
Gauges Ground G103 |
| 3 |
BLU/WHT |
Fuel Gauge |
| 4 |
YEL/WHT |
ECT Gauge |
| 5 |
WHT/BLK |
O/D OFF Indicator |
| 6 |
RED/GRN |
Illumination Lamps |
| 7-13 |
- |
Not Used |
