Emission Hose Routing Diagram

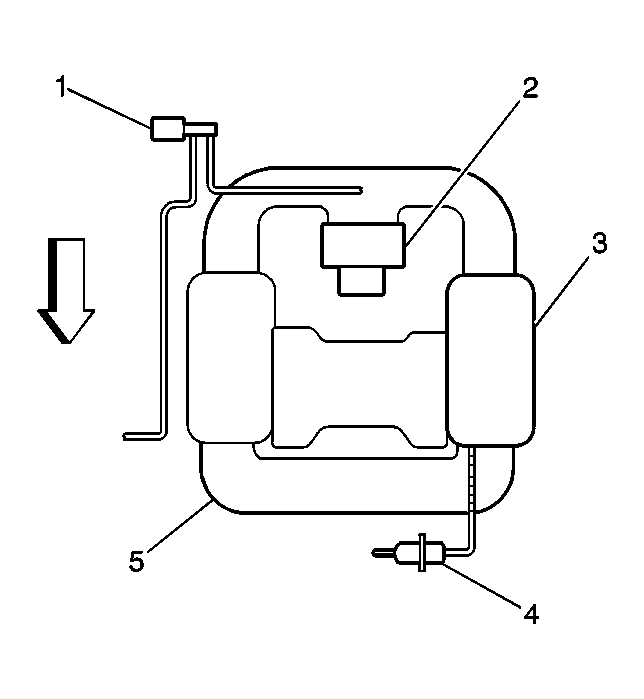

Fig 1: Emission Vacuum Hose Routing Diagram
GM710667Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 EVAP Canister Purge Valve
2 Throttle Body
3 Intake Manifold
4 Fuel Pressure Regulator
5 Surge Tank
