Installation Procedure

  1. Install the EVAP canister to the bracket.

    Install the canister and bracket to the vehicle chassis.

    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Secure the canister and bracket to the vehicle with the four fasteners.

    Tighten:  Tighten the fasteners to 10 N.m (89 lb in).

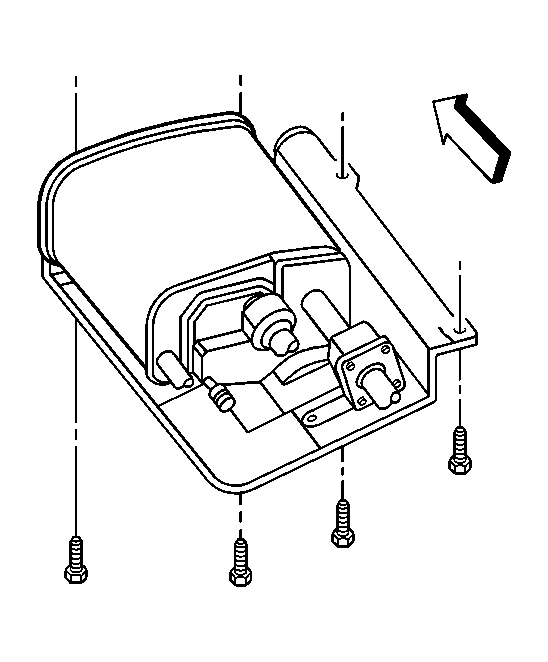

    3. Fig 1: View Of EVAP Canister Bracket & Fasteners
    GM715482Courtesy of GENERAL MOTORS CORP.
  3. Connect the three hoses (1) to the EVAP canister (2).
  4. Connect the electrical connector of the EVAP canister vent solenoid.
  5. Lower the vehicle.

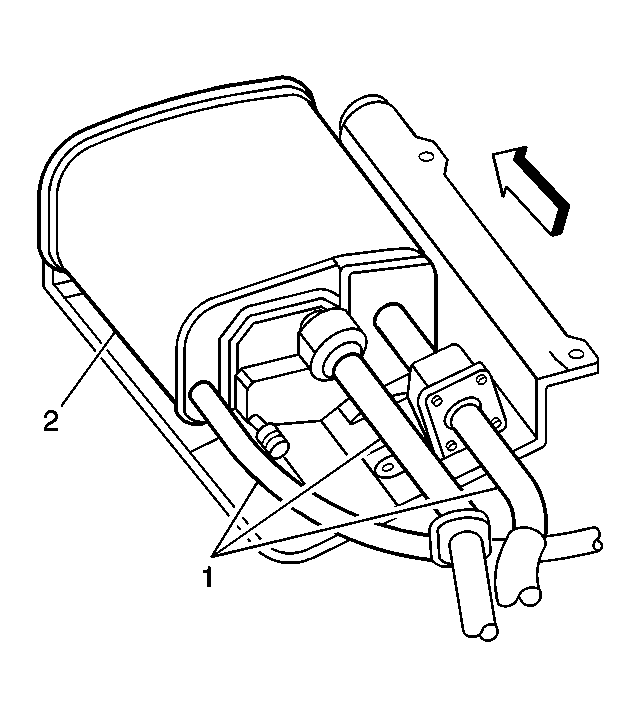

    6. Fig 2: Connecting Hoses & EVAP Canister
    GM715475Courtesy of GENERAL MOTORS CORP.
