Installation Procedure

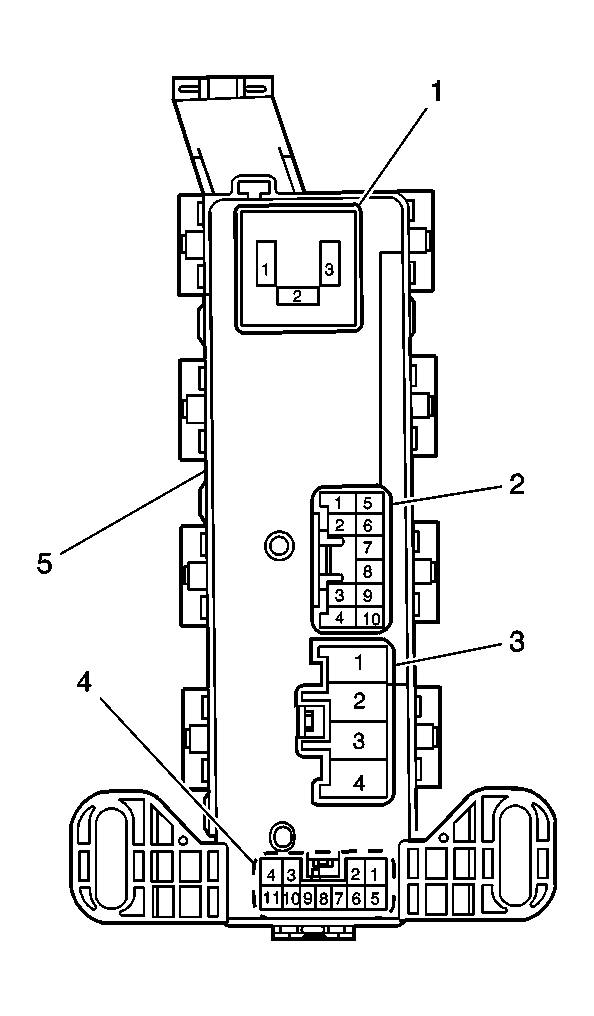

    Fig 1: View Of Connectors At Rear Of Junction Block
    GM631131Courtesy of GENERAL MOTORS CORP.
  1. Install any fuses and relays that were removed from the front of the junction block (5)
  2. Install the turn/hazard flasher (1) to the junction block (5), if removed.
  3. Connect the following connectors to the rear of the junction block (5):
    • Junction block connector C1 (4)
    • Junction block connector C2 (3)
    • Junction block connector C3 (2)
  4. Install the connector housing to the junction block (9) by engaging the retaining tabs (1) at the top of the junction block (9).
  5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the junction block (9) to the 3 retaining studs. Secure the junction block with the 3 nuts (3,10).

    Tighten:  Tighten the junction block mounting nuts to 10 N.m (89 lb in).

  7. Connect the following electrical connectors to the front of the junction block (9):
    • Junction block connector C4 (4)
    • Junction block connector C5 (5)
  8. Install the following connectors to the bottom of the junction block (9):
    • Inline connector C213 (8)
    • Inline connector C205 (7)
    • Inline connector C204 (6)
  9. Install the bracket that contains the fuel pump relay and the main relay to the left front side of the junction block (9).
  10. Install the IP steering column opening trim plate. Refer to Instrument Panel (I/P) Trim Panel Replacement - Left in Instrument Panel, Gages and Console.
  11. Connect the negative battery cable.

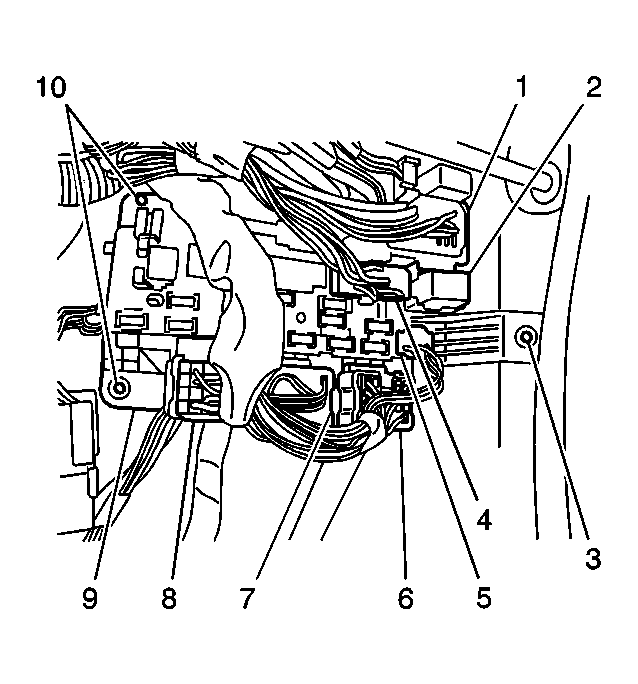

  12. Fig 2: View Of Connectors At Bottom & Front Of Junction Block
    GM631127Courtesy of GENERAL MOTORS CORP.
