Inline Harness Connector End Views: C305

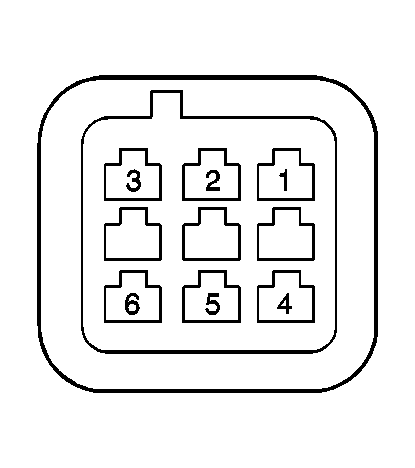

C305 Connector End View
| Connector Part Information |
|
Connector Part Information |
|
||
|---|---|---|---|---|---|
| Pin | Wire Color | Function | Pin | Wire Color | Function |
| 1 | GRN/YEL | Left Rear Window Switch Up Feed | 1 | GRN/YEL | Left Rear Window Switch Up Feed |
| 2 | BLU/WHT | Door Lock Switch Voltage Supply | 2 | BLU/WHT | Door Lock Switch Voltage Supply |
| 3 | BLU/RED | Left Rear Door Unlock Motor Feed | 3 | BLU/RED | Left Rear Door Unlock Motor Feed |
| 4 | RED/YEL | Left Rear Window Switch Down Feed | 4 | RED/YEL | Left Rear Window Switch Down Feed |
| 5 | - | Not Used | 5 | - | Not Used |
| 6 | BLU | Left Rear Door Lock Motor Feed | 6 | BLU | Left Rear Door Lock Motor Feed |
