Inline Harness Connector End Views: C304

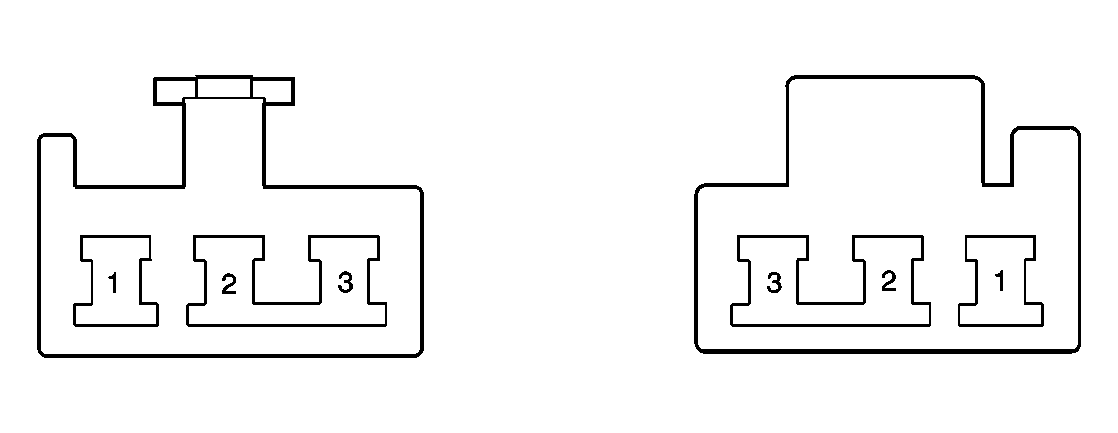

C304 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		097080310720 WHT	Connector Part Information		097060310620 WHT
Pin	Wire Color	Function	Pin	Wire Color	Function
1	BLU/WHT	Door Lock Switch Voltage Supply	1	BLU/WHT	Door Lock Switch Voltage Supply
2	GRN/YEL	Left Rear Window Switch Up Feed	2	GRN/YEL	Left Rear Window Switch Up Feed
3	RED/YEL	Left Rear Window Switch Down Feed	3	RED/YEL	Left Rear Window Switch Down Feed
