Inline Harness Connector End Views: C213

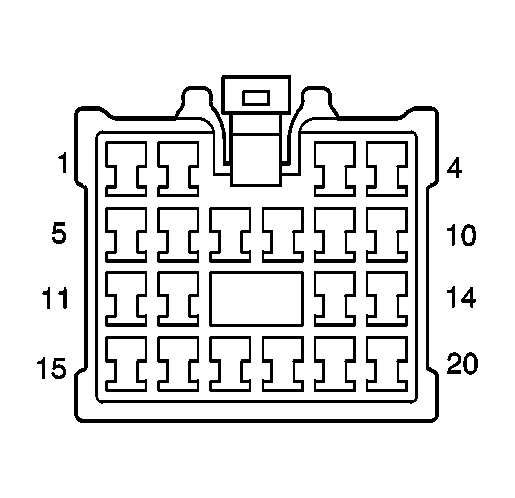

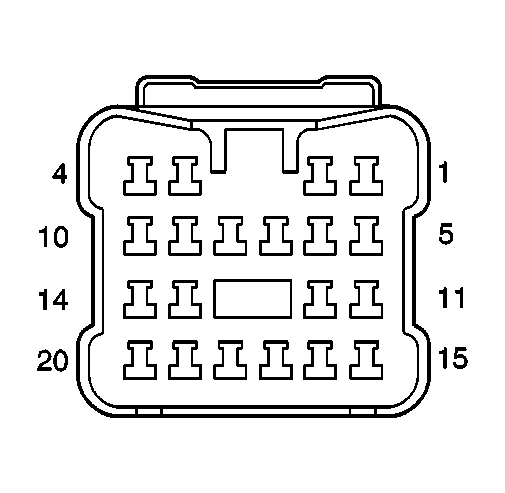

C213 Connector End View
| Connector Part Information |
|
Connector Part Information |
|
||
|---|---|---|---|---|---|
| Pin | Wire Color | Function | Pin | Wire Color | Function |
| 1 | DK GRN/BLU | Not Used | 1 | DK GRN/BLU | Not Used |
| 2 | RED/YEL | Battery Positive Voltage | 2 | RED/YEL | Battery Positive Voltage |
| 3 | BLU/WHT | Fuel Level Input | 3 | BLU/WHT | Fuel Level Input |
| 4 | - | Not Used | 4 | - | Not Used |
| 5 | ORN | Ignition Positive Voltage | 5 | ORN | Ignition Positive Voltage |
| 6 | - | Not Used | 6 | - | Not Used |
| 7 | LT GRN | Left Rear Speaker (+) | 7 | LT GRN | Left Rear Speaker (+) |
| 8 | GRY | Right Rear Speaker (+) | 8 | GRY | Right Rear Speaker (+) |
| 9 | GRY/RED | Seat Belt Indicator | 9 | GRY/RED | Seat Belt Indicator |
| 10 | - | Not Used | 10 | - | Not Used |
| 11 | BLK/BLU | Door Open Signal | 11 | BLK/BLU | Door Open Signal |
| 12 | - | Not Used | 12 | - | Not Used |
| 13 | BLK/RED | Not Used | 13 | BLK/RED | Not Used |
| 14 | - | Not Used | 14 | - | Not Used |
| 15 | BLU | Ignition Positive Voltage | 15 | BLU | Ignition Positive Voltage |
| 16 | - | Not Used | 16 | - | Not Used |
| 17 | LT GRN/BLK | Left Rear Speaker (-) | 17 | LT GRN/BLK | Left Rear Speaker (-) |
| 18 | GRY/BLK | Right Rear Speaker (-) | 18 | GRY/BLK | Right Rear Speaker (-) |
| 19 | BLK/RED | Relay Control | 19 | BLK/RED | Relay Control |
| 20 | - | Not Used | 20 | - | Not Used |
