Inline Harness Connector End Views: C101

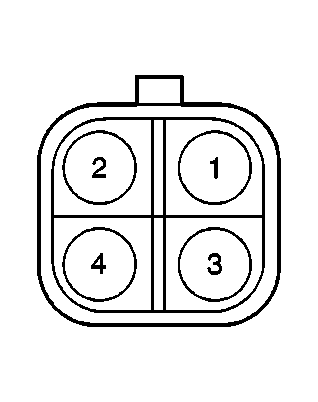

C101 Connector End View

Courtesy of GENERAL MOTORS CORP.			Courtesy of GENERAL MOTORS CORP.
Connector Part Information		097080410910 WHT-Main Harness	Connector Part Information		097060410910 WHT-AC Harness
Pin	Wire Color	Function	Pin	Wire Color	Function
1	YEL/GRN	A/C Compressor Relay Supply Voltage	1	YEL/GRN	A/C Compressor Relay Supply Voltage
2	PNK	A/C Compressor Relay Control	2	PNK	A/C Compressor Relay Control
3	ORN	A/C Refrigerant Pressure Signal	3	ORN	A/C Refrigerant Pressure Signal
4	YEL/BLU	A/C Condenser Fan Relay Control	4	YEL/BLU	A/C Condenser Fan Relay Control
