Removal Procedure

  1. Remove the front side door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the following components from the front side door (3):
    1. The 2 screws (1)
    2. The front side door pull handle bracket (2)
      3. Fig 1: View Of Front Side Door, Screws & Pull Handle Bracket
      GM474174Courtesy of GENERAL MOTORS CORP.
  3. Remove the 3 screws which secure the front radio speaker (2) and bracket (1) assembly to the door.
  4. Disconnect the front radio speaker electrical connector (3).
  5. Remove the front radio speaker (2) and bracket (1) assembly from the vehicle.
    6. Fig 2: View Of Front Radio Speaker, Bracket & Electrical Connector
    GM352123Courtesy of GENERAL MOTORS CORP.
  6. Peel and remove the front side door water deflector (3) from the door (1).
  7. Inspect the water deflector (3) for holes. Use waterproof tape in order to repair any holes found. Apply waterproof tape to both sides of the water deflector (3), if necessary.

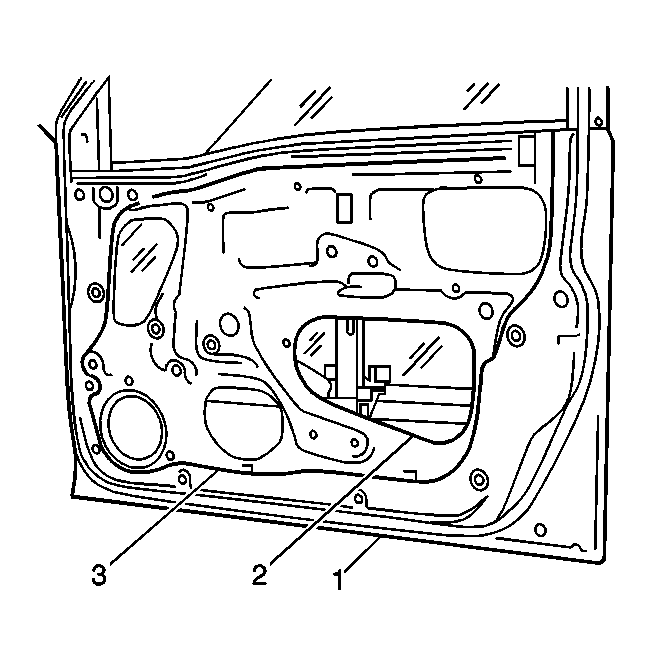

    8. Fig 3: View Of Front Side Door & Water Deflector
    GM474171Courtesy of GENERAL MOTORS CORP.
