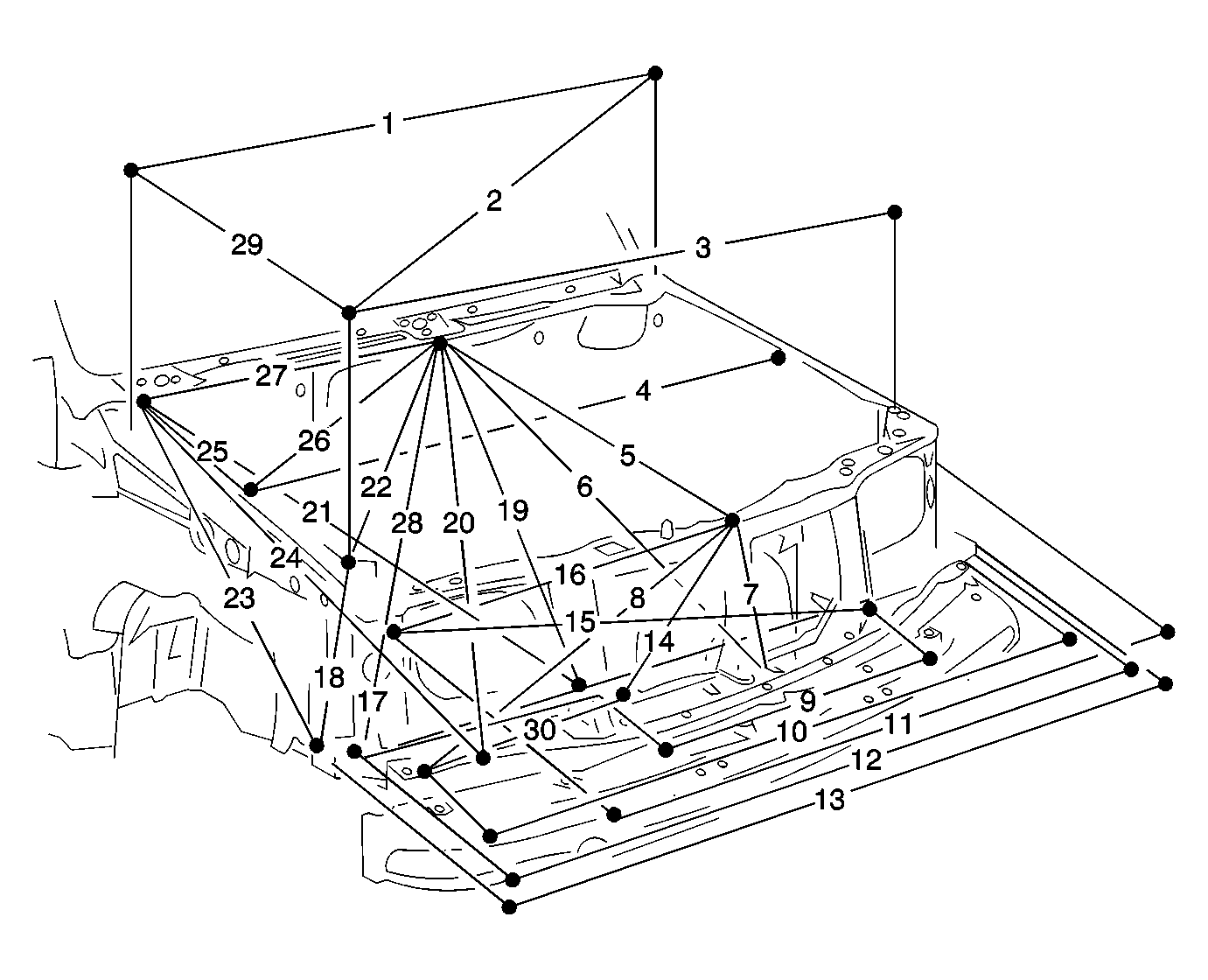

Front Body Dimensions
Front Body Dimensions
| Measurement Line | Distance Between Control Points |
|---|---|
| 1 | 1348 mm (53.07 in) |
| 2 | 1504 mm (59.21 in) |
| 3 | 1339 mm (52.72 in) |
| 4 | 1344 mm (52.91 in) |
| 5 | 854 mm (33.62 in) |
| 6 | 1000 mm (39.37 in) |
| 7 | 276 mm (10.87 in) |
| 8 | 730 mm (28.74 in) |
| 9 | 668 mm (26.30 in) |
| 10 | 1302 mm (51.26 in) |
| 11 | 1302 mm (51.26 in) |
| 12 | 1456 mm (57.32 in) |
| 13 | 1550 mm (61.02 in) |
| 14 | 406 mm (15.98 in) |
| 15 | 1016 mm (40.00 in) |
| 16 | 672 mm (26.46 in) |
| 17 | 189 mm (7.44 in) |
| 18 | 299 mm (11.77 in) |
| 19 | 1000 mm (39.37 in) |
| 20 | 1018 mm (40.08 in) |
| 21 | 1029 mm (40.51 in) |
| 22 | 927 mm (36.50 in) |
| 23 | 811 mm (31.93 in) |
| 24 | 961 mm (37.83 in) |
| 25 | 391 mm (15.39 in) |
| 26 | 760 mm (29.92 in) |
| 27 | 676 mm (26.61 in) |
| 28 | 968 mm (38.11 in) |
| 29 | 677 mm (26.65 in) |
| 30 | 414 mm (16.30 in) |
