Engine Compartment Fuse Block (2003-04)

Engine compartment fuse block is located on passenger's side of the engine compartment. See Figure.

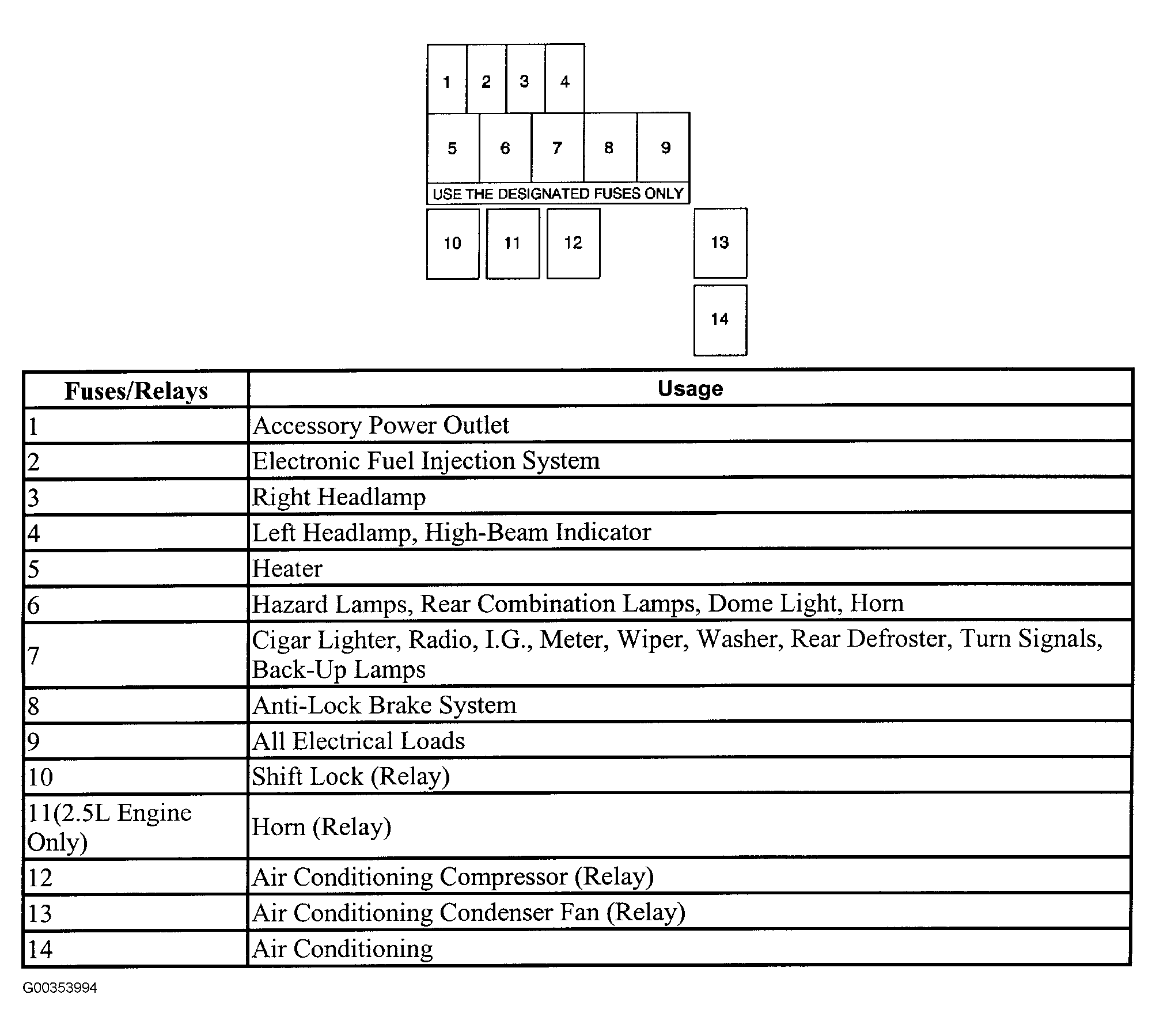

Fig 1: Identifying Engine Compartment Fuse Block Components & Legend (2003-04)
G00353994Courtesy of GENERAL MOTORS CORP.
ENGINE COMPARTMENT FUSE BLOCK RELAY IDENTIFICATION

RELAY NUMBER RELAY DESCRIPTION
10 Shift Lock Relay
11 (2.5L Engine Only) Horn Relay
12 A/C Compressor Relay
13 A/C Condenser Fan Relay
