Installation Procedure

  1. Install the spark plug wire to the ignition coil.
  2. Install the spark plug wire to the spark plug.
  3. Inspect the spark plug wire for proper installation:
    1. Push sideways on each boot in order to inspect the seating.
    2. Reinstall any loose boot.

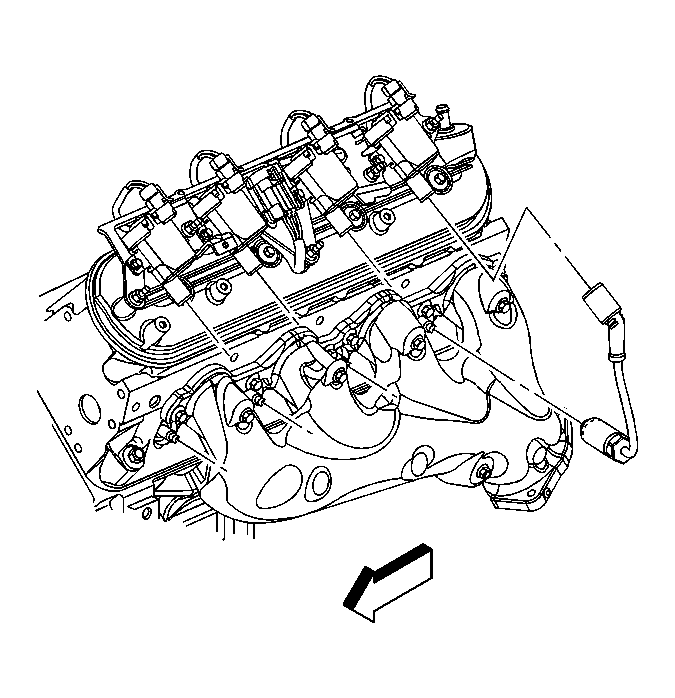

    4. Fig 1: Spark Plug Wire
    GM1239288Courtesy of GENERAL MOTORS CORP.
