Automatic Transmission Controls Schematics

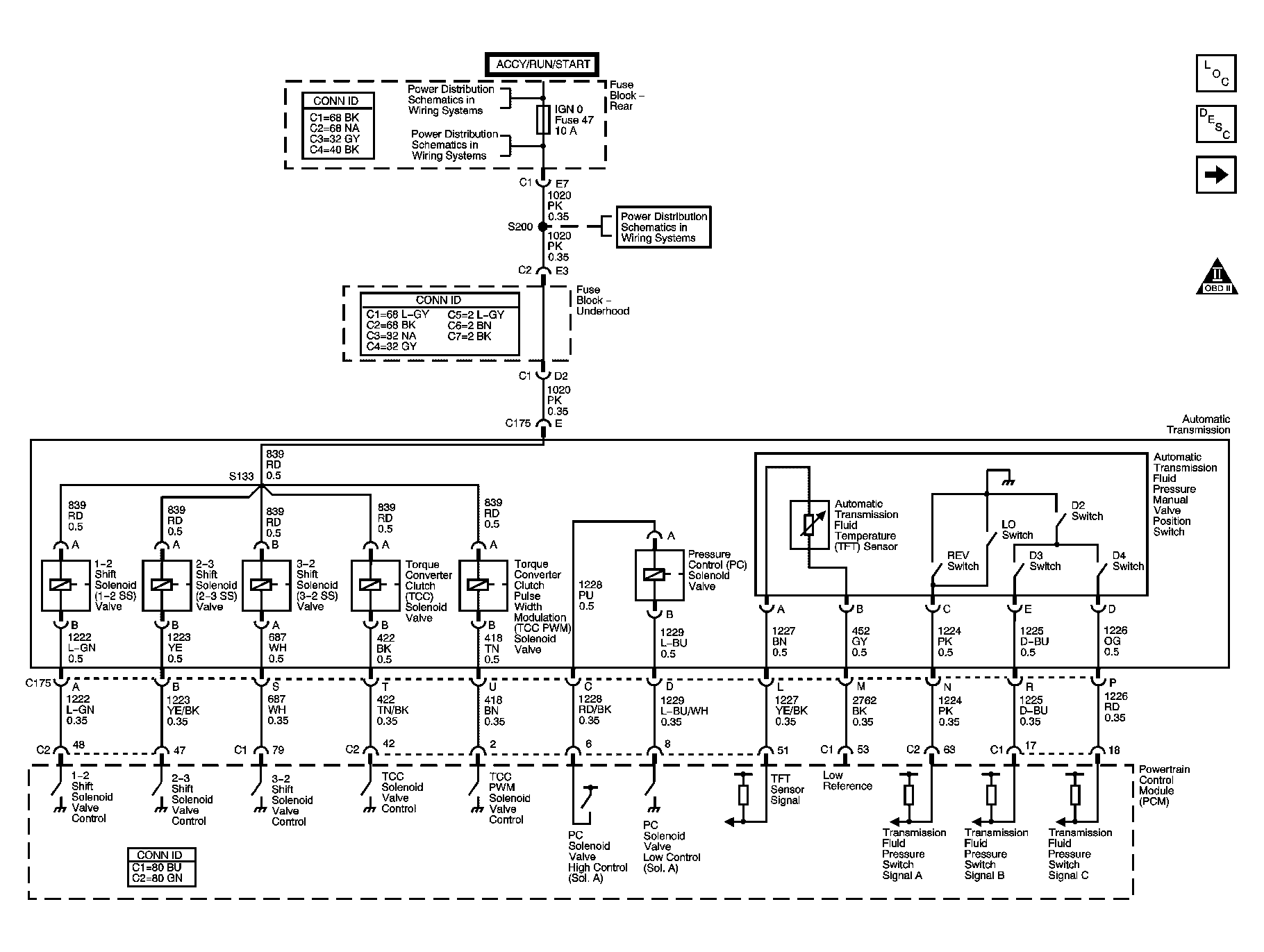

Fig 1: Power & Internal Transmission Valve Switches Schematic
GM1198453Courtesy of GENERAL MOTORS CORP.

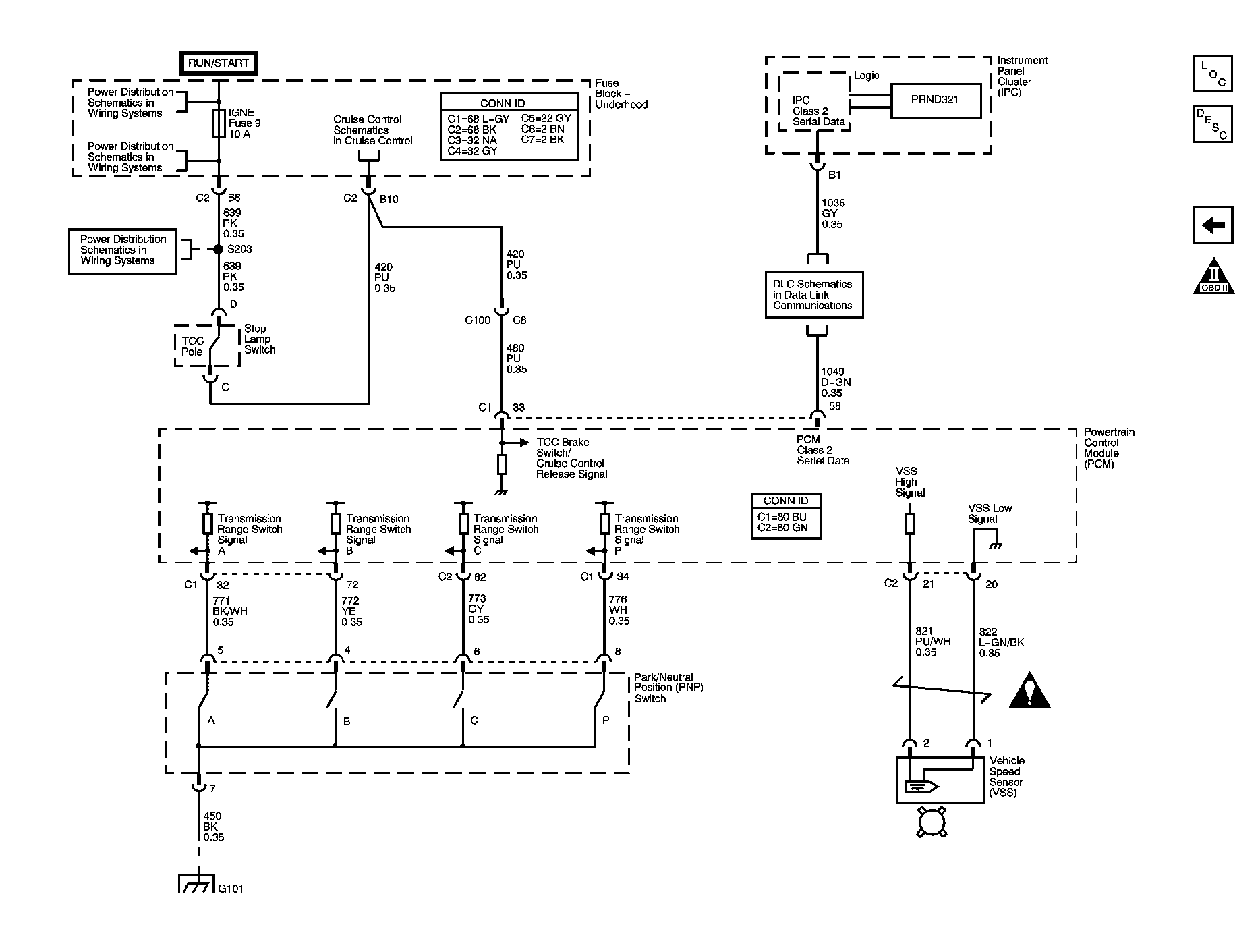

Fig 2: Park Neutral Position (PNP) Switch & VSS Schematic
GM1404655Courtesy of GENERAL MOTORS CORP.
