Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet SSR. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View of Fog Lamp
    GM881150Courtesy of GENERAL MOTORS CORP.
  1. Align the fog lamp housing to the opening in the fascia.
  2. Push the fog lamp into the fascia firmly until fully seated.

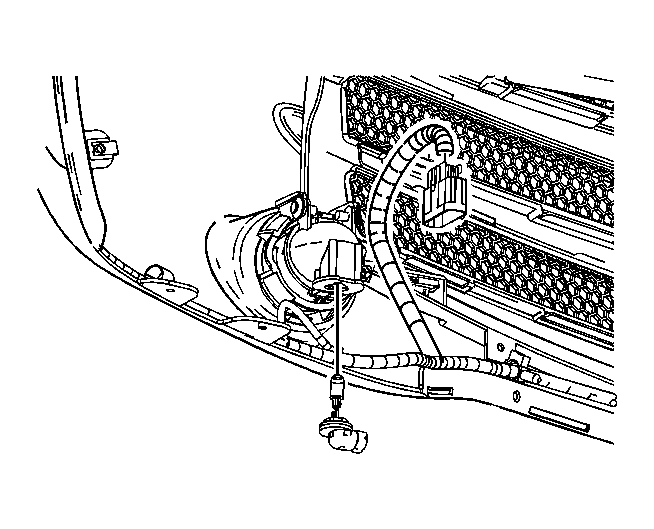

    3. Fig 2: View of Fog Lamp Bulb
    GM1247742Courtesy of GENERAL MOTORS CORP.
  3. Install the fog lamp bulb into the housing and rotate the bulb clockwise.
    4. Fig 3: View of Fog Lamp Electrical Connector
    GM1247739Courtesy of GENERAL MOTORS CORP.
  4. Connect the fog lamp wiring harness to the fog lamp bulb.
  5. Lower vehicle.
