Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

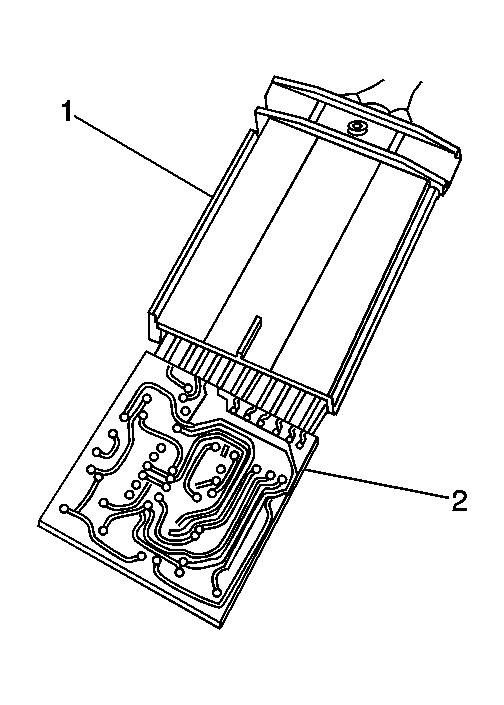

    Fig 1: View Of Auxiliary HVAC Control Processor & Box
    GM962574Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary HVAC control processor (2) to the box. (1)
  2. Install the cover to the auxiliary HVAC control processor (2).

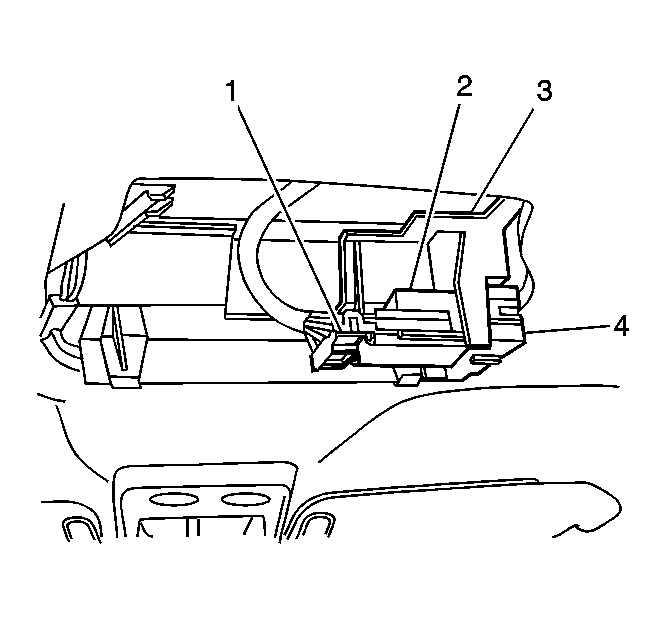

    3. Fig 2: View Of Auxiliary HVAC Control Processor & Bracket
    GM962578Courtesy of GENERAL MOTORS CORP.
  3. Install the auxiliary HVAC control processor (2) to the bracket (3).
  4. Install the auxiliary rear HVAC control assembly. Refer to HVAC Control Assembly Replacement - Rear Auxiliary .
