Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the speaker.
  2. Install the speaker to the door.

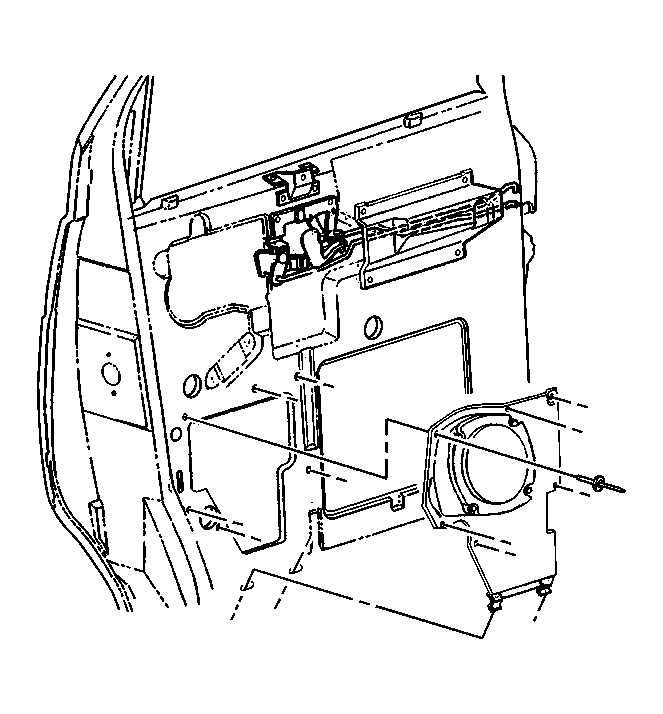

    Fig 1: Identifying Door Speaker
    GM306854Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the speaker mounting screws.

    Tighten:  Tighten the speaker mounting screws to 2 N.m (18 lb in).

  4. Verify component operation.
  5. Install the door trim panel. Refer to Trim Panel Replacement - Door in Doors.
