Installation Procedure

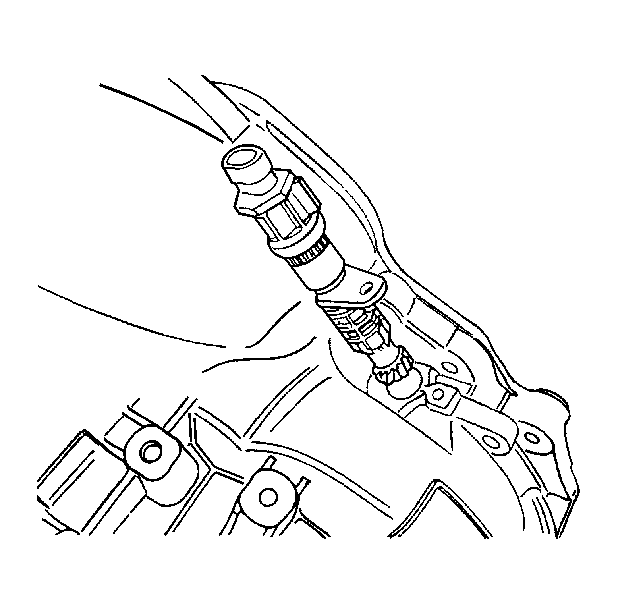

    Fig 1: View Of Speedometer-Driven Gear And Housing
    GM1255769Courtesy of GENERAL MOTORS CORP.
  1. Coat the O-ring with petroleum jelly.
  2. Install the speedometer-driven gear and the speedometer housing.

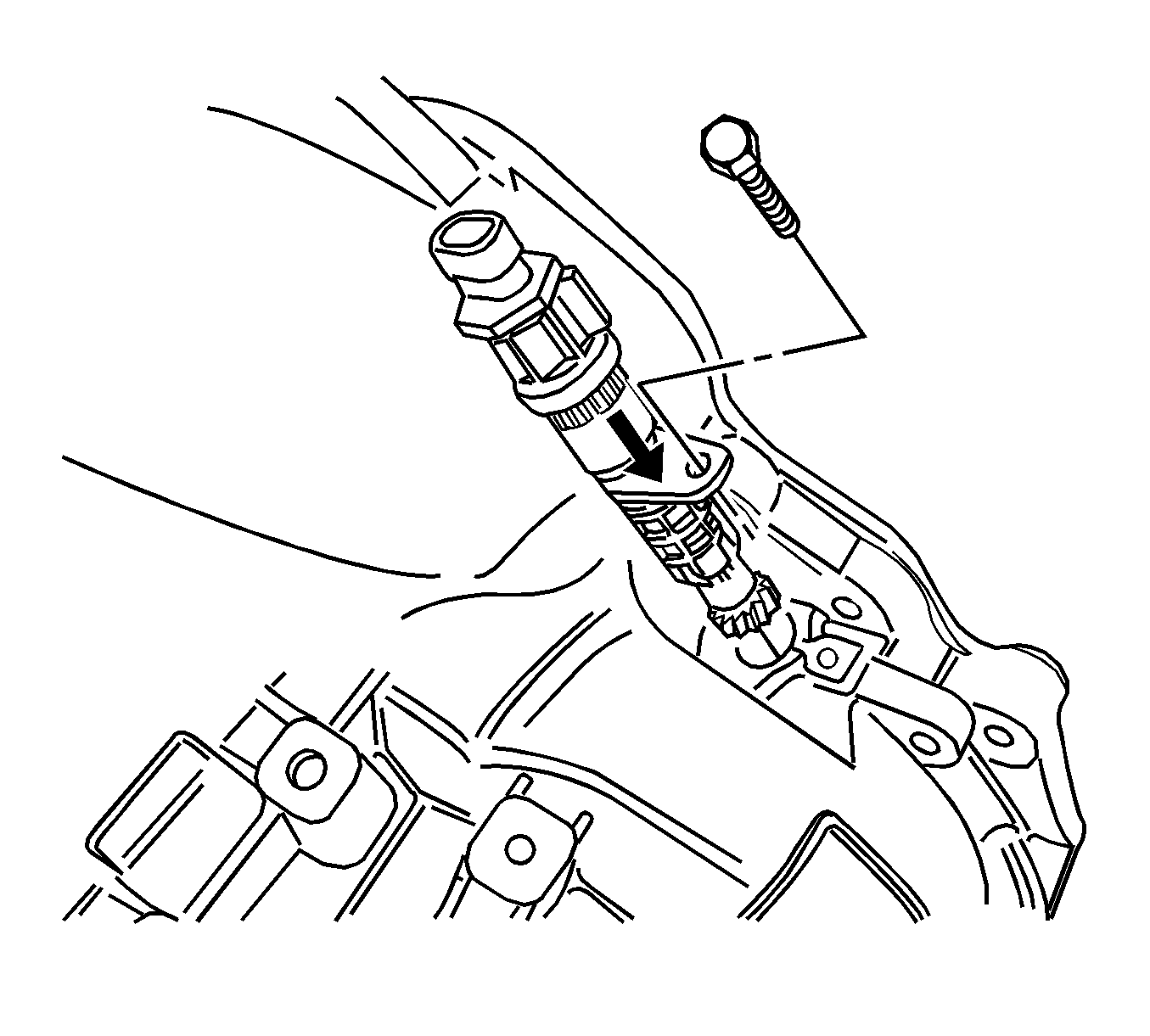

    3. Fig 2: View Of Speedometer Housing And Retaining Bolt
    GM1248175Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the speedometer housing retaining bolt.

    Tighten:  Tighten the speedometer housing retaining bolt to 5 N.m (44 lb in)  .

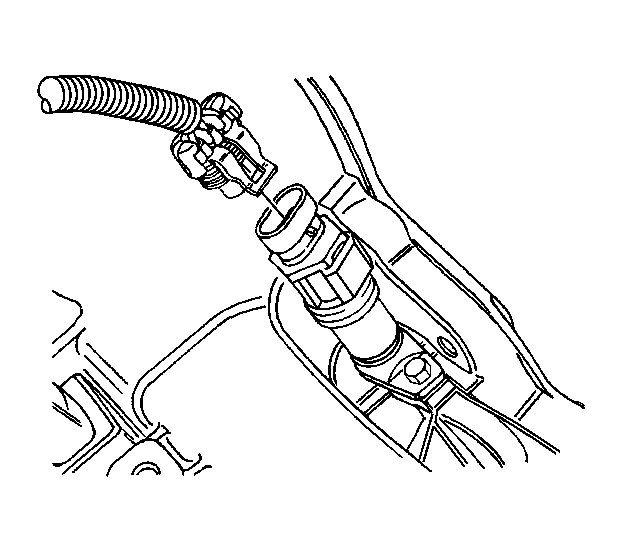

    4. Fig 3: View Of Speed Sensor Electrical Connector
    GM1255762Courtesy of GENERAL MOTORS CORP.
  4. Connect the speedometer speed sensor electrical connector.
