Installation Procedure

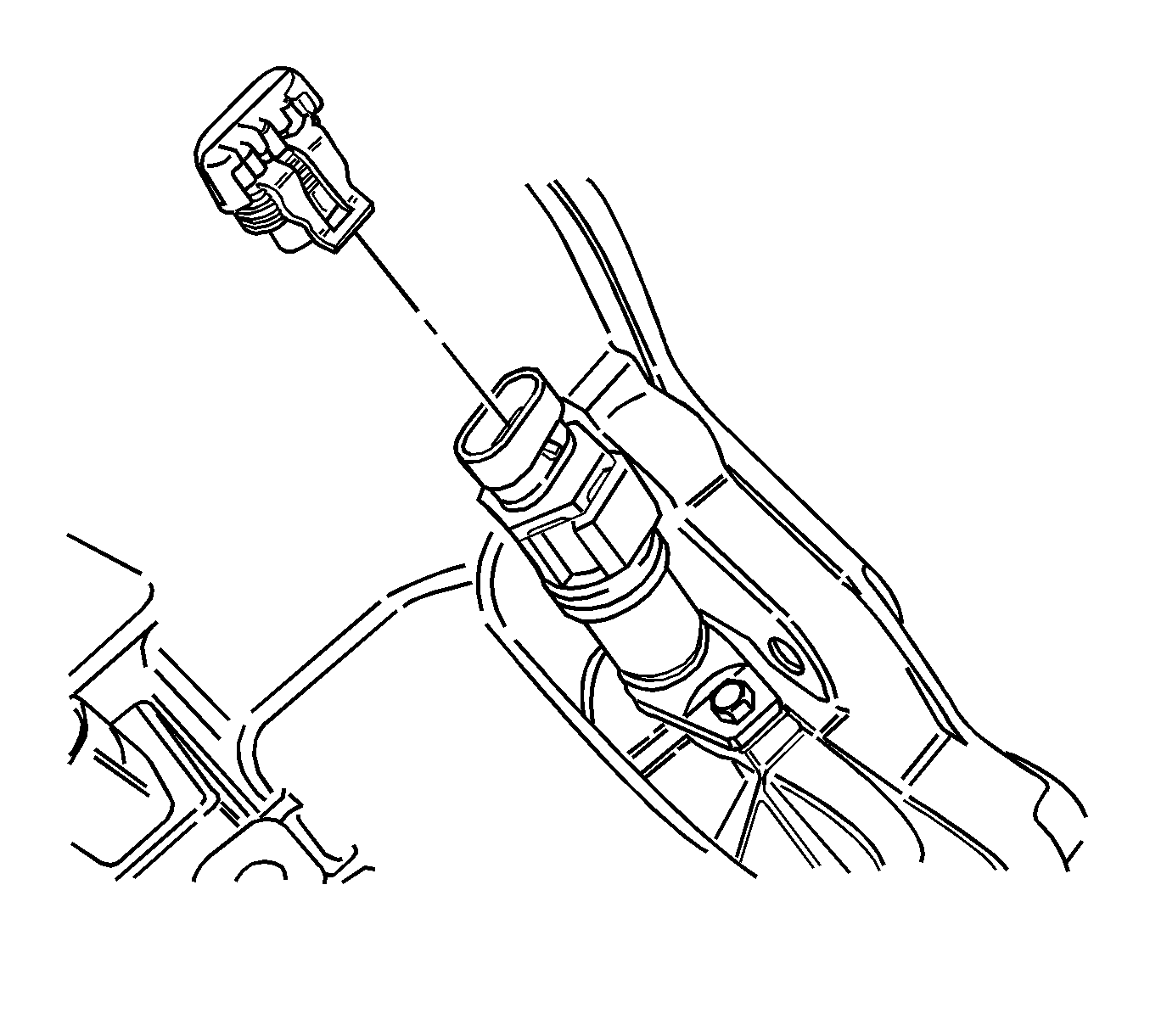

    Fig 1: View Of Speedometer-Driven Gear And Speedometer Housing
    GM1248176Courtesy of GENERAL MOTORS CORP.
  1. Coat the O-ring with petroleum jelly.
  2. Install the speedometer-driven gear and the speedometer housing.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the speedometer housing retaining bolt.

    Tighten:  Tighten the speedometer housing retaining bolt to 4 N.m (35 lb in)  .

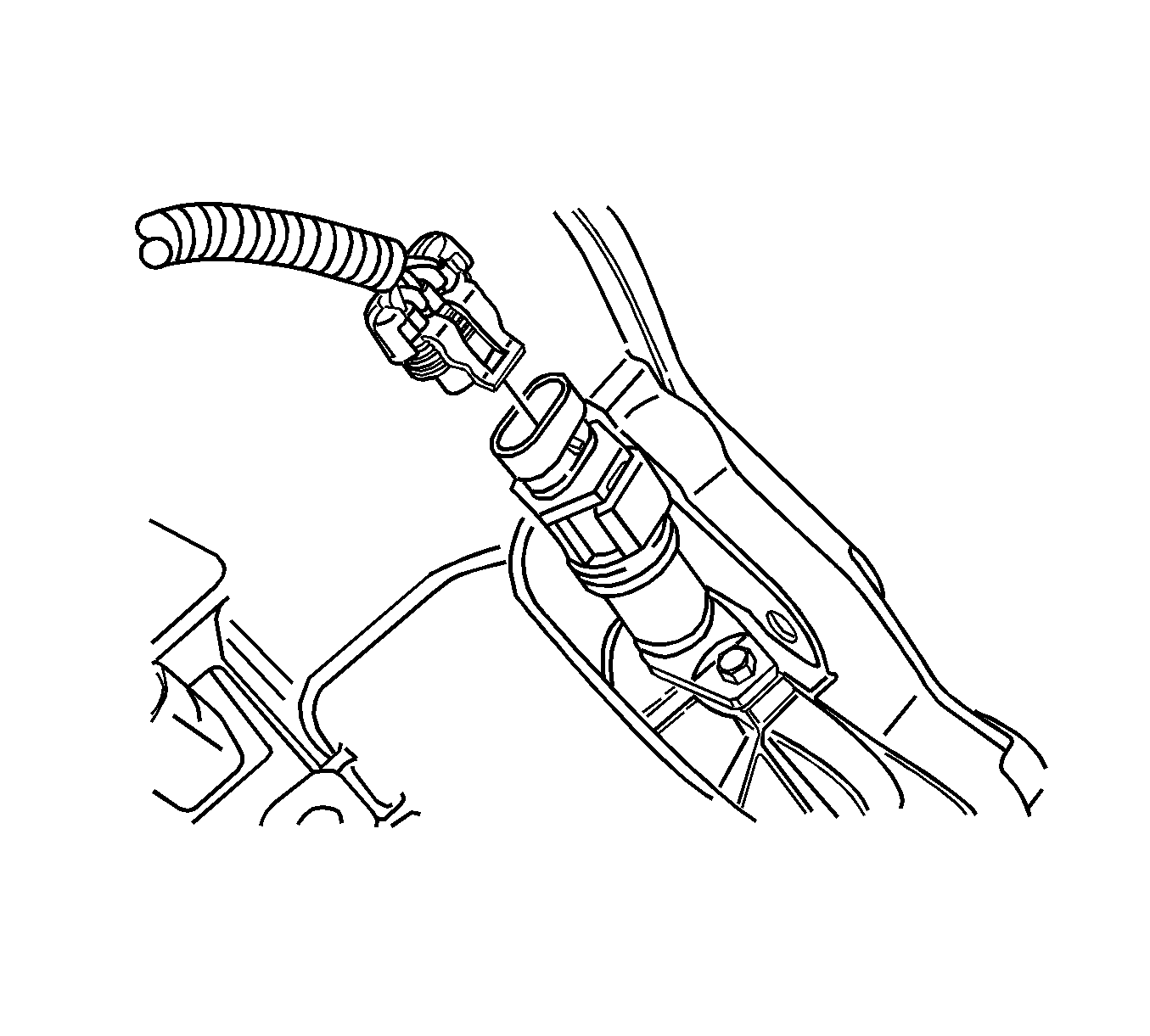

    4. Fig 2: View Of Speedometer Speed Sensor Electrical Connector
    GM1248174Courtesy of GENERAL MOTORS CORP.
  4. Connect the speedometer speed sensor electrical connector.
